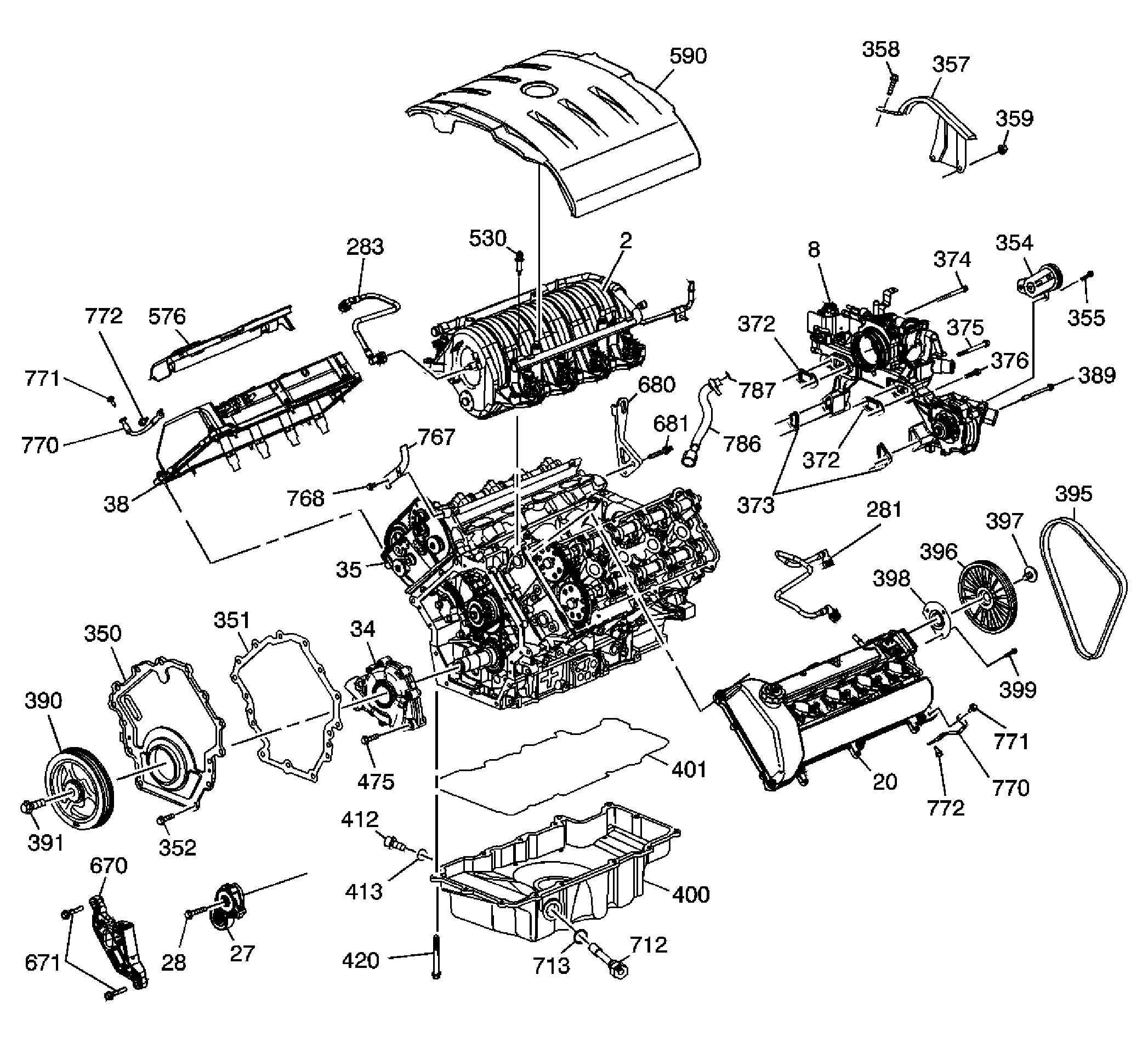

Fig 1: Engine Covers and Component Assemblies (1 of 2)
GM1564055Courtesy of GENERAL MOTORS CORP.
Callout Component Name
2 Intake Manifold Assembly
8 Water Crossover Assembly
20 Left Camshaft Cover Assembly
27 Drive Belt Tensioner
28 Drive Belt Tensioner Bolt
34 Oil Pump Assembly
35 Engine Block Assembly
38 Right Camshaft Cover Assembly
281 Crankcase Ventilation Tube - PCV Fresh Air
283 Crankcase Ventilation Tube - PCV Dirty Air
350 Engine Front Cover
351 Engine Front Cover Gasket
352 Engine Front Cover Bolt
354 Water Pump Drive Belt Tensioner
355 Water Pump Drive Belt Tensioner Bolt
357 Water Pump Drive Belt Shield
358 Water Pump Drive Belt Shield Bolt
359 Water Pump Drive Belt Shield Nut
372 Water Crossover Upper Gasket
372 Water Crossover Upper Gasket
373 Water Crossover Lower Gasket
374 Water Crossover Bolt - Long - 115 mm
375 Water Crossover Bolt - Medium - 92 mm
376 Water Crossover Bolt - Short - 35 mm
389 Water Crossover Bolt - Long - 109 mm
390 Crankshaft Balancer
391 Crankshaft Balancer Bolt
395 Water Pump Drive Belt
396 Water Pump Drive Pulley
397 Water Pump Drive Pulley Cap
398 Camshaft Seal
399 Camshaft Seal Bolt
400 Oil Pan
401 Oil Pan Gasket
412 Oil Pan Drain Plug
413 Oil Pan Drain Plug O-ring
420 Oil Pan Bolt
475 Oil Pan Assembly Bolt
530 Intake Manifold Bolt
576 Ignition Coil Module Assembly Sight Shield
590 Fuel Injector Sight Shield
670 Engine Lift Bracket - Front
671 Engine Lift Bracket Bolt - Front
680 Engine Lift Bracket - Rear
681 Engine Lift Bracket Bolt - Rear
712 Oil Level Sensor
713 Oil Level Sensor O-ring
767 Ground Bracket
768 Ground Bracket Bolt
770 Ground Strap
770 Ground Strap
771 Camshaft Cover Ground Strap Bolt
771 Camshaft Cover Ground Strap Bolt
772 Cylinder Head Ground Strap Bolt
772 Cylinder Head Ground Strap Bolt
786 EGR Valve Inlet Pipe
787 EGR Valve Inlet Bolt

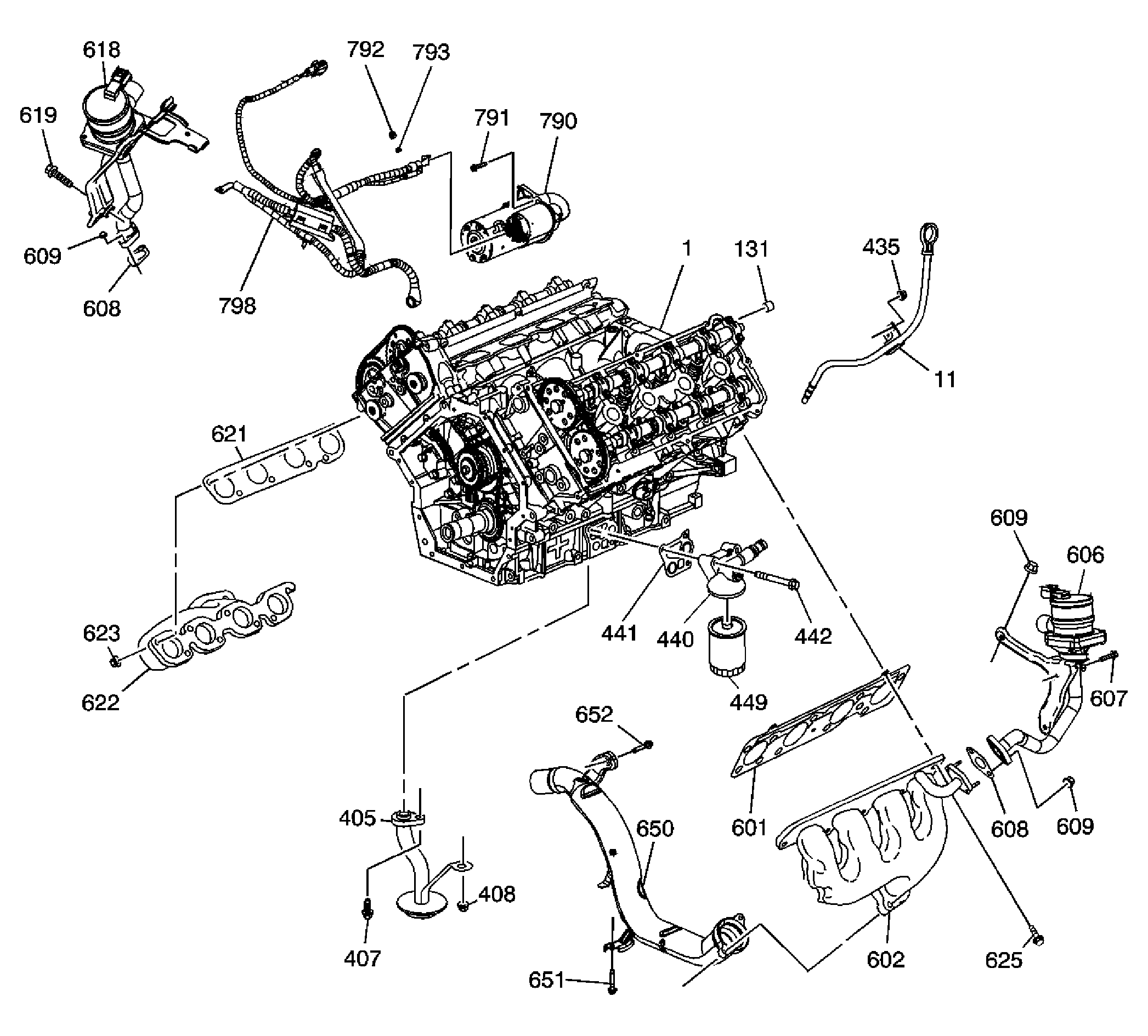

Fig 2: Engine Covers and Component Assemblies (2 of 2)
GM1564056Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Block Assembly
11 Oil Level Indicator and Tube
131 Transaxle Alignment Pin
405 Oil Pump Suction Tube
407 Oil Pump Suction Tube Bolt
408 Oil Pump Suction Tube Nut
435 Oil Level Indicator Tube Nut
440 Oil Filter Adapter Assembly
441 Oil Filter Adapter Assembly Gasket
442 Oil Filter Adapter Assembly Bolt
449 Oil Filter
601 Left Exhaust Manifold Gasket
602 Left Exhaust Manifold
606 Left AIR Control Valve
607 Left AIR Control Valve Bolt
608 Right AIR Control Valve Pipe Gasket
608 Right AIR Control Valve Pipe Gasket
609 Right AIR Control Valve Pipe Nut
609 Right AIR Control Valve Pipe Nut
609 Right AIR Control Valve Pipe Nut
618 Right AIR Control Valve
619 Right AIR Control Valve Bolt
621 Right Exhaust Manifold Gasket
622 Right Exhaust Manifold
623 Right Exhaust Manifold Nut
625 Left Exhaust Manifold Bolt
650 Exhaust Intermediate Pipe
651 Exhaust Intermediate Pipe Bolt - to Oil Pan
652 Exhaust Intermediate Pipe Bolt
790 Starter Motor
791 Starter Motor Bolt
792 Starter Motor Solenoid Cable Nut - Large
793 Starter Motor Solenoid Cable Nut - Small
798 Starter Motor Wiring Harness

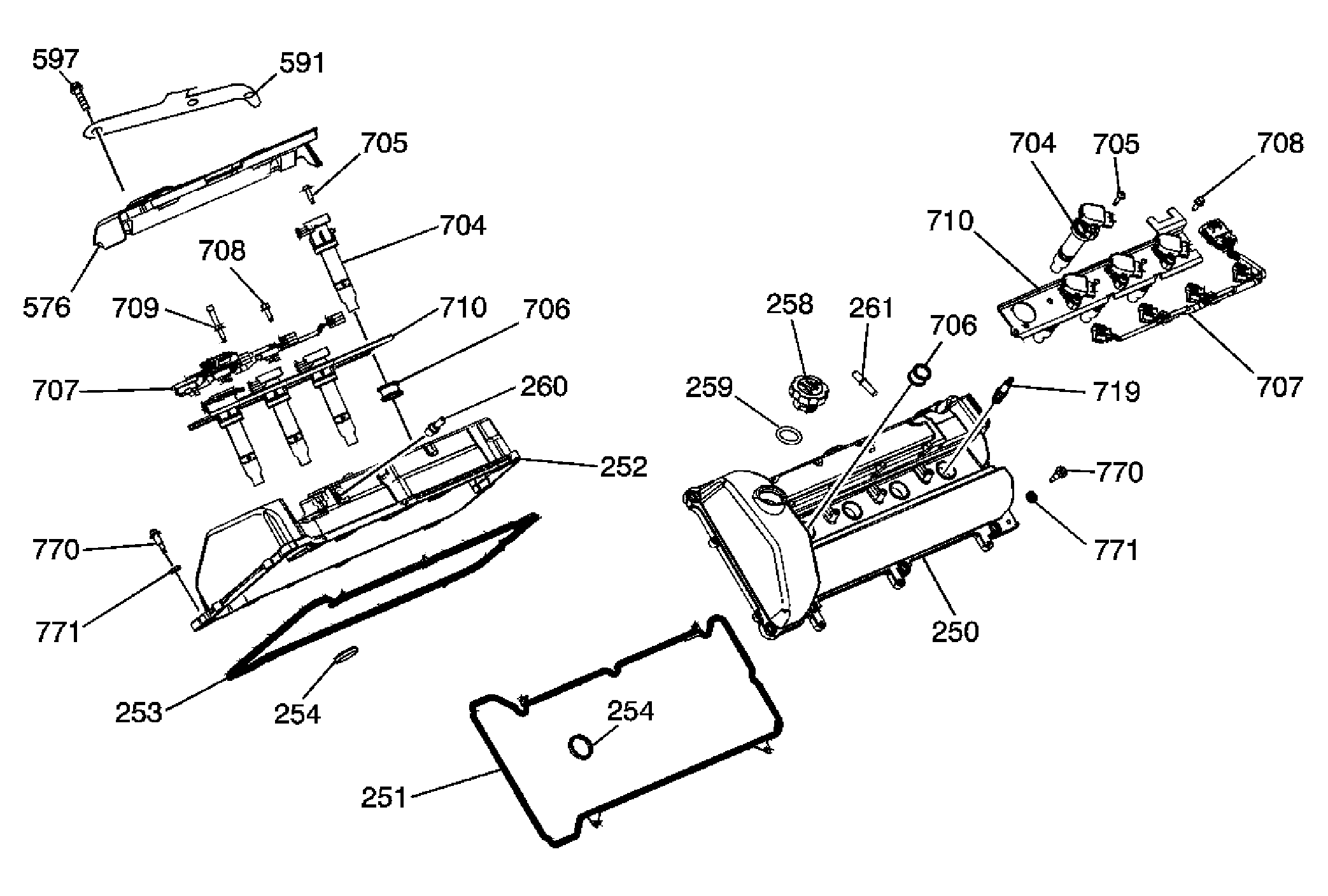

Fig 3: Camshaft Cover Assembly
GM1564059Courtesy of GENERAL MOTORS CORP.
Callout Component Name
250 Left Camshaft Cover
251 Left Camshaft Cover Gasket
252 Right Camshaft Cover
253 Right Camshaft Cover Gasket
254 Spark Plug Port Seal
254 Spark Plug Port Seal
258 Oil Fill Cap
259 Oil Fill Cap O-ring
260 PCV Fitting - Dirty Air
261 PCV Fitting - Fresh Air
576 Ignition Coil Module Assembly Sight Shield
591 Sight Shield Bracket
597 Sight Shield Bracket Bolt
704 Ignition Coil
704 Ignition Coil
705 Ignition Coil Bolt
705 Ignition Coil Bolt
706 Ignition Coil Seal
706 Ignition Coil Seal
707 Ignition Coil Assembly Wiring Harness
707 Ignition Coil Assembly Wiring Harness
708 Ignition Coil Assembly Bolt
708 Ignition Coil Assembly Bolt
709 Ignition Coil Assembly Ball Stud
710 Ignition Coil Assembly Bracket
710 Ignition Coil Assembly Bracket
719 Spark Plug
770 Ground Strap
770 Ground Strap
771 Camshaft Cover Ground Strap Bolt
771 Camshaft Cover Ground Strap Bolt

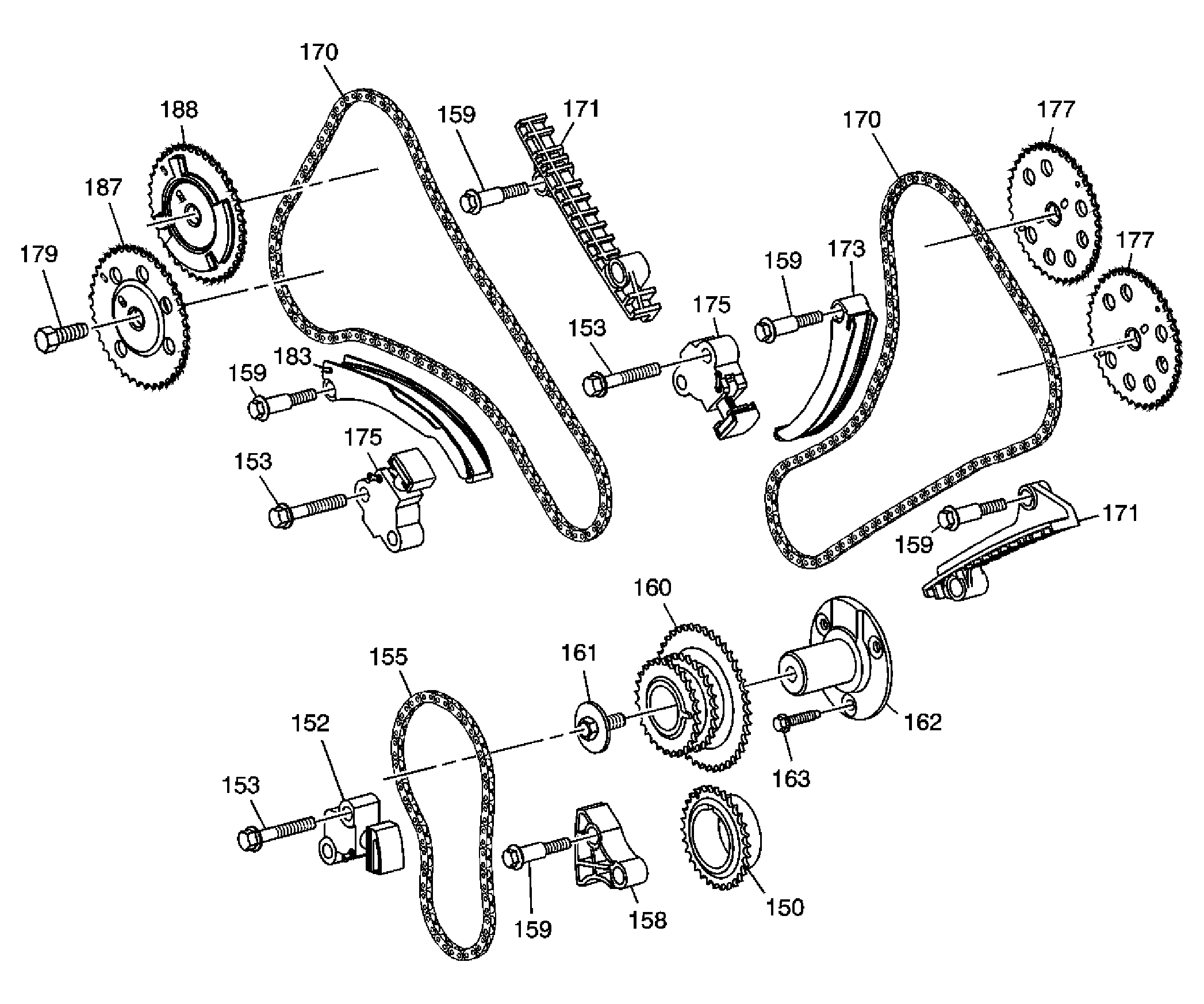

Fig 4: Camshaft Timing Components
GM1564060Courtesy of GENERAL MOTORS CORP.
Callout Component Name
150 Camshaft Sprocket
152 Primary Camshaft Drive Chain Tensioner
153 Camshaft Drive Chain Tensioner Bolt
153 Camshaft Drive Chain Tensioner Bolt
153 Camshaft Drive Chain Tensioner Bolt
155 Primary Camshaft Drive Chain
158 Primary Camshaft Drive Chain Guide
159 Camshaft Drive Chain Guide or Shoe Bolt
159 Camshaft Drive Chain Guide or Shoe Bolt
159 Camshaft Drive Chain Guide or Shoe Bolt
159 Camshaft Drive Chain Guide or Shoe Bolt
159 Camshaft Drive Chain Guide or Shoe Bolt
160 Camshaft Intermediate Drive Shaft Sprocket
161 Camshaft Intermediate Drive Shaft Sprocket Bolt
162 Camshaft Intermediate Drive Shaft
163 Camshaft Intermediate Drive Shaft Bolt
170 Secondary Camshaft Drive Chain
170 Secondary Camshaft Drive Chain
171 Secondary Camshaft Drive Chain Guide
171 Secondary Camshaft Drive Chain Guide
173 Left Secondary Camshaft Drive Chain Shoe
175 Secondary Camshaft Drive Chain Tensioner
175 Secondary Camshaft Drive Chain Tensioner
177 Left Camshaft Sprocket
177 Left Camshaft Sprocket
179 Camshaft Sprocket Bolt
183 Right Secondary Camshaft Drive Chain Shoe
187 Right Exhaust Camshaft Sprocket
188 Right Intake Camshaft Sprocket

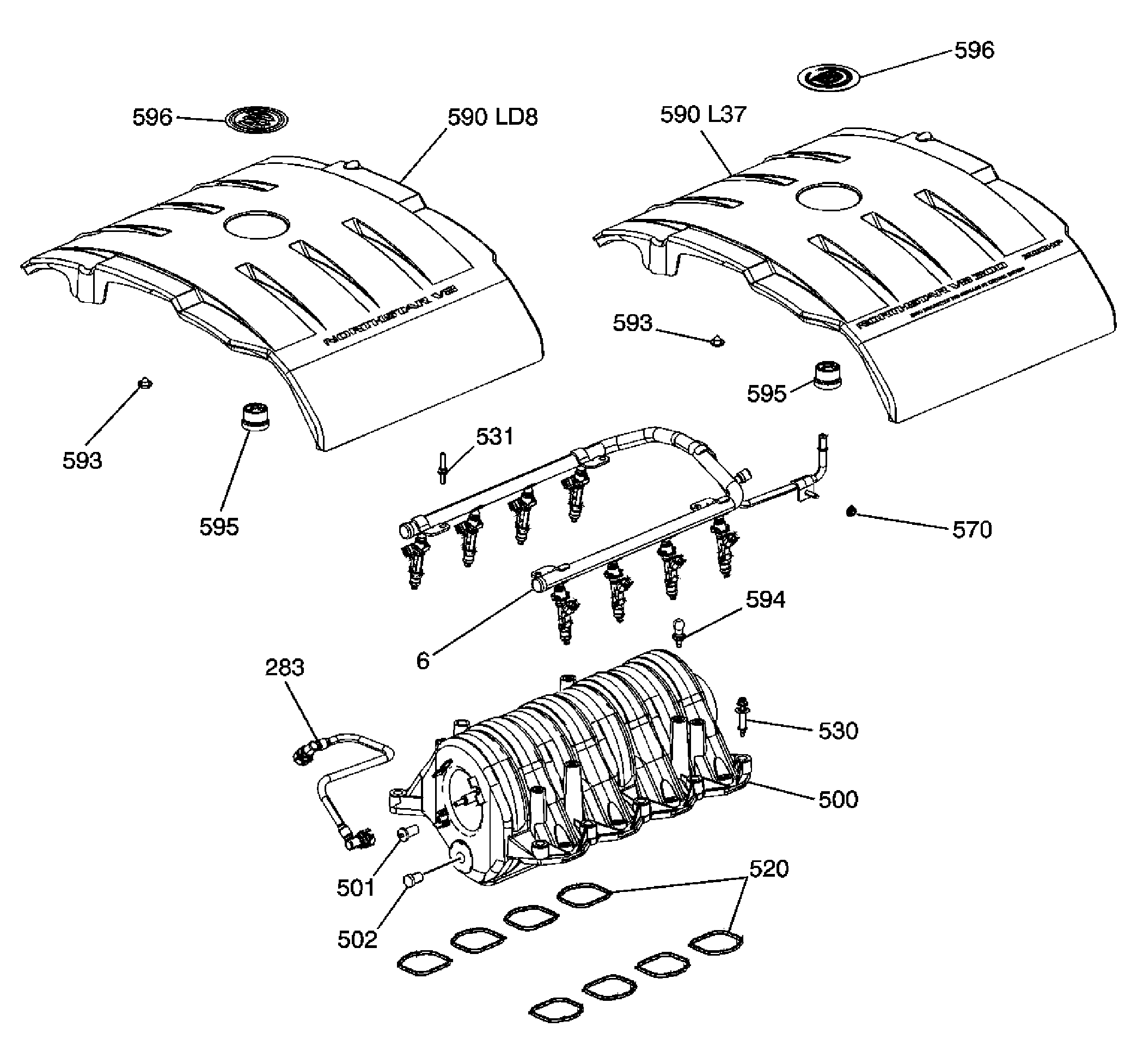

Fig 5: Intake Manifold
GM1564064Courtesy of GENERAL MOTORS CORP.
Callout Component Name
6 Fuel Injector Rail
283 PCV Air Tube
500 Intake Manifold
501 Intake Manifold Vacuum Plug Cap
502 Intake Manifold Power Brake Vacuum Source Hole Fitting
520 Intake Manifold Seal
530 Intake Manifold Bolt
531 Fuel Injector Rail Bolts
570 Fuel Rail Nut
590 ld8 Upper Intake Manifold Sight Shield - LD8
590 l37 Upper Intake Manifold Sight Shield - L37
593 Fuel Injector Sight Shield
593 Fuel Injector Sight Shield
594 Fuel Injector Sight Shield Cover Ball Stud
595 Fuel Injector Sight Shield Cover Ball Stud
595 Fuel Injector Sight Shield Cover Ball Stud
596 Intake Manifold Sight Shield Emblem
596 Intake Manifold Sight Shield Emblem

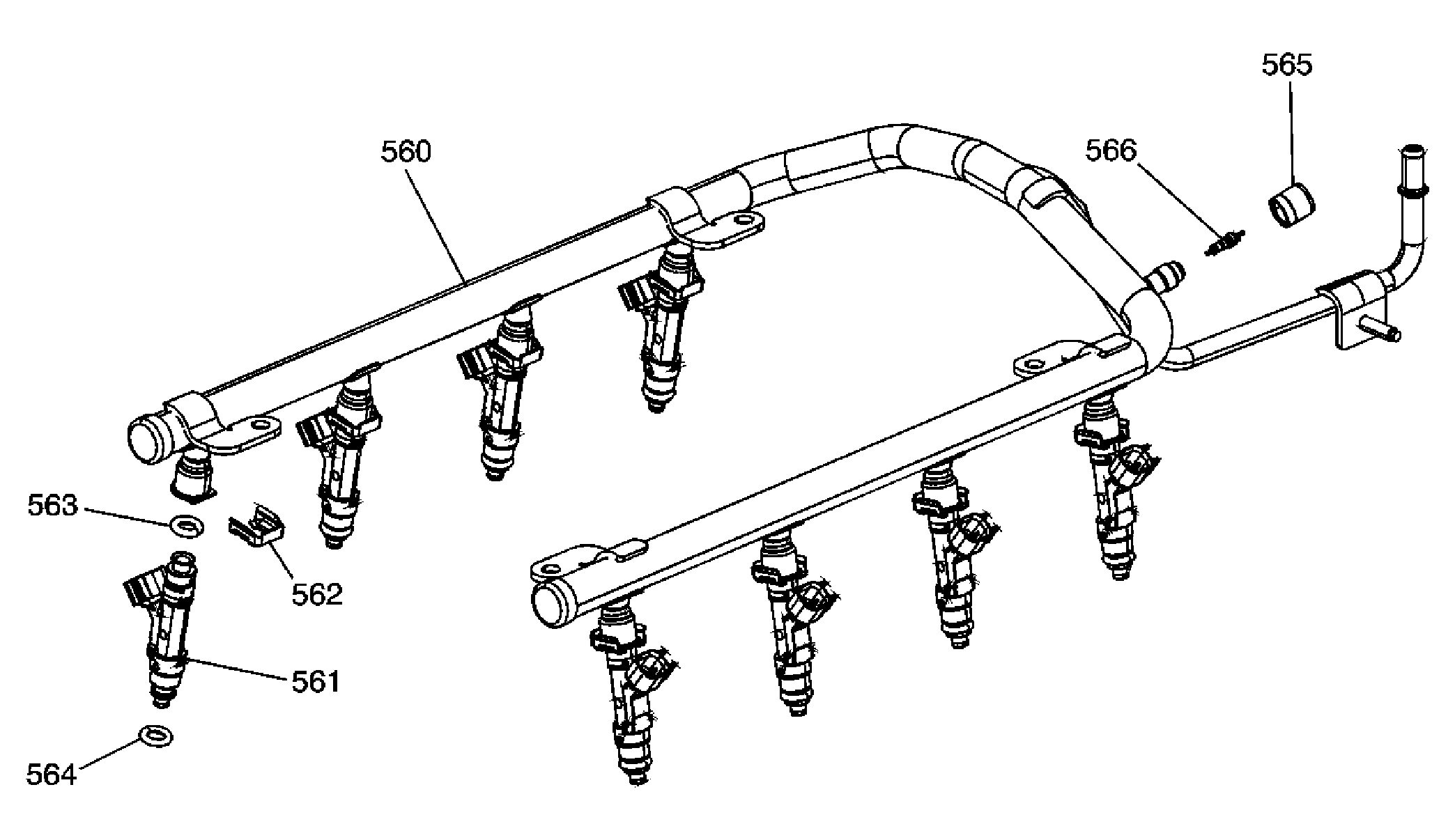

Fig 6: Fuel Rail
GM1564068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
560 Fuel Rail
561 Fuel Injector
562 Fuel Injector Clip
563 Upper Fuel Injector O-ring
564 Lower Fuel Injector O-ring
565 Fuel Pressure Service Valve Cap
566 Fuel Pressure Service Valve

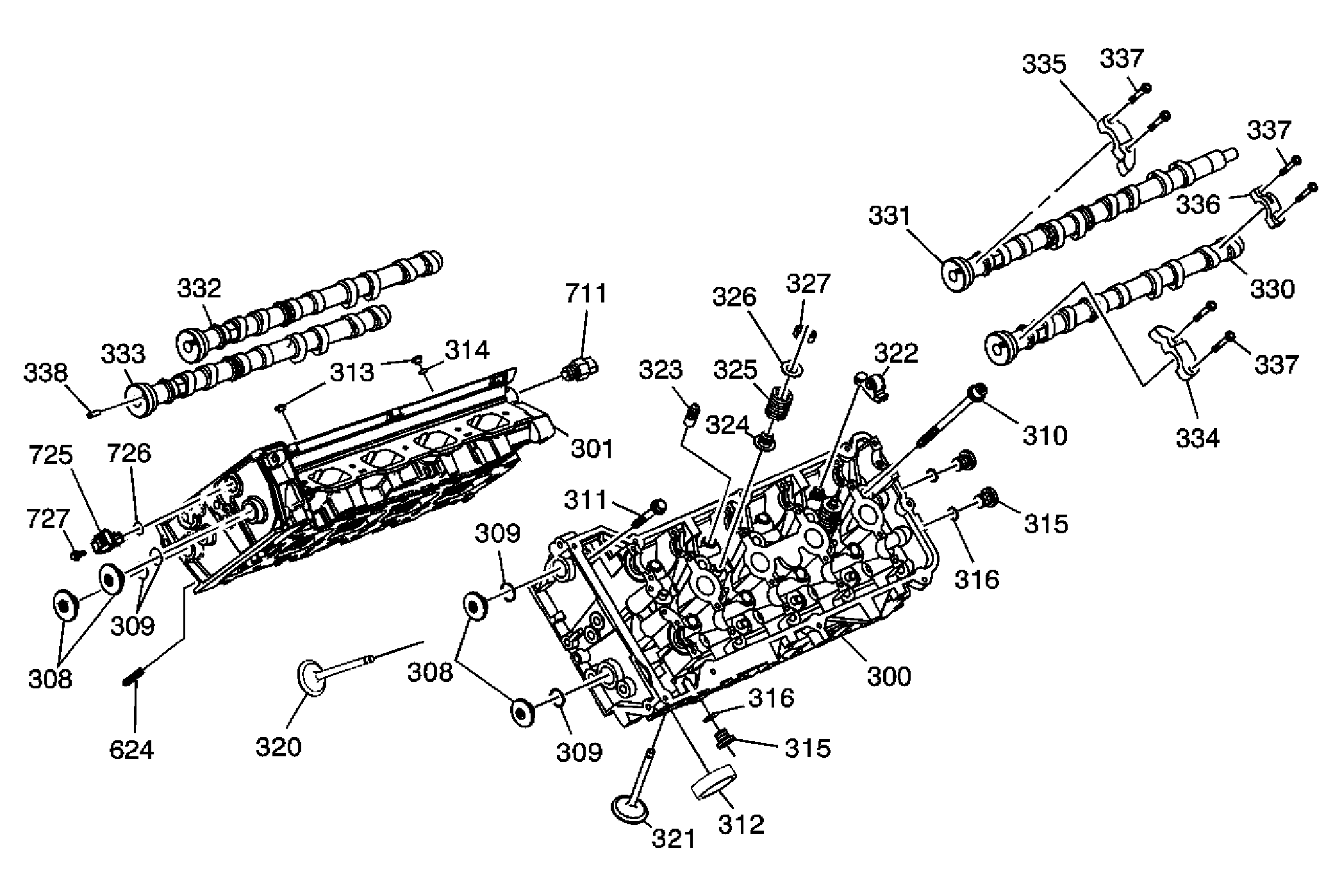

Fig 7: Cylinder Head Assemblies
GM1564071Courtesy of GENERAL MOTORS CORP.
Callout Component Name
300 Left Cylinder Head
301 Right Cylinder Head
308 Cylinder Head Core Hole Plug
308 Cylinder Head Core Hole Plug
309 Cylinder Head Core Hole Plug O-ring
309 Cylinder Head Core Hole Plug O-ring
309 Cylinder Head Core Hole Plug O-ring
310 Cylinder Head Bolt (M11)
311 Cylinder Head Bolt (M6)
312 Cylinder Head Coolant Hole Expansion Plug
313 Cylinder Head Coolant Hole Threaded Plug
314 Cylinder Head Coolant Hole Plug Seal Ring
315 Cylinder Head Oil Gallery Threaded Plug
315 Cylinder Head Oil Gallery Threaded Plug
316 Cylinder Head Oil Gallery Plug Ring
316 Cylinder Head Oil Gallery Plug Ring
320 Exhaust Valve
321 Intake Valve
322 Follower - Rocker Arm
323 Stationary Hydraulic Lifter Adjuster (SHLA)
324 Valve Stem Oil Seal
325 Valve Spring
326 Valve Spring Retainer
327 Valve Lock Keepers
330 Left Exhaust Camshaft
331 Left Intake Camshaft
332 Right Intake Camshaft
333 Right Exhaust Camshaft
334 Exhaust Camshaft Thrust Bearing Cap
335 Intake Camshaft Thrust Bearing Cap
336 Camshaft Bearing Cap
337 Camshaft Bearing Cap Bolt
337 Camshaft Bearing Cap Bolt
337 Camshaft Bearing Cap Bolt
338 Camshaft Sprocket Locating Pin
624 Cylinder Head Exhaust Manifold Stud
711 ECT Sensor
725 Camshaft Position Sensor
726 Camshaft Position Sensor O-ring
727 Camshaft Position Sensor Bolt

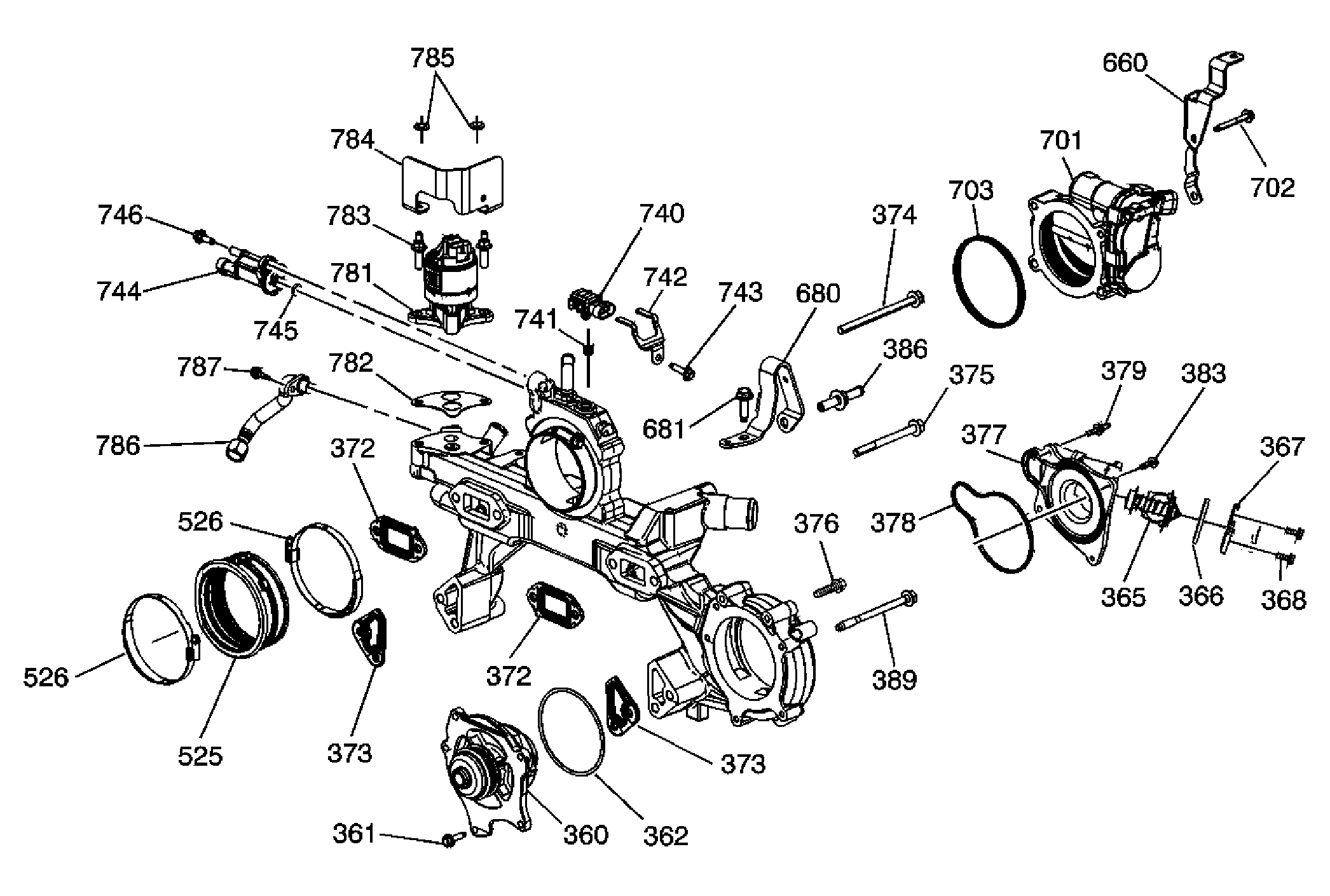

Fig 8: Water Crossover and Throttle Body Assembly
GM1564072Courtesy of GENERAL MOTORS CORP.
Callout Component Name
360 Water Pump
361 Water Pump Bolt
362 Water Pump O-ring
365 Thermostat
366 Thermostat O-ring
367 Thermostat Housing
368 Thermostat Housing Bolt
372 Water Crossover Upper Gasket
372 Water Crossover Upper Gasket
373 Water Crossover Lower Gasket
373 Water Crossover Lower Gasket
374 Water Crossover Bolt - Long - 115 mm
375 Water Crossover Bolt - Medium - 92 mm
376 Water Crossover Bolt - Short - 35 mm
377 Water Pump Cover
378 Water Pump Cover Gasket
379 Water Pump Cover Stud
383 Water Pump Cover Bolt
386 Engine Coolant Fitting
389 Water Crossover Bolt - Long - 109 mm
525 Plenum Duct
526 Plenum Duct Clamp
526 Plenum Duct Clamp
660 Automatic Transmission Range Selector Lever Cable Clip Bracket
680 Engine Lift Bracket
681 Engine Lift Bracket Bolt
701 Throttle Body
702 Throttle Body Bolt
703 Throttle Body Gasket
740 MAP Sensor
741 MAP Sensor Seal
742 MAP Sensor Bracket
743 MAP Sensor Bracket Bolt
744 EVAP Purge Solenoid
745 EVAP Purge Solenoid O-ring
746 EVAP Purge Solenoid Bolt
781 EGR Valve
782 EGR Valve Gasket
783 EGR Valve Bolt
784 EGR Valve Heat Shield
785 EGR Valve Heat Shield Nut
786 EGR Valve Inlet Pipe
787 EGR Valve Inlet Pipe Bolt

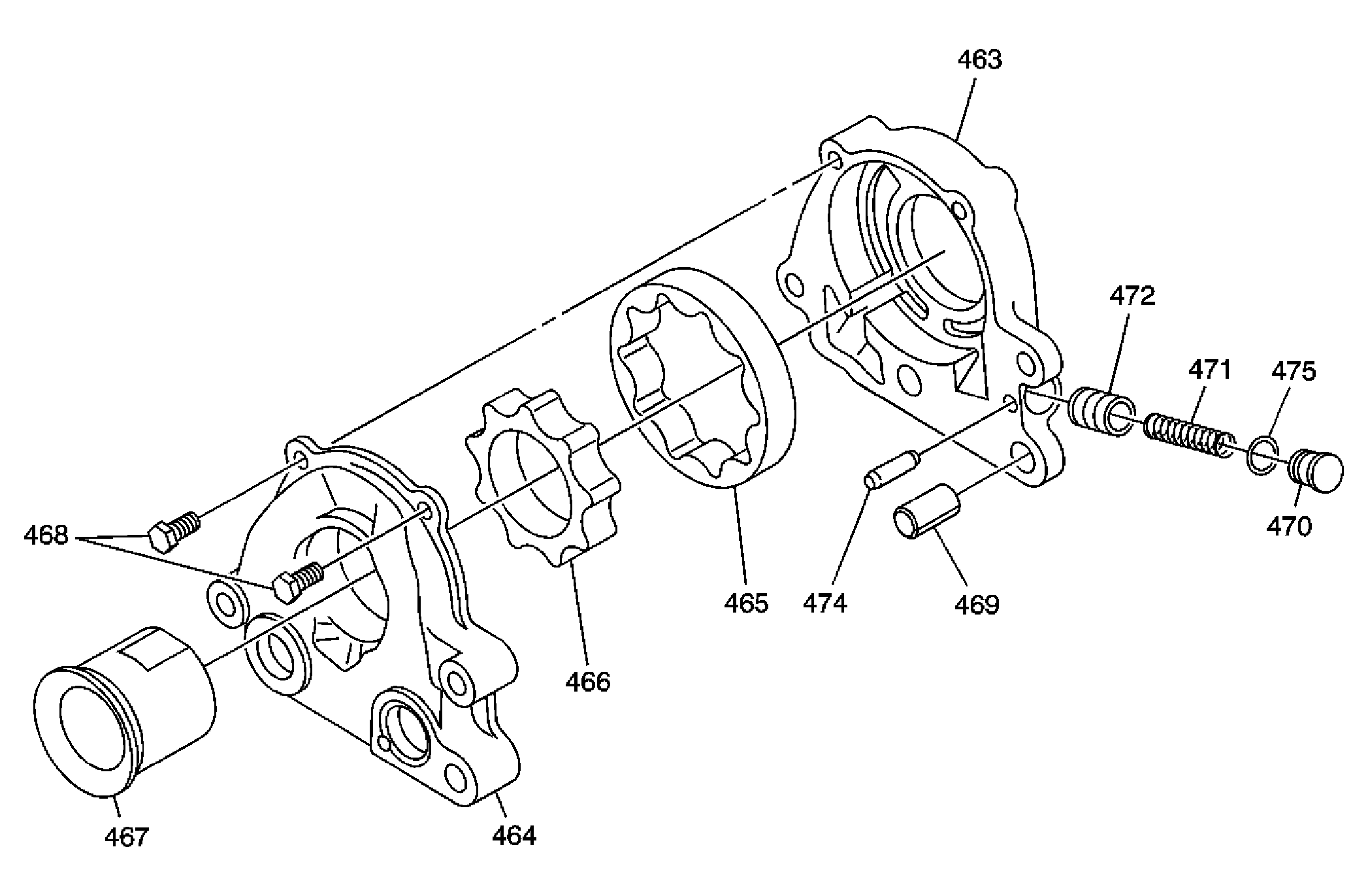

Fig 9: Oil Pump Disassembled View
GM911058Courtesy of GENERAL MOTORS CORP.
Callout Component Name
463 Oil Pump Housing
464 Oil Pump Cover
465 Oil Pump Driven Rotor
466 Oil Pump Drive Rotor
467 Oil Pump Drive Spacer
468 Oil Pump Cover Bolts
469 Oil Pump Alignment Pin
470 Oil Pump Pressure Relief Valve Cap
471 Oil Pump Spring
472 Oil Pump Plunger
474 Oil Pump Pressure Relief Valve Cap Retaining Pin
475 Oil Pump Pressure Relief Valve Cap O-Ring

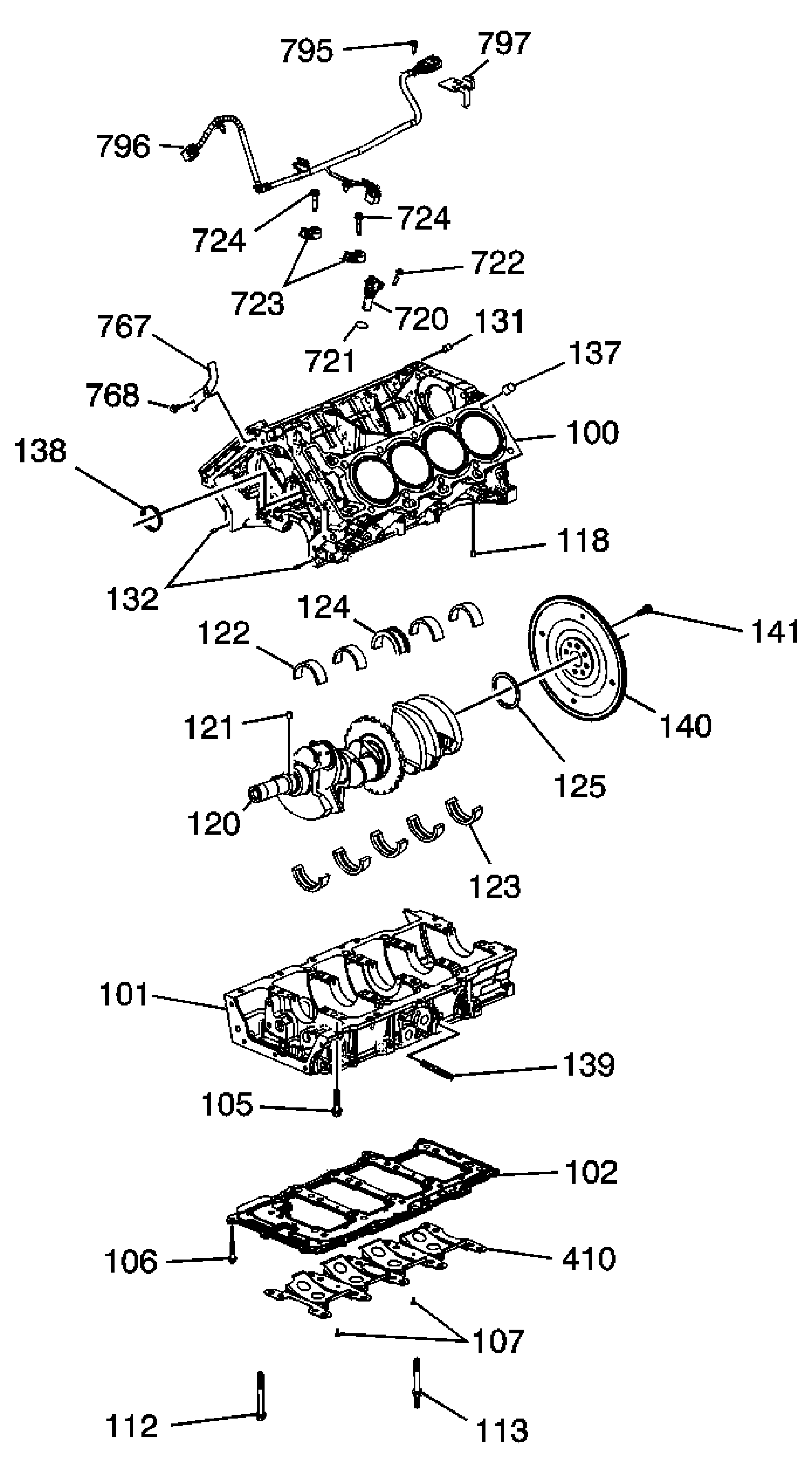

Fig 10: Engine Block Assembly
GM1564074Courtesy of GENERAL MOTORS CORP.
Callout Component Name
100 Engine Block
101 Lower Crankcase
102 Engine Oil Manifold
105 Lower Crankcase Perimeter Bolt
106 Engine Oil Manifold Bolt
107 Oil Pan Baffle Stud
112 Lower Crankcase Bolt
113 Lower Crankcase Stud - Oil Pump Suction Pipe
118 Lower Crankcase-to-Engine Block Pin
120 Crankshaft
121 Crankshaft Pin
122 Crankshaft Upper Bearing
123 Crankshaft Lower Bearing
124 Crankshaft Upper Thrust Bearing #3
125 Crankshaft Rear Oil Seal
131 Engine Block Dowel Pins
132 Engine Front Cover-to-Engine Block Pin
137 Cylinder Head Dowel Pins
138 Camshaft Plug - Intermediate Driveshaft
139 Lower Crankcase Stud
140 Engine Flywheel
141 Engine Flywheel Bolt
410 Oil Pan Baffle
720 Crankshaft Position Sensor
721 Crankshaft Position Sensor O-ring
722 Crankshaft Position Sensor Bolt
723 Knock Sensor
724 Knock Sensor Bolt
724 Knock Sensor Bolt
767 Jump Start Ground Bracket
768 Jump Start Ground Bracket Bolt
795 Crankshaft Position Sensor and Knock Sensor Wiring Harness Bracket Bolt
796 Crankshaft Position Sensor and Knock Sensor Wiring Harness
797 Crankshaft Position Sensor and Knock Sensor Wiring Harness Bracket

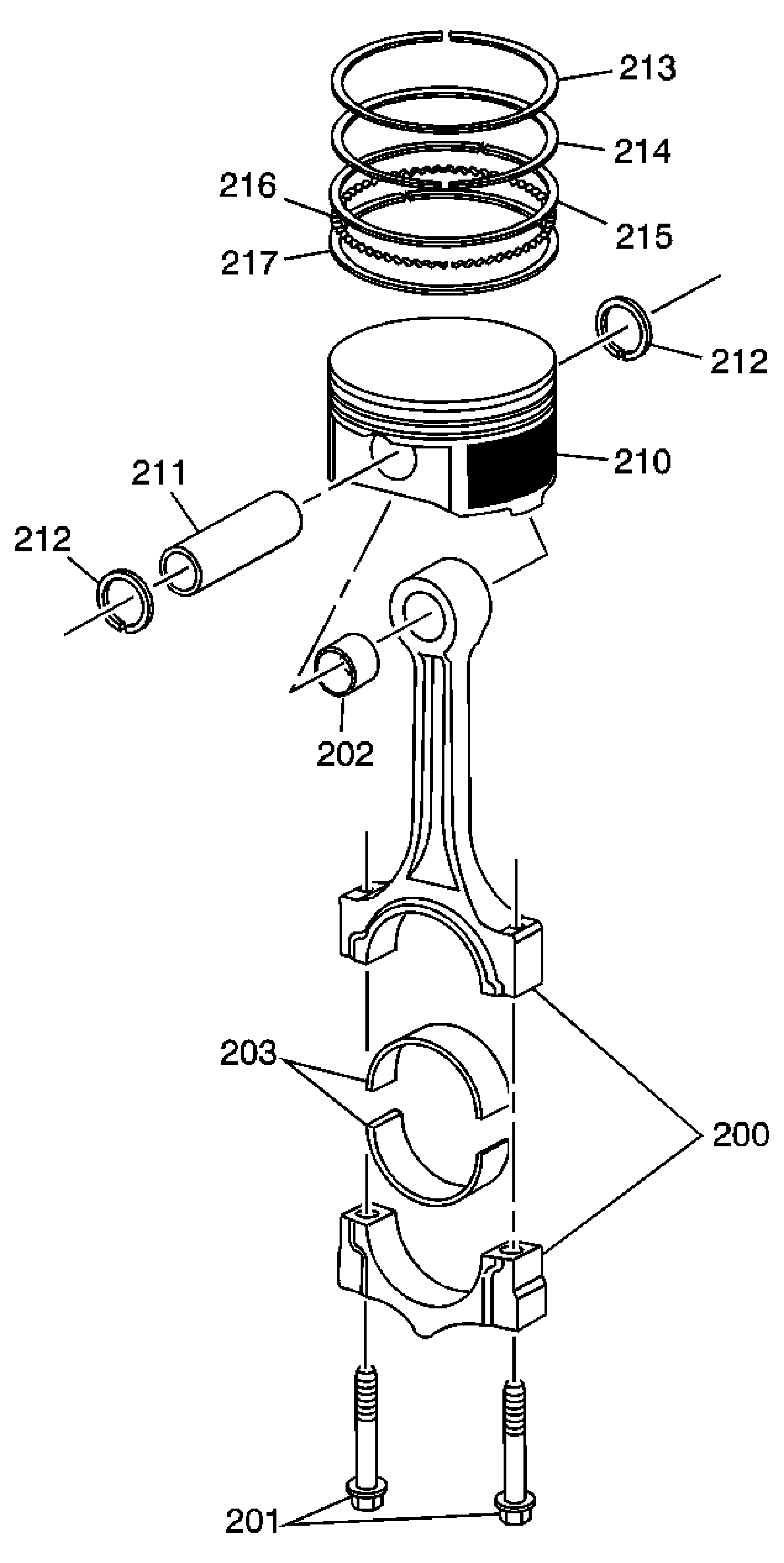

Fig 11: Piston, Rings, Bearing and Connecting Rod Disassembled View
GM911074Courtesy of GENERAL MOTORS CORP.
Callout Component Name
200 Connecting Rod
201 Connecting Rod Bolt
202 Connecting Rod Piston Pin Bushing
203 Connecting Rod Bearing
210 Piston
211 Piston Pin
212 Piston Pin Retainer
212 Piston Pin Retainer
213 Upper Compression Ring
214 Lower Compression Ring
215 Upper Oil Control Ring
216 Oil Control Ring Expander
217 Lower Oil Control Ring
Fig 12: Oil Filter Adapter Disassembled View
GM911077Courtesy of GENERAL MOTORS CORP.
Callout Component Name
440 Oil Filter Adapter
441 Oil Filter Adapter Gasket
442 Oil Filter Adapter Bolt
445 Oil Filter Fitting
446 Oil Filter Bypass Valve
449 Oil Filter
457 Bypass Hole Plug
715 Oil Pressure Switch
716 Oil Pressure Switch O-ring
Fig 13: Oil Filter Adapter with Oil Cooler Disassembled View
GM911080Courtesy of GENERAL MOTORS CORP.
Callout Component Name
440 Oil Filter Adapter
441 Oil Filter Adapter Gasket
442 Oil Filter Adapter Bolt
445 Oil Filter Fitting
446 Oil Filter Bypass Valve
449 Oil Filter
452 Oil Cooler Bypass Valve
453 Oil Cooler Bypass Valve Plug O-ring
454 Oil Cooler Bypass Valve Plug
455 Oil Cooler Pipe Fitting
455 Oil Cooler Pipe Fitting
715 Oil Pressure Switch
716 Oil Pressure Switch O-ring
scientia non olet · About LEMON Manuals
