Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

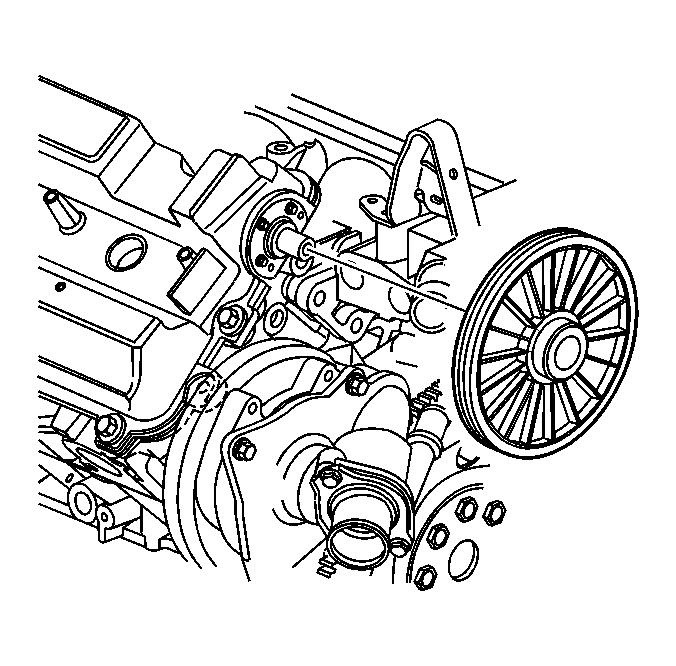

Fig 1: View of Water Pump Drive Pulley

Courtesy of GENERAL MOTORS CORP.

Place the water pump drive pulley in position on the intake camshaft.

Fig 2: View of J 38823 Installing Water Pump Pulley

Courtesy of GENERAL MOTORS CORP.

Install the water pump pulley onto the intake camshaft using the J 38823 . See Special Tools . During installation, the tool will bottom out on the camshaft at the proper depth.

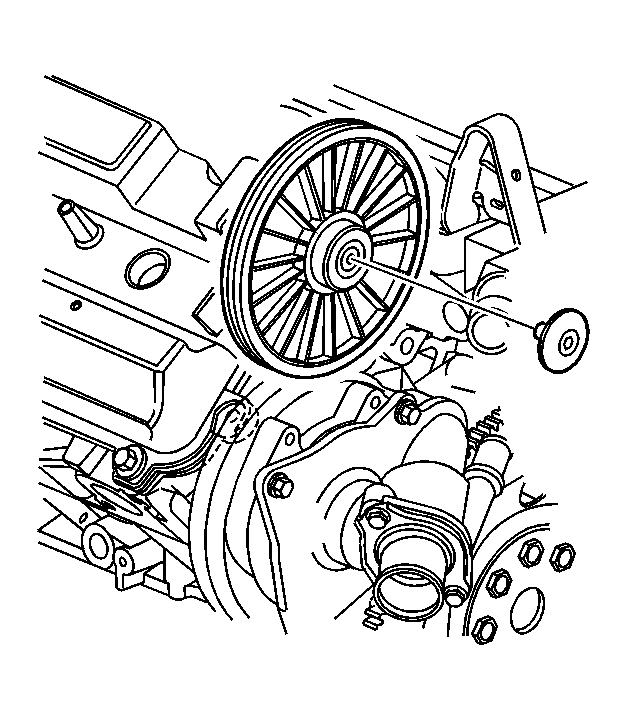

Fig 3: Identifying Intake Camshaft End Cap

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the camshaft end cap.
Tighten: Tighten the cap to 2 N.m (18 lb in).
Install the water pump drive belt. Refer to Water Pump Belt Replacement .
