Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

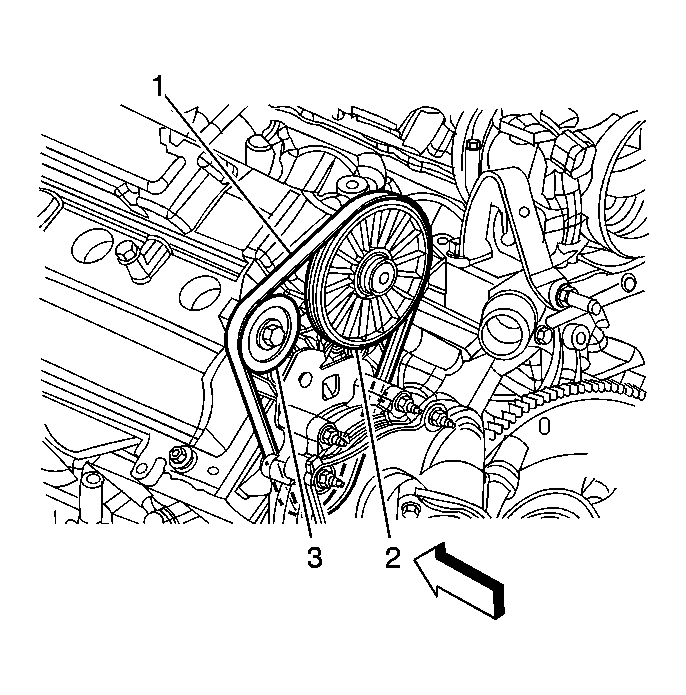

    Fig 1: Removing/Installing Water Pump Drive Belt
    GM1667179Courtesy of GENERAL MOTORS CORP.
  1. Route the water pump drive belt (1) around the water pump pulley and the water pump drive pulley (3).
  2. Install the water pump drive belt tensioner. Refer to Water Pump Drive Belt Tensioner Replacement .
  3. Check the drive belt for proper seating in all the pulley grooves.
