Radiator Surge Tank Outlet Hose/Pipe Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

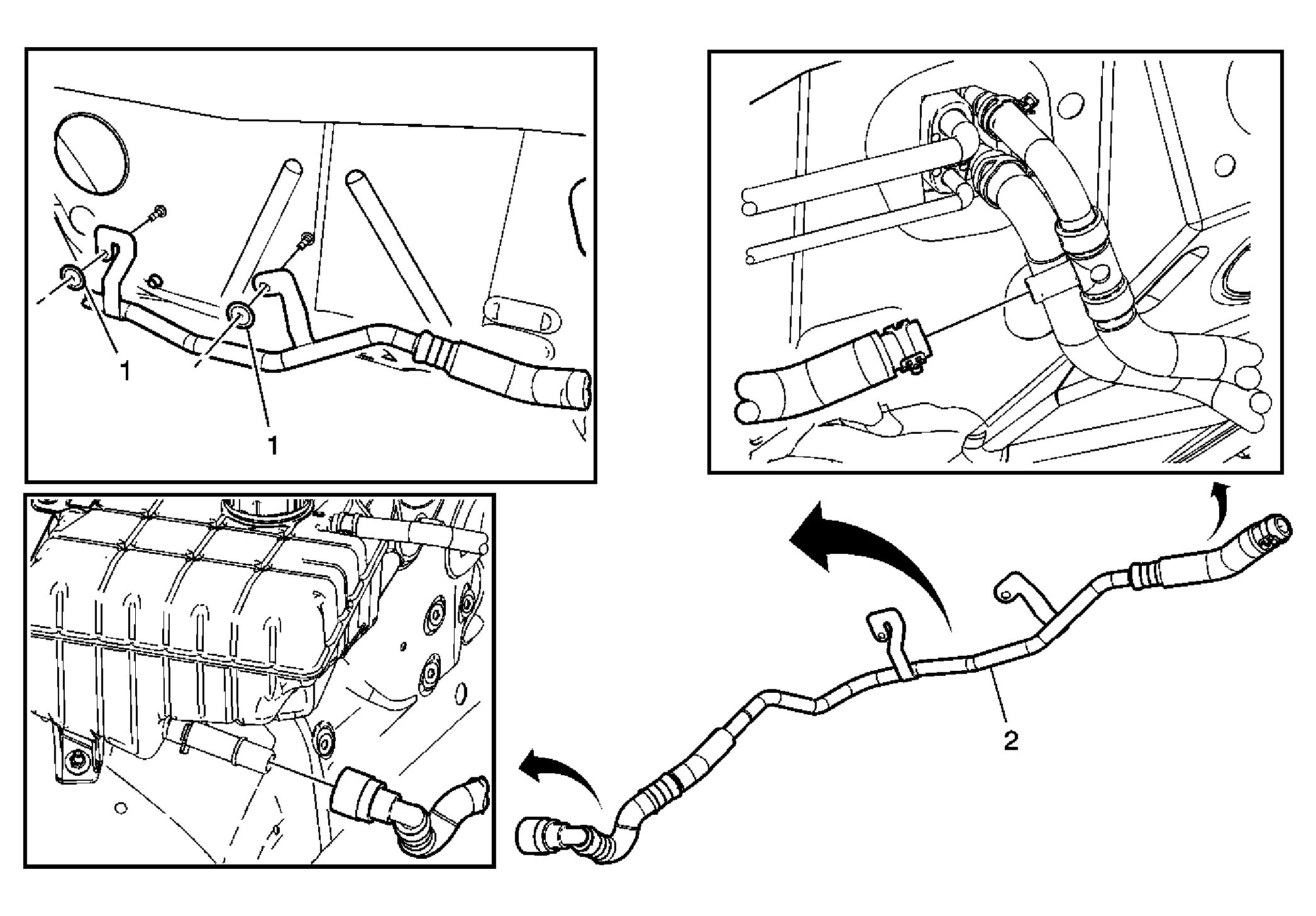

Fig 1: Radiator Surge Tank Hose/Pipe Replacement - Outlet

Courtesy of GENERAL MOTORS CORP.

Radiator Surge Tank Hose/Pipe Replacement - Outlet

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure IMPORTANT: Drain only the fluid from the radiator surge tank. Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) . Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement . Remove the surge tank. Refer to Surge Tank Replacement .
1	Radiator Surge Tank Outlet Pipe Nuts (Qty: 2) Tip: Using J 47622, position the surge tank hose clamp aside and remove the surge tank hose from the heater hose.
2	Radiator Surge Tank Outlet Pipe Assembly

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

IMPORTANT: Drain only the fluid from the radiator surge tank.

Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) .
Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
Remove the surge tank. Refer to Surge Tank Replacement .

Radiator Surge Tank Outlet Pipe Nuts (Qty: 2)
Tip: Using J 47622, position the surge tank hose clamp aside and remove the surge tank hose from the heater hose.

Radiator Surge Tank Outlet Pipe Assembly
