Radiator Outlet Hose Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

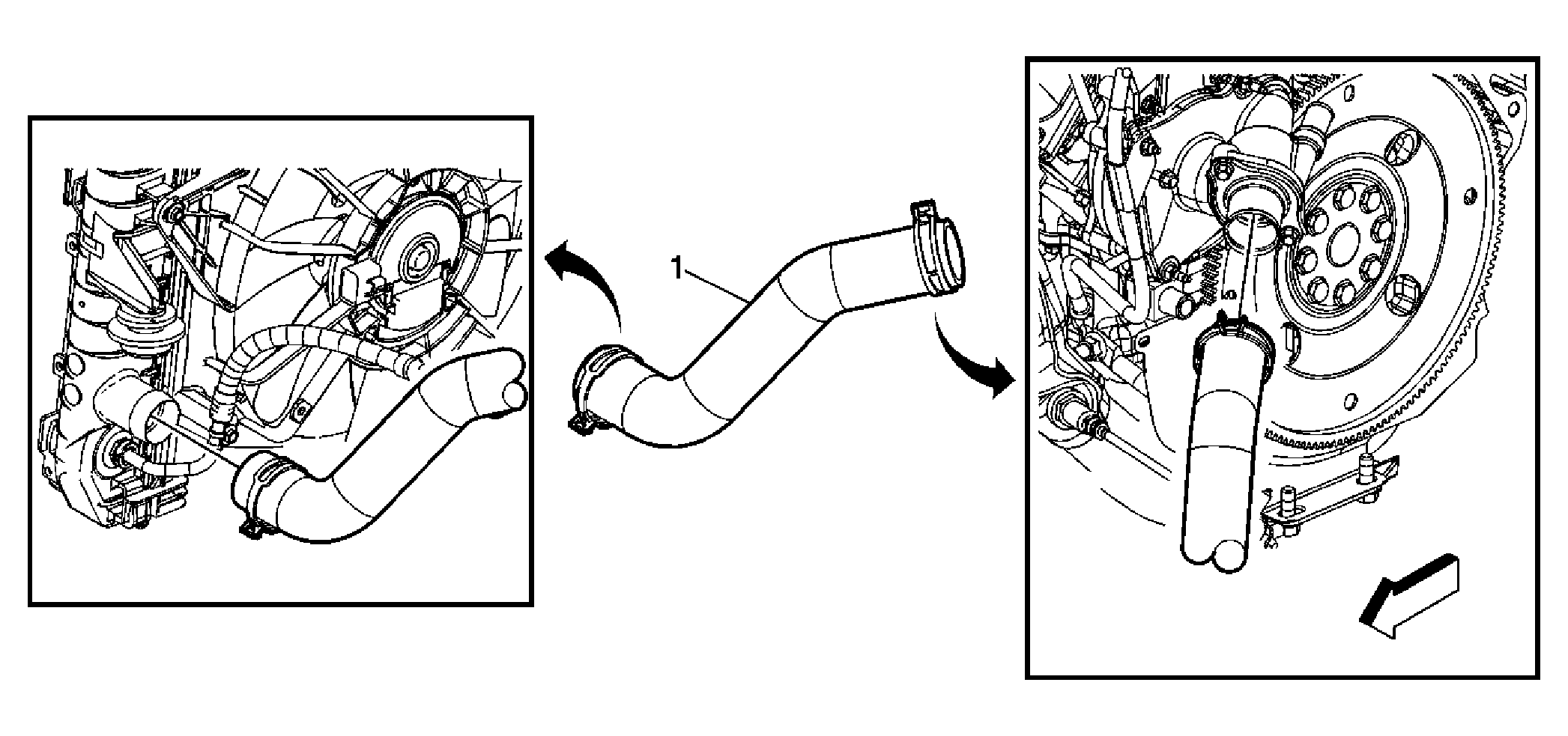

Fig 1: Radiator Hose Replacement - Outlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Radiator Outlet Hose Tip: Using J 38185 , position the radiator outlet hose clamp aside and remove the hose from the engine. See Special Tools .

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) .
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

Radiator Outlet Hose
Tip: Using J 38185 , position the radiator outlet hose clamp aside and remove the hose from the engine. See Special Tools .
