Radiator Inlet Hose Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

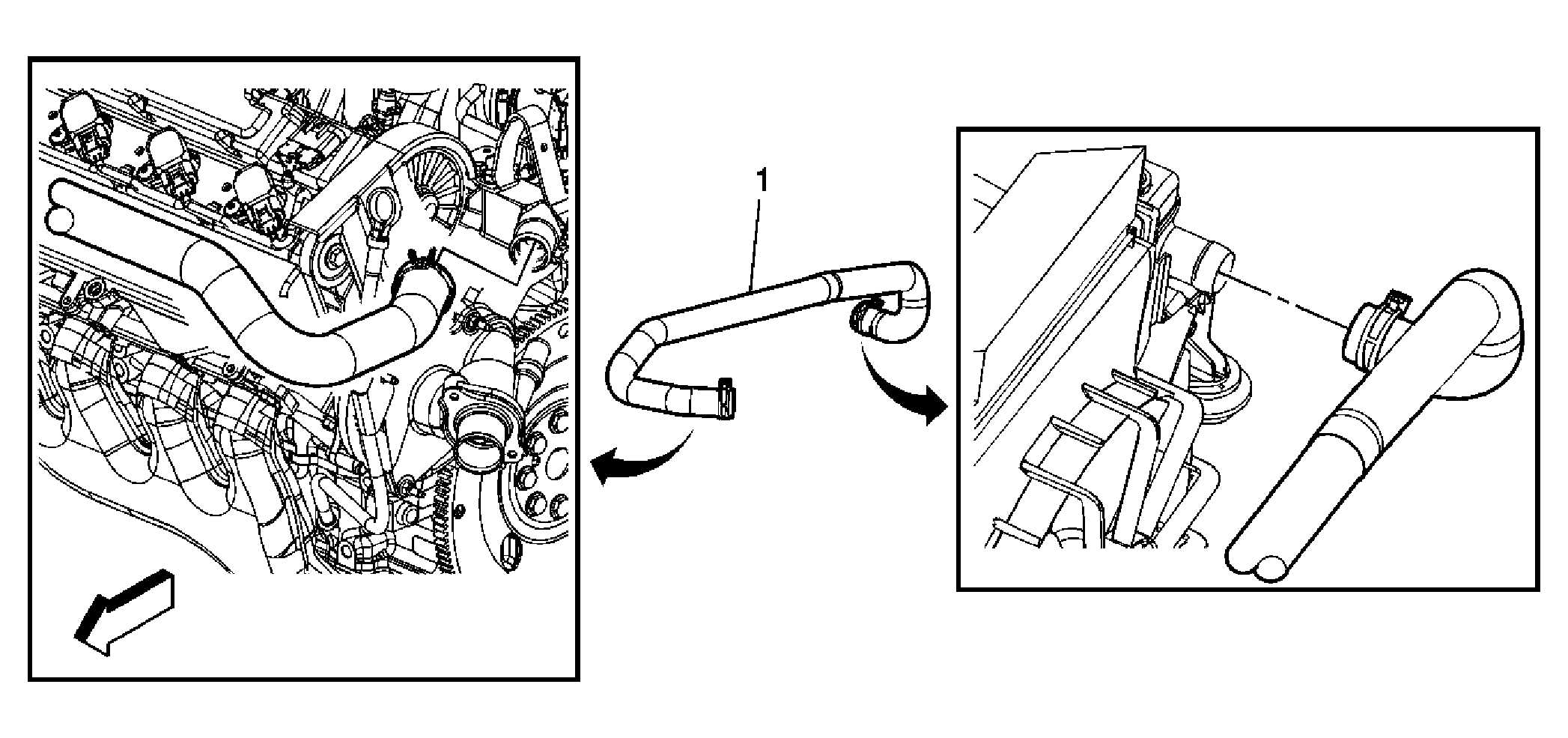

Fig 1: Radiator Hose Replacement - Inlet

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the upper radiator air deflector. IMPORTANT: Drain only the fluid from the radiator surge tank. Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) .
1	Radiator Inlet Hose Tip: Using J 38185 , position the radiator inlet hose clamps aside and remove the hose from the radiator and engine. See Special Tools .

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the upper radiator air deflector.

IMPORTANT: Drain only the fluid from the radiator surge tank.

Drain the cooling system. Refer to Draining and Filling Cooling System (Static Fill) or Draining and Filling Cooling System (Vac-N-Fill) .

Radiator Inlet Hose
Tip: Using J 38185 , position the radiator inlet hose clamps aside and remove the hose from the radiator and engine. See Special Tools .
