Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Note the routing of the engine oil cooler lines to ensure proper installation.
  1. Remove the radiator assembly. Refer to Radiator Replacement .

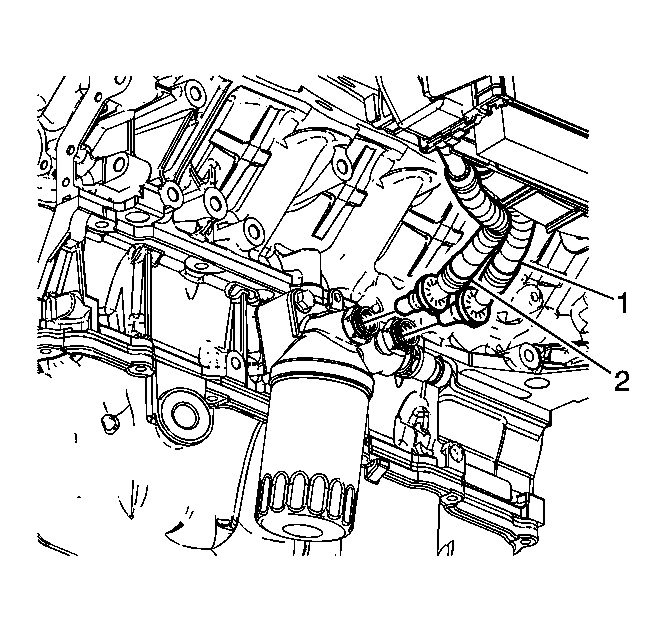

    2. Fig 1: Identifying Engine Oil Cooler Inlet Line
    GM1700102Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine oil cooler inlet line (2) from the engine oil filter adaptor usingDT-47731  .
  3. Remove the engine oil cooler outlet line (1) from the engine oil filter adaptor.
  4. Remove the engine oil cooler lines from the vehicle.
