Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

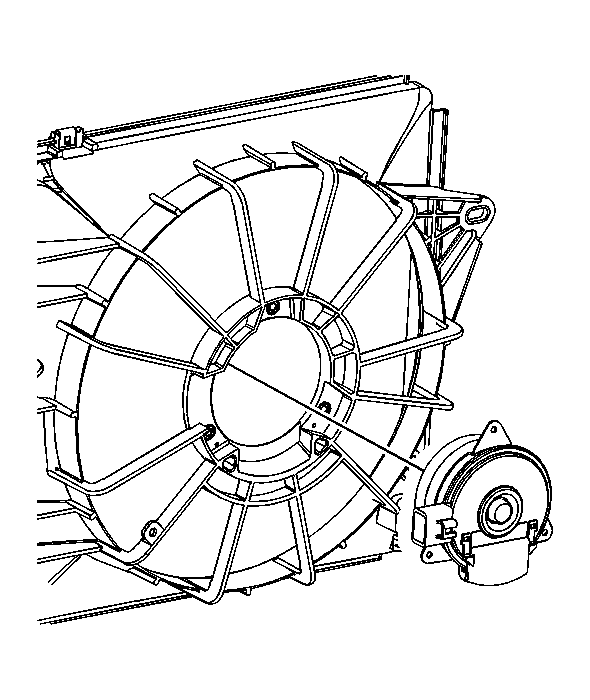

    Fig 1: Removing/Installing Cooling Fan Motor
    GM1664823Courtesy of GENERAL MOTORS CORP.
  1. Install the cooling fan motor to the fan shroud.

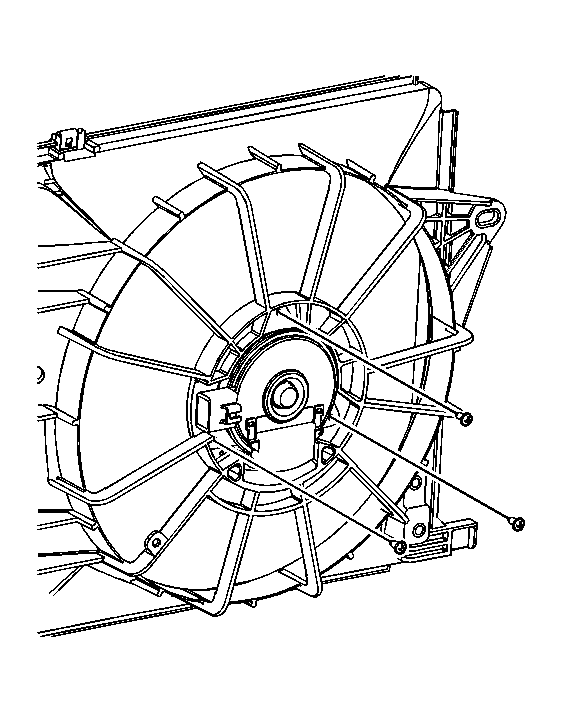

    2. Fig 2: Identifying Cooling Fan Motor Retaining Bolts
    GM1664821Courtesy of GENERAL MOTORS CORP.
  2. Install the cooling fan motor retaining bolts.

    Tighten:  Tighten the bolts to 6 N.m (53 lb in).

  3. Install the cooling fan. Refer to Cooling Fan Replacement - Electric .
  4. Install the cooling fan assembly. Refer to Fan Shroud Replacement .
