Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

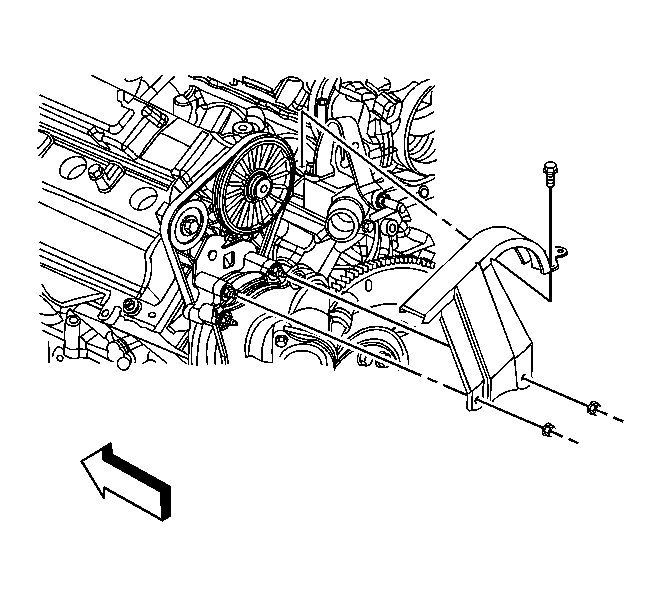

    Fig 1: View Of Water Pump Drive Belt Tensioner Shield
    GM1662858Courtesy of GENERAL MOTORS CORP.
  1. Install the water pump drive belt tensioner shield onto the studs.
    2. NOTE: Refer to Fastener Notice .
  2. Install the water pump drive belt tensioner shield bolt/nuts.

    Tighten:  Tighten the bolt/nuts to 10 N.m (89 lb in).

  3. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
