Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

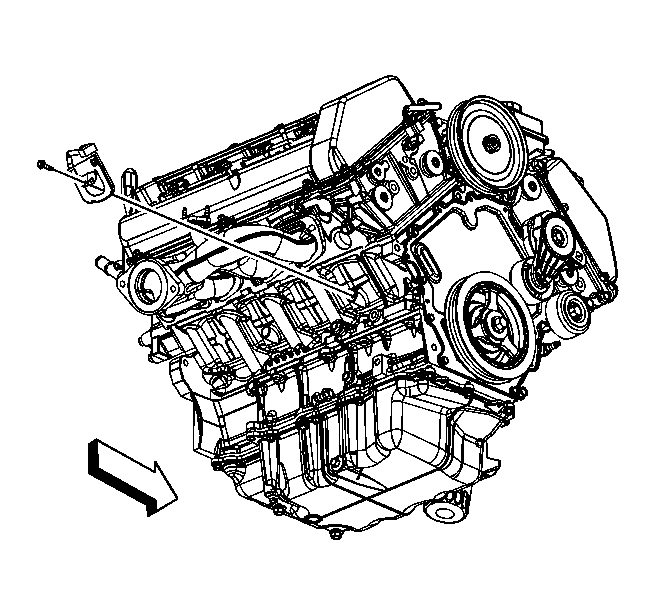

    Fig 1: Identifying Coolant Heater & Bolt
    GM1667234Courtesy of GENERAL MOTORS CORP.
  1. Position the coolant heater to the engine block.
    2. NOTE: Refer to Fastener Notice .
  2. Install the coolant heater bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    3. Fig 2: Identifying Right Coolant Heater Electrical Connector
    GM1667236Courtesy of GENERAL MOTORS CORP.
  3. Connect the coolant heater cord electrical connector (2) to the coolant heater electrical connector (1).
  4. Lower the vehicle.
