DTC P0973: Notes

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

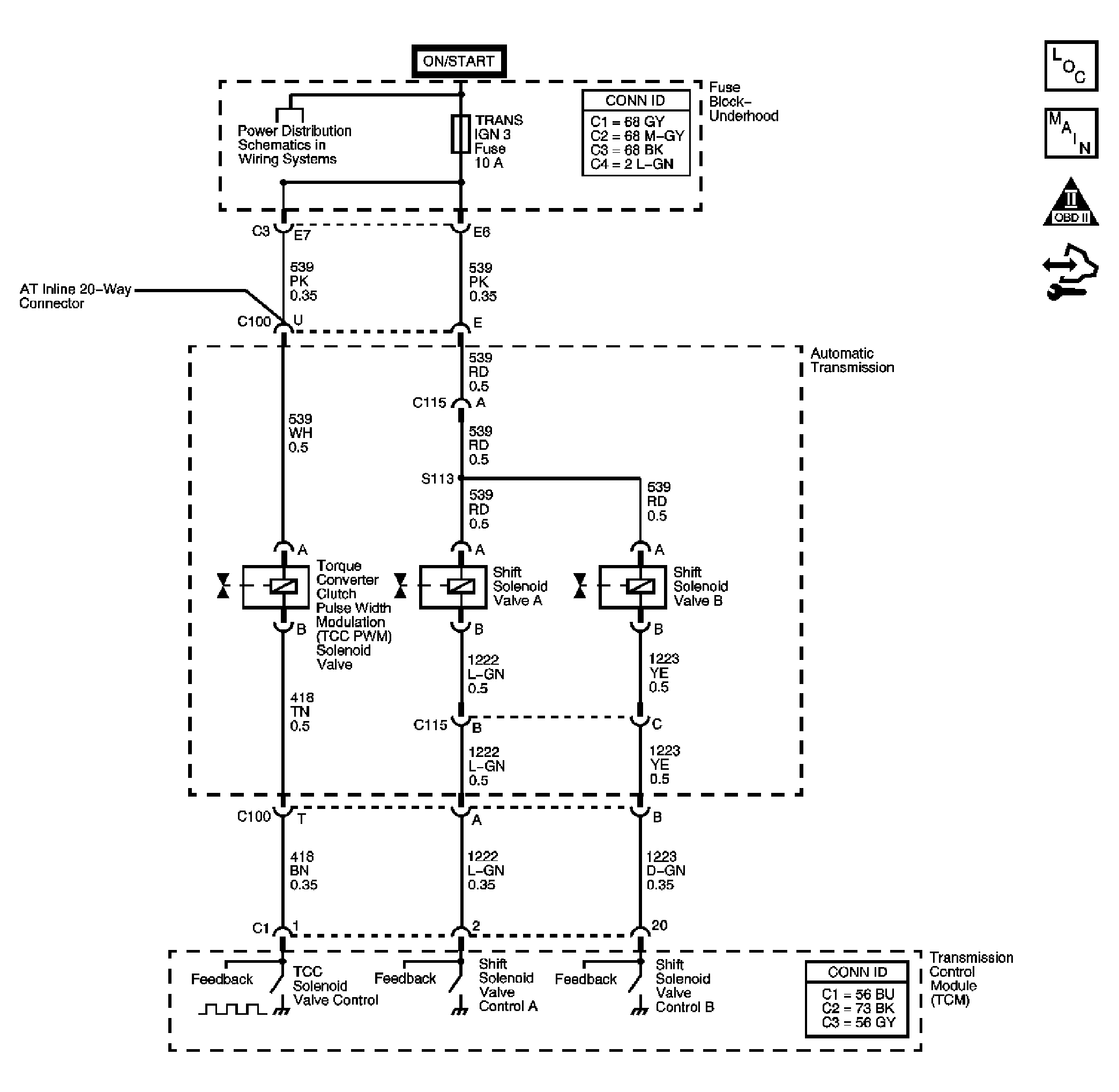

Fig 1: DTC P0973, P0974, P0976, P0977, P2763 & P2764 Schematic
GM1650967Courtesy of GENERAL MOTORS CORP.
