Steering Assist Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

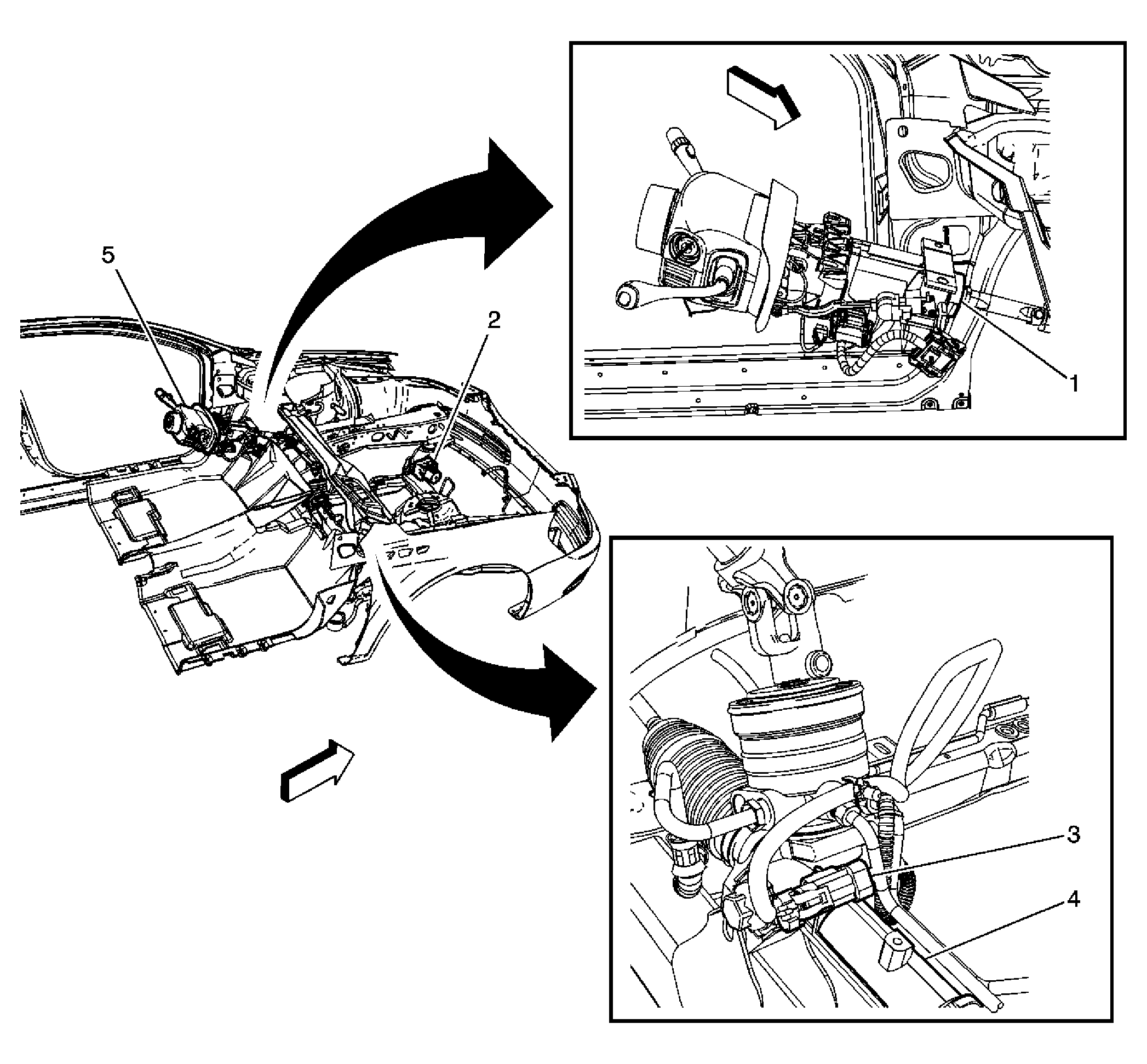

| Callout |
Component Name |
| 1 |
Steering Angle Sensor (JL4) |
| 2 |
Electronic Brake Control Module (EBCM) |
| 3 |
Variable Effort Steering Actuator |
| 4 |
Power Steering Rack |
| 5 |
Steering Column Assembly |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Turn Signal/Multifunction Switch |
| 2 |
Traction Control Switch (AQ9) |
| 3 |
Ignition Lock Cylinder Solenoid (AQ9) |
| 4 |
Ignition Key Alarm Switch |
| 5 |
Theft Deterrent Module (TDM) |
| 6 |
Ignition Switch |
| 7 |
Inflatable Restraint Steering Wheel Module Coil |
| 8 |
Steering Angle Sensor (JL4) |
| 9 |
Telescoping Actuator (N37) |
| 10 |
Tilt Actuator (N37) |
| 11 |
Tilt/Telescope Switch (N37) |
