Electronic Suspension Control Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Front Engine Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Switch
2	Suspension Position Sensor - LF
3	Wheel Speed Sensors (WSS) - LF
4	Suspension Damper - LF
5	Suspension Damper - RF
6	Wheel Speed Sensors (WSS) - RF
7	Suspension Position Sensor - RF

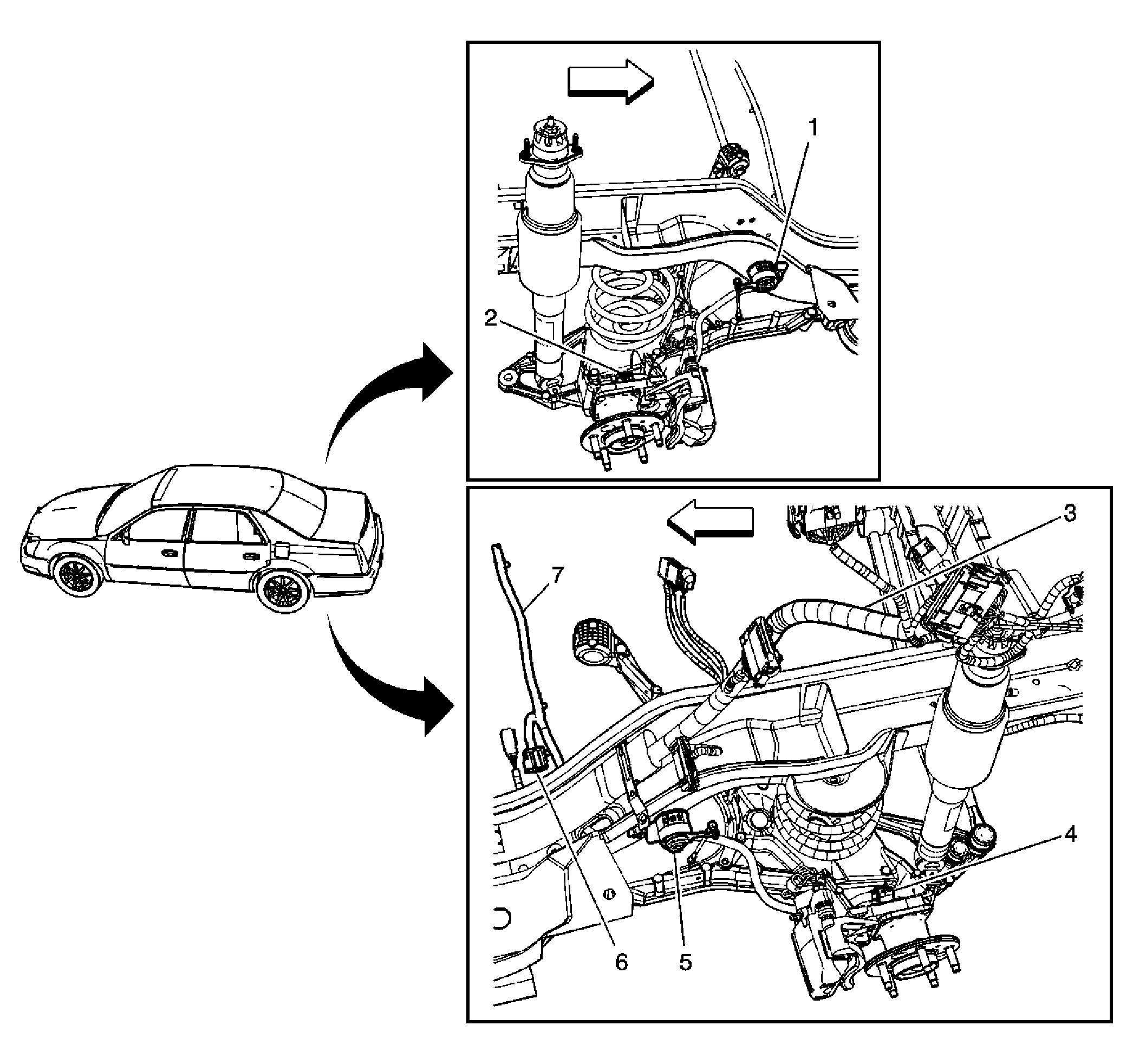

Fig 2: Rear Axle Area Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - RR (F55)
2	Wheel Speed Sensor - RR
3	Body Harness
4	Wheel Speed Sensor - LR
5	Suspension Position Sensor - LR (F55), Automatic Level Control Module (FE1, FE3, F41)
6	C308 Rear Wheel Speed Harness to Chassis Harness
7	Rear Wheel Speed Harness

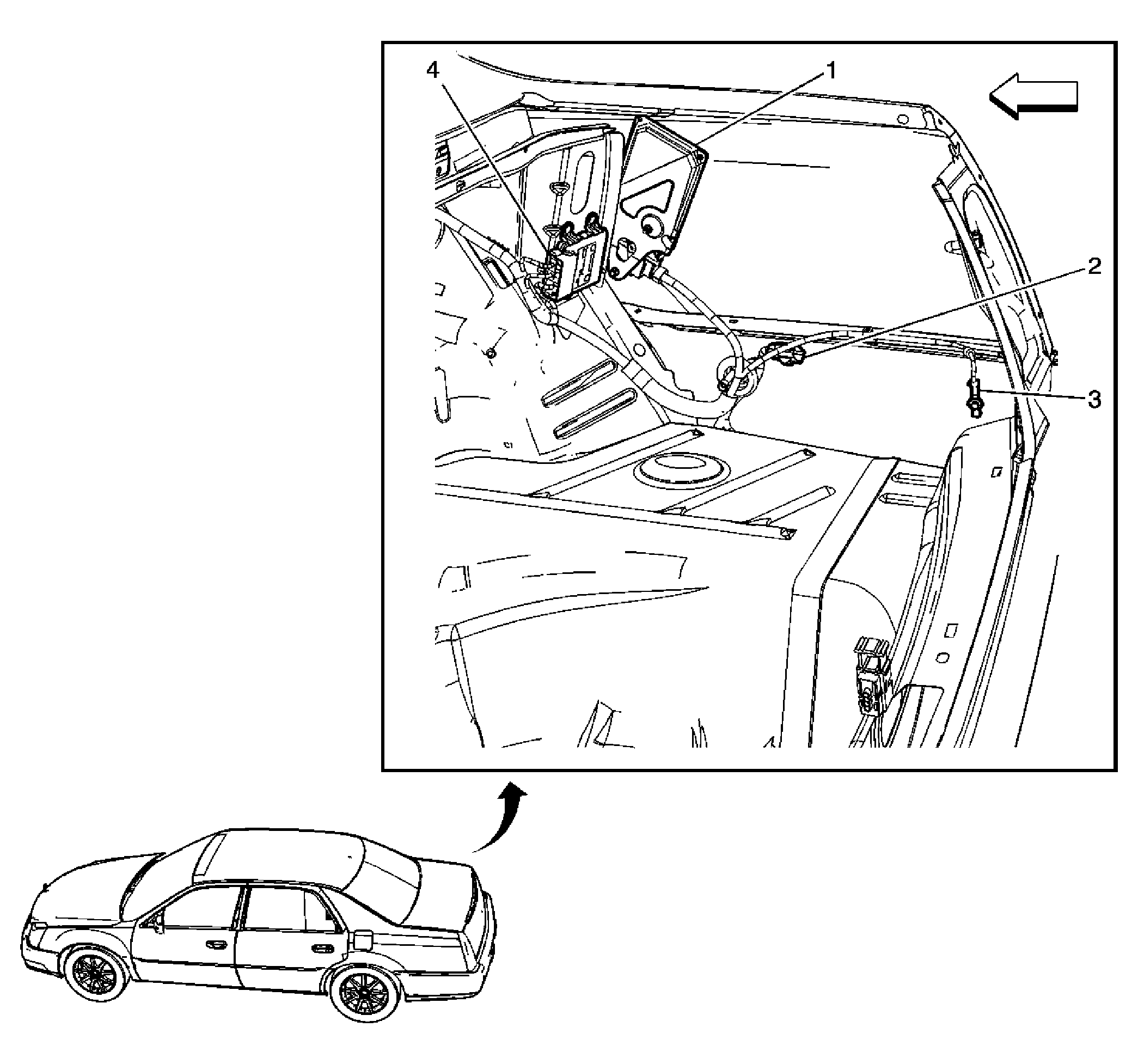

Fig 3: Quarter Panel Component Views - RR

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Suspension Control (ESC) Module (F55)
2	C494 Body Harness to Rear Fascia Harness (UFR)
3	G403
4	Front and Rear Object Alarm Module (UFR)

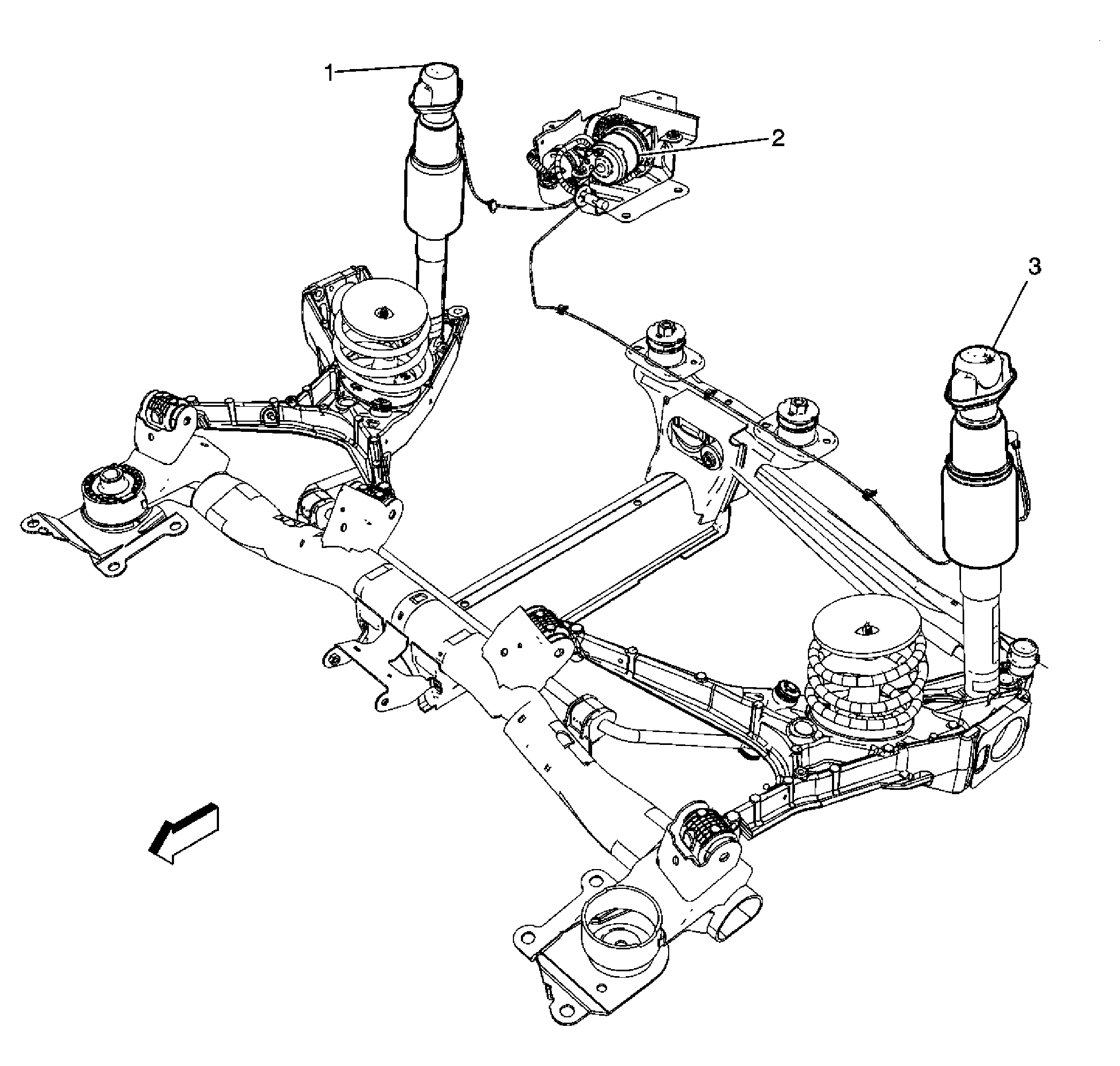

Fig 4: Rear Suspension Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Damper - RR (F55)
2	Automatic Level Control (ALC) Compressor
3	Suspension Damper - LR (F55)
