WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

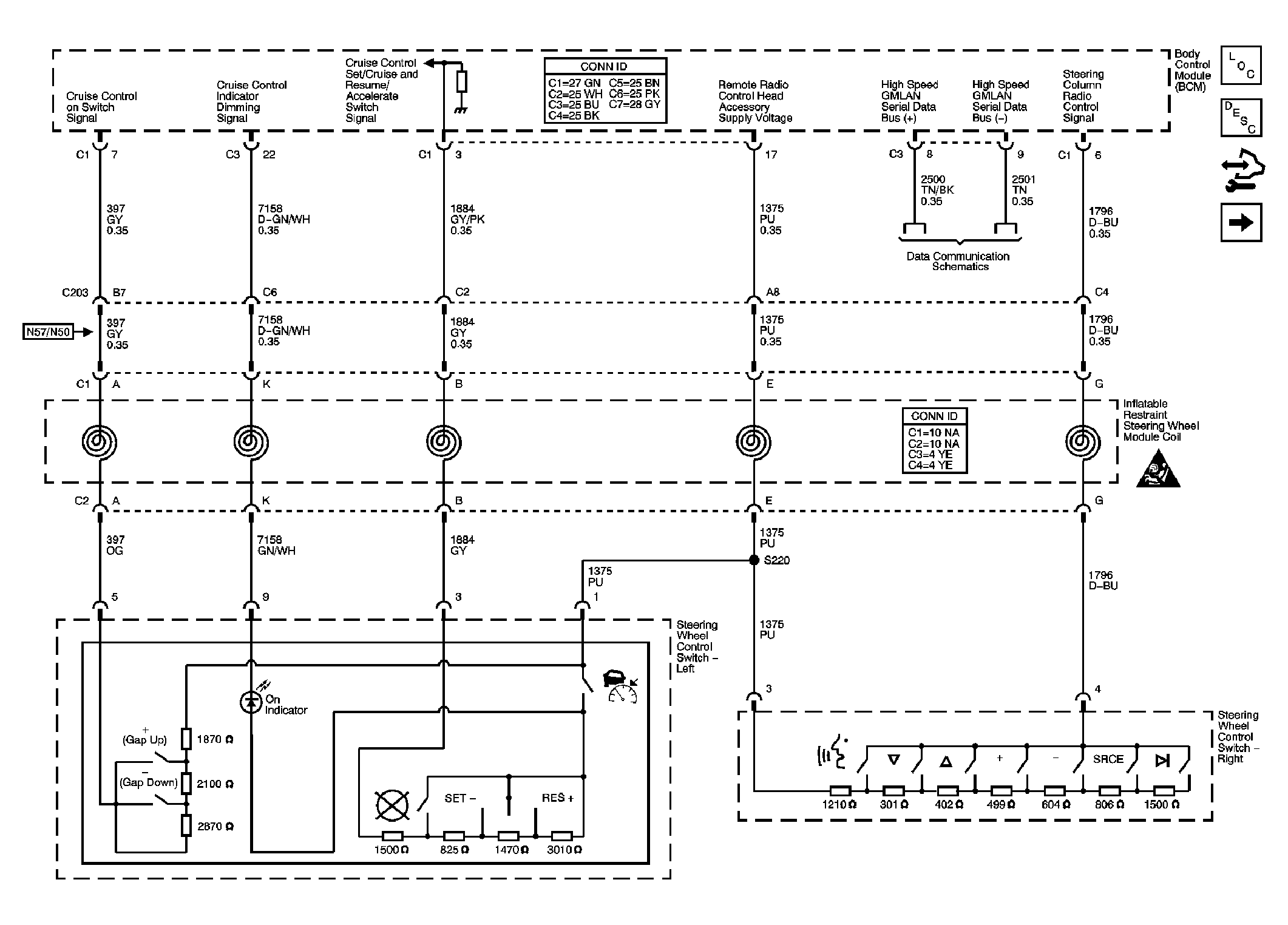

Fig 1: Cruise Control ON/OFF Switch Schematics
Courtesy of GENERAL MOTORS CORP.

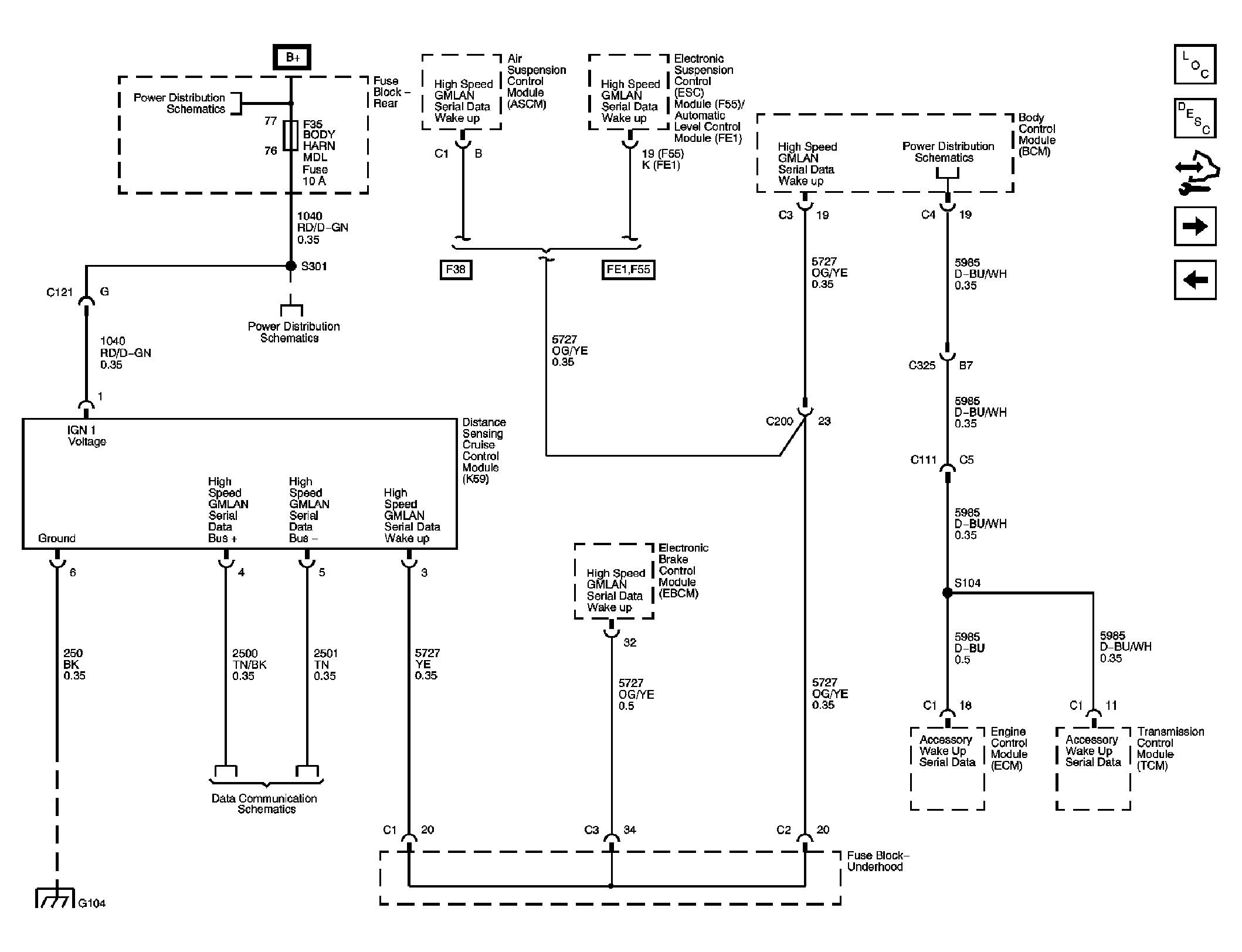

Fig 2: Distance Sensing Cruise Control Module Schematics
