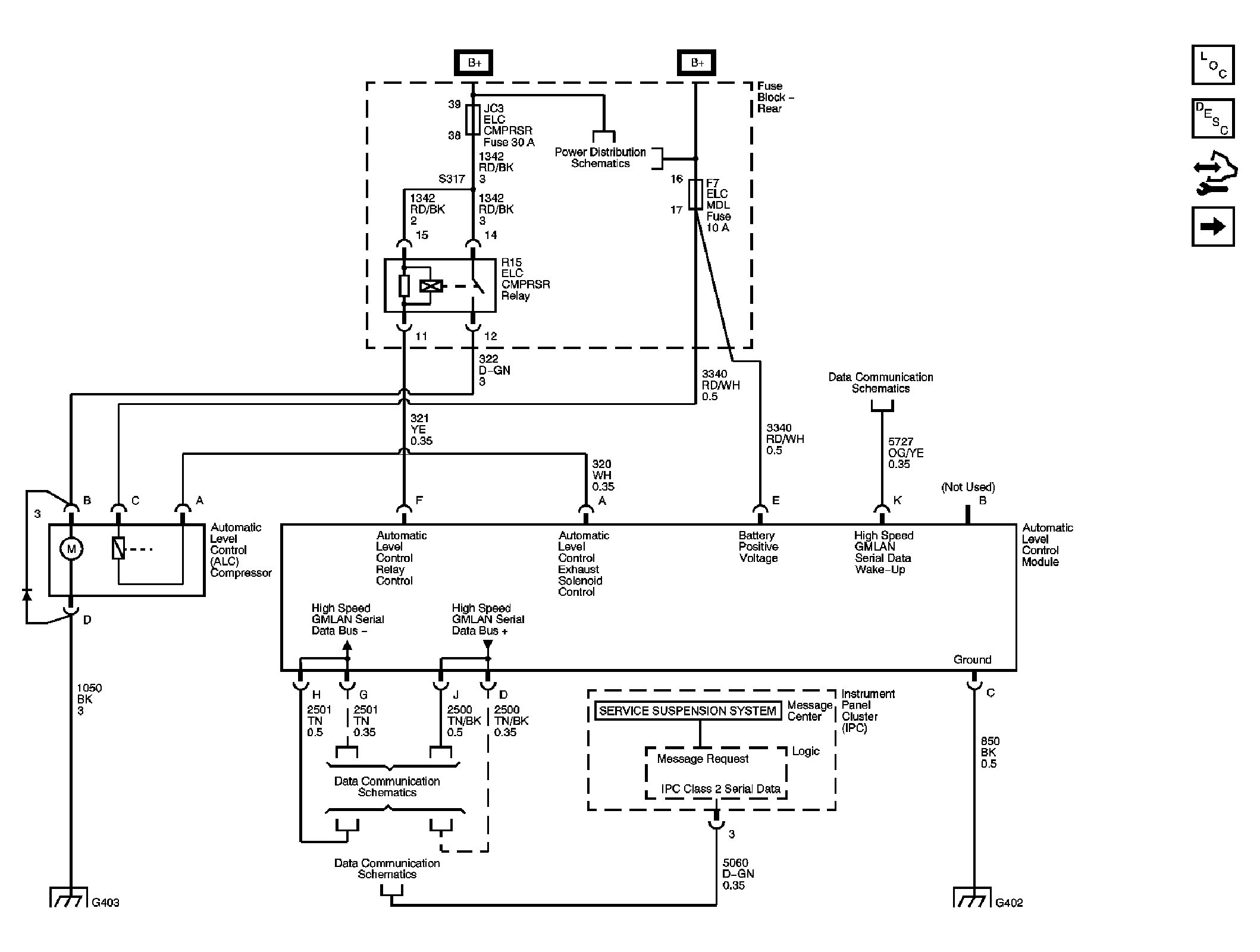

Fig 1: Automatic Level Control (ALC) w/FE1 Schematics
Courtesy of GENERAL MOTORS CORP.

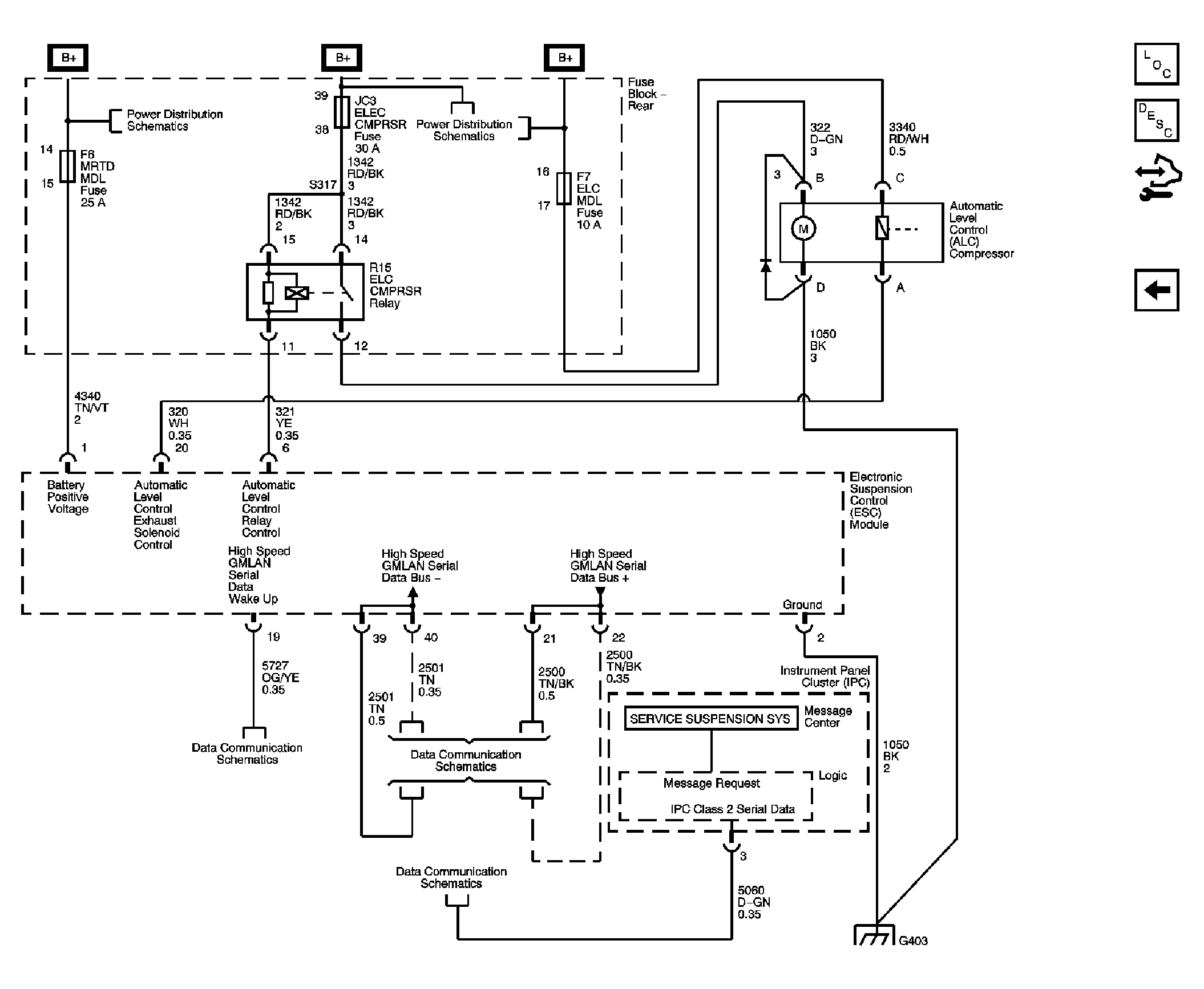

Fig 2: Automatic Level Control (ALC) w/F55 Schematics
