Instrument Panel Compartment Door Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

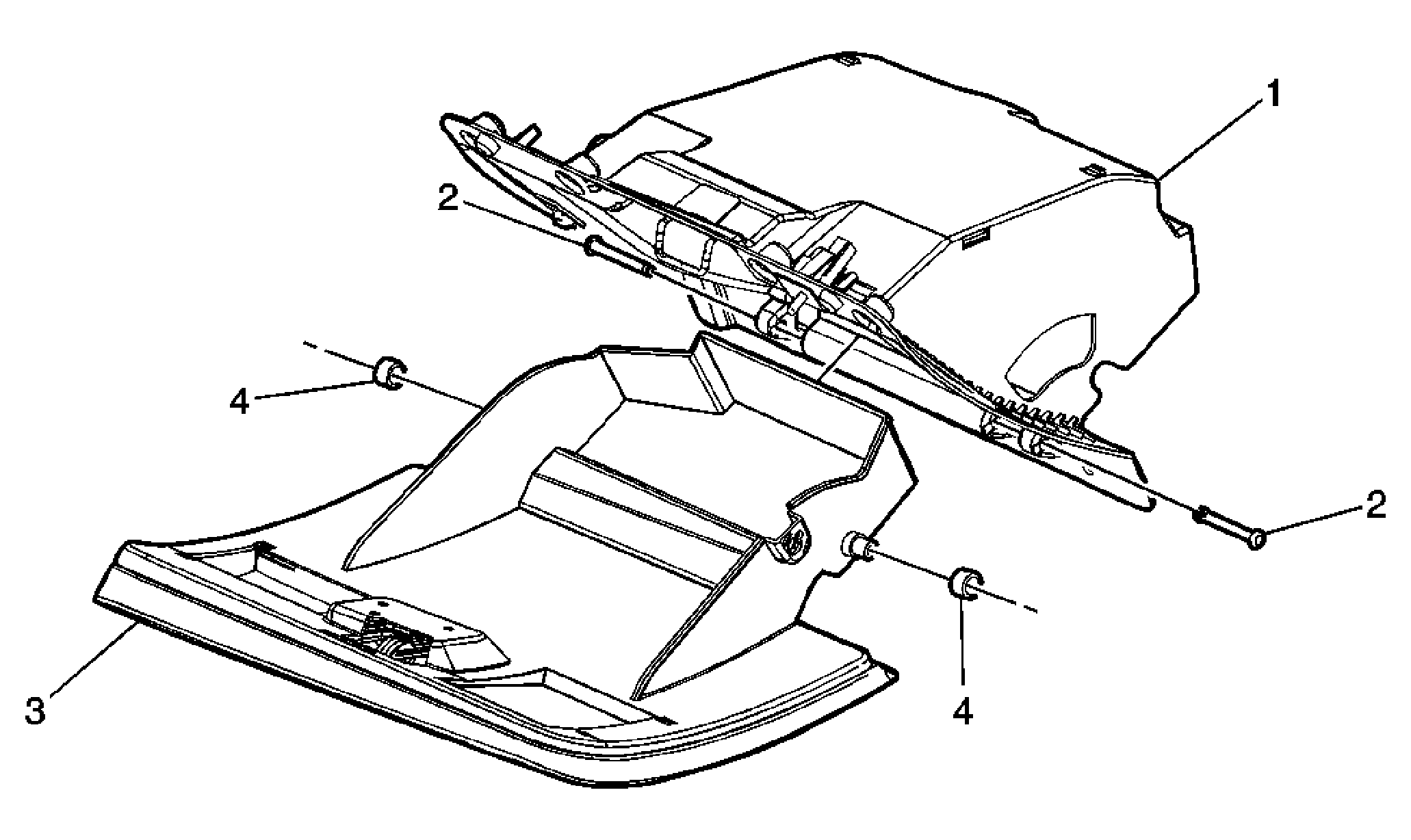

Fig 1: Door - Instrument Panel (I/P) Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Instrument Panel Compartment Assembly Refer to Instrument Panel Compartment Replacement .
2	Instrument Panel Compartment Door Hinge Pin (Qty: 2)
3	Instrument Panel Compartment Door Assembly Tip: Disconnect the instrument panel compartment dampener from the door assembly.
4	Instrument Panel Compartment Door Bumper (Qty: 2)
