Instrument Panel Compartment Door Lock Striker Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Instrument Panel Compartment Door Lock Striker Replacement

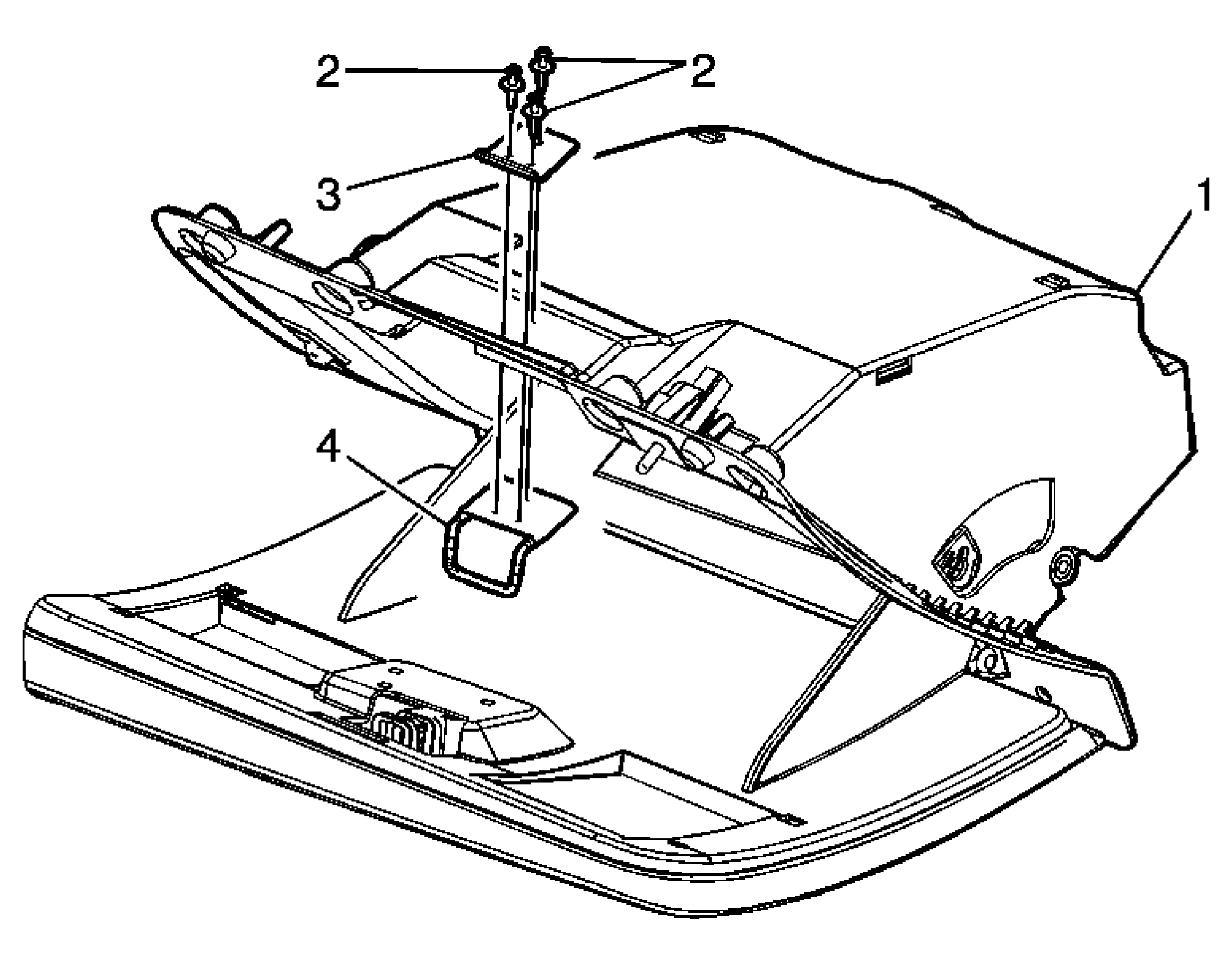

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Instrument Panel Compartment Assembly Refer to Instrument Panel Compartment Replacement . |
| 2 | Instrument Panel Compartment Striker Rivets (Qty: 3)
CAUTION:
Refer to Eye Protection Caution
.
|
| 3 | Instrument Panel Compartment Striker Reinforcement Plate |
| 4 | Instrument Panel Compartment Striker Assembly |
