Instrument Panel Compartment Door Dampener Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

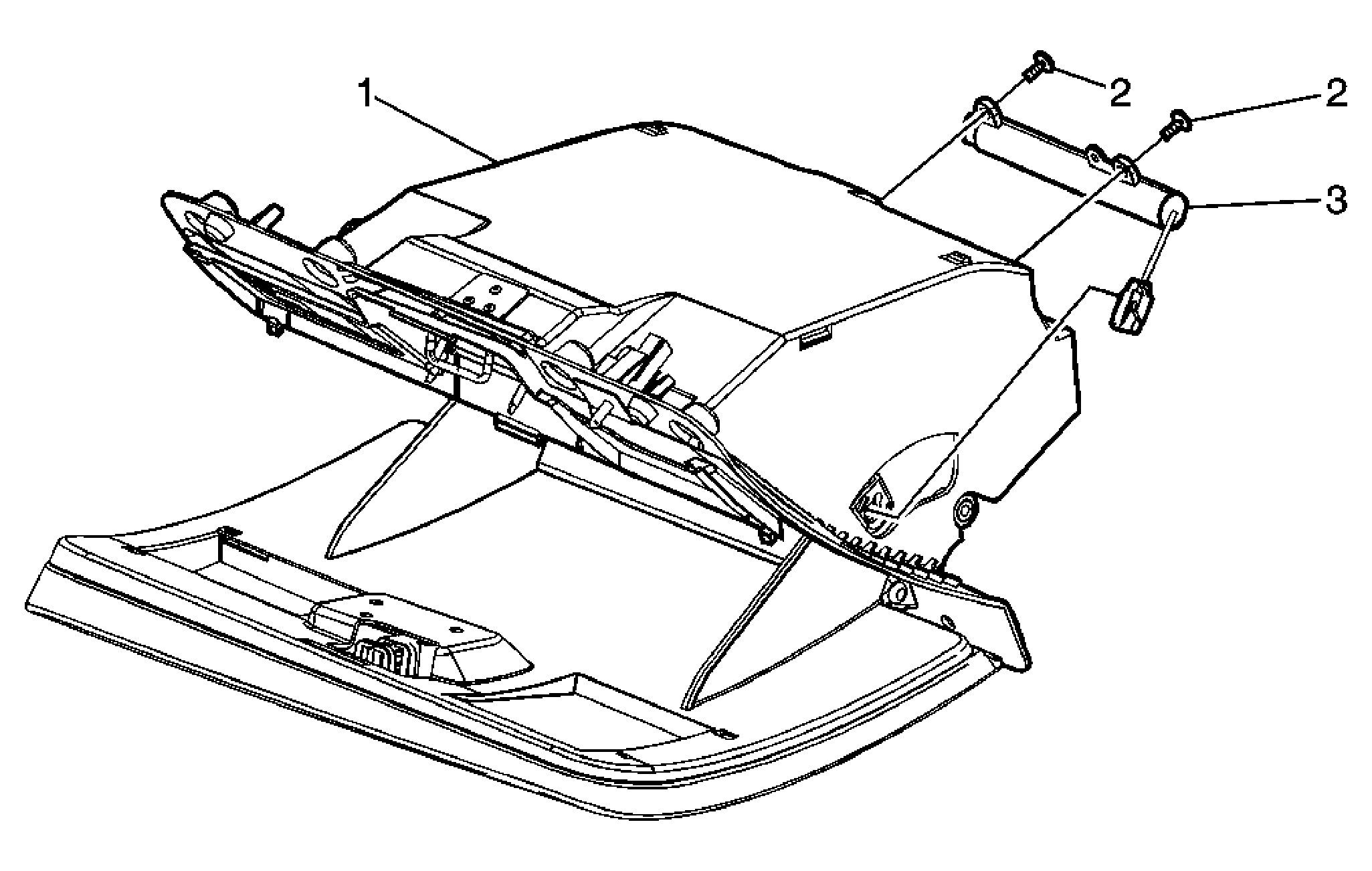

Fig 1: Dampener - I/P Compartment
GM1592920Courtesy of GENERAL MOTORS CORP.
Instrument Panel Compartment Door Dampener Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Compartment Assembly, Instrument Panel
Refer to Instrument Panel Compartment Replacement .
2 Screw, Instrument Panel Compartment Dampener (Qty: 2)

Tighten:  2 N.m (18 lb in)
3 Dampener Assembly, Instrument Panel Compartment
