Front Floor Console Compartment Door Latch Replacement
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Front Floor Console Compartment Door Latch Replacement

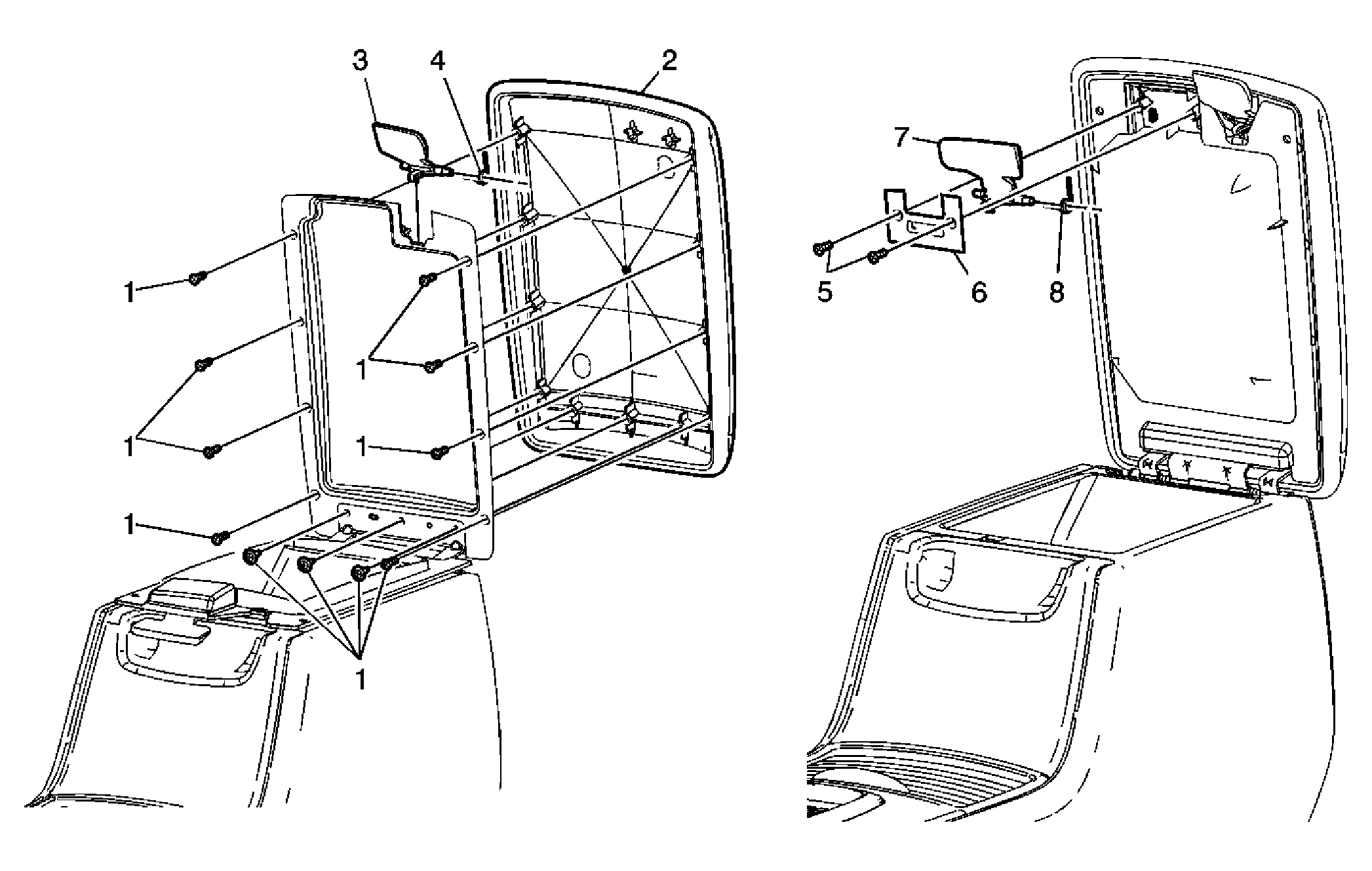

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . |
|
| Upper Latch Assembly | |
| 1 | Screw, Front Floor Console Armrest Cover (Qty: 11) Tighten: 2 N.m (18 lb in) |
| 2 | Cover Assembly, Front Floor Console Armrest |
| 3 | Latch Assembly, Front Floor Console Armrest Upper |
| 4 | Spring, Front Floor Console Armrest Latch |
| Lower Latch Assembly | |
| 5 | Screw, Front Floor Console Armrest Lower Latch Cover (Qty: 2) Tighten: 2 N.m (18 lb in) |
| 6 | Cover Assembly, Front Floor Console Armrest Lower Latch |
| 7 | Latch Assembly, Front Floor Console Armrest Lower |
| 8 | Spring, Front Floor Console Armrest Latch |
