Front Floor Console Armrest Hinge Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

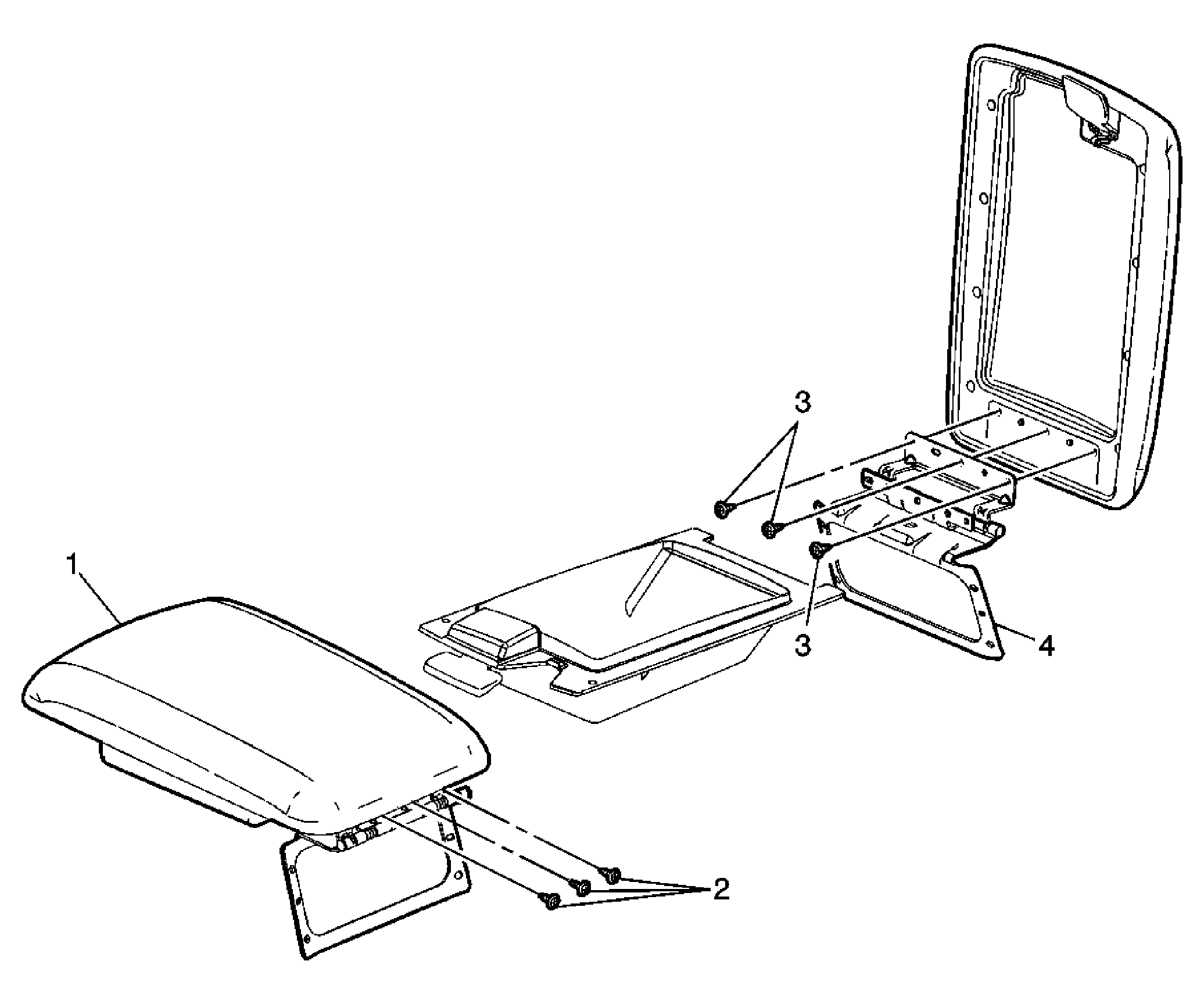

Fig 1: View Of Hinge - Floor Console Arm Rest
GM1615560Courtesy of GENERAL MOTORS CORP.
Front Floor Console Armrest Hinge Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Armrest Assembly, Front Floor Console
Refer to Front Floor Console Armrest Replacement .
2 Screw, Console Armrest Hinge (Qty: 3)

Tighten:  2 N.m (18 lb in)
3 Screw, Console Armrest Hinge (Qty: 3)

Tighten:  2 N.m (18 lb in)
4 Hinge Assembly, Front Floor Console Armrest
