Console Shift Lever Bezel Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

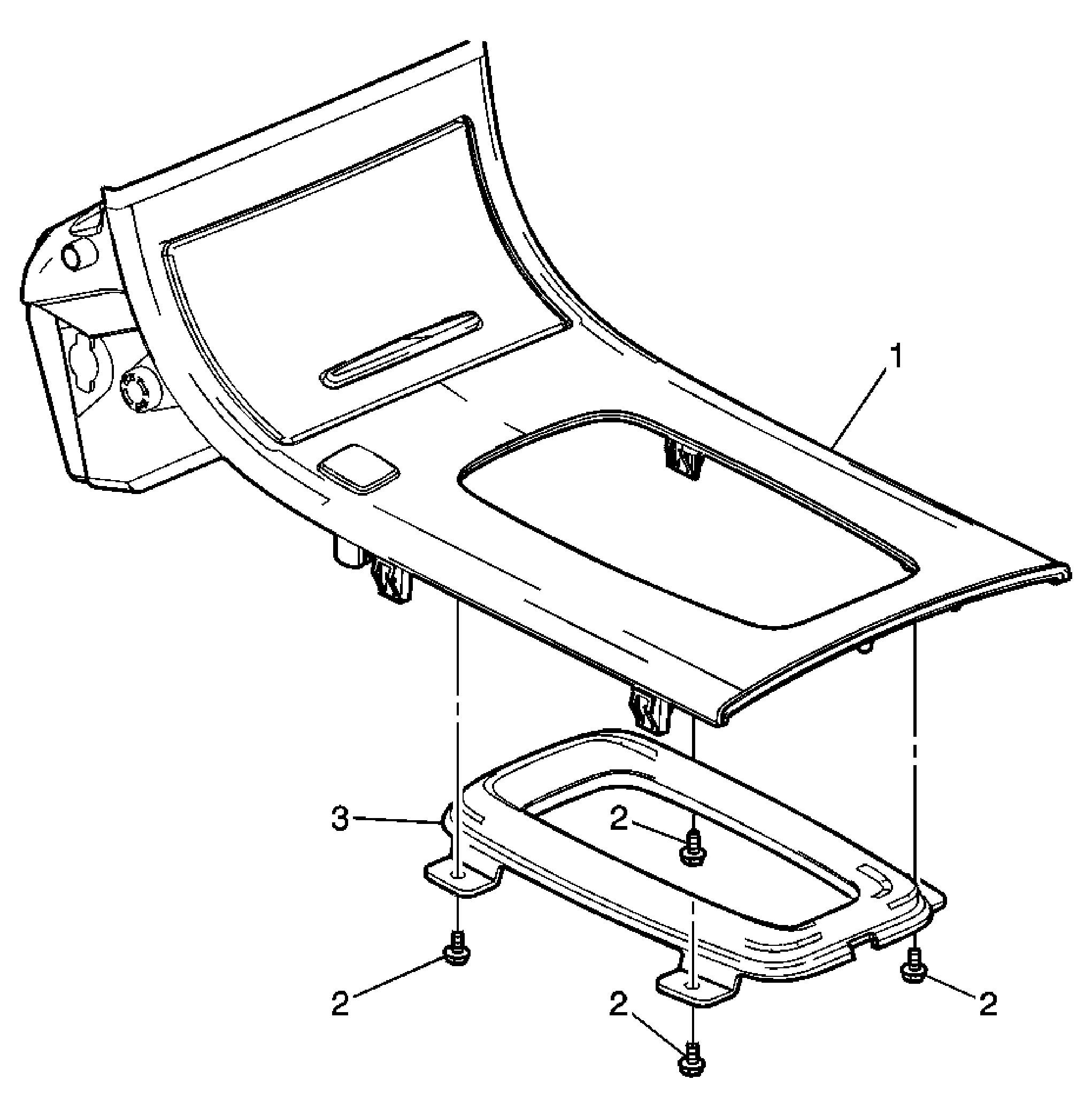

Fig 1: Console Shift Lever Bezel
GM1592871Courtesy of GENERAL MOTORS CORP.
Console Shift Lever Bezel Replacement

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Front Floor Console Plate Assembly
Refer to Front Floor Console Trim Plate Replacement .
2 Console Shift Bezel Bolts (Qty: 4)

Tighten:  2 N.m (18 lb in)
3 Console Shift Bezel Assembly
