Center Console End Panel Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

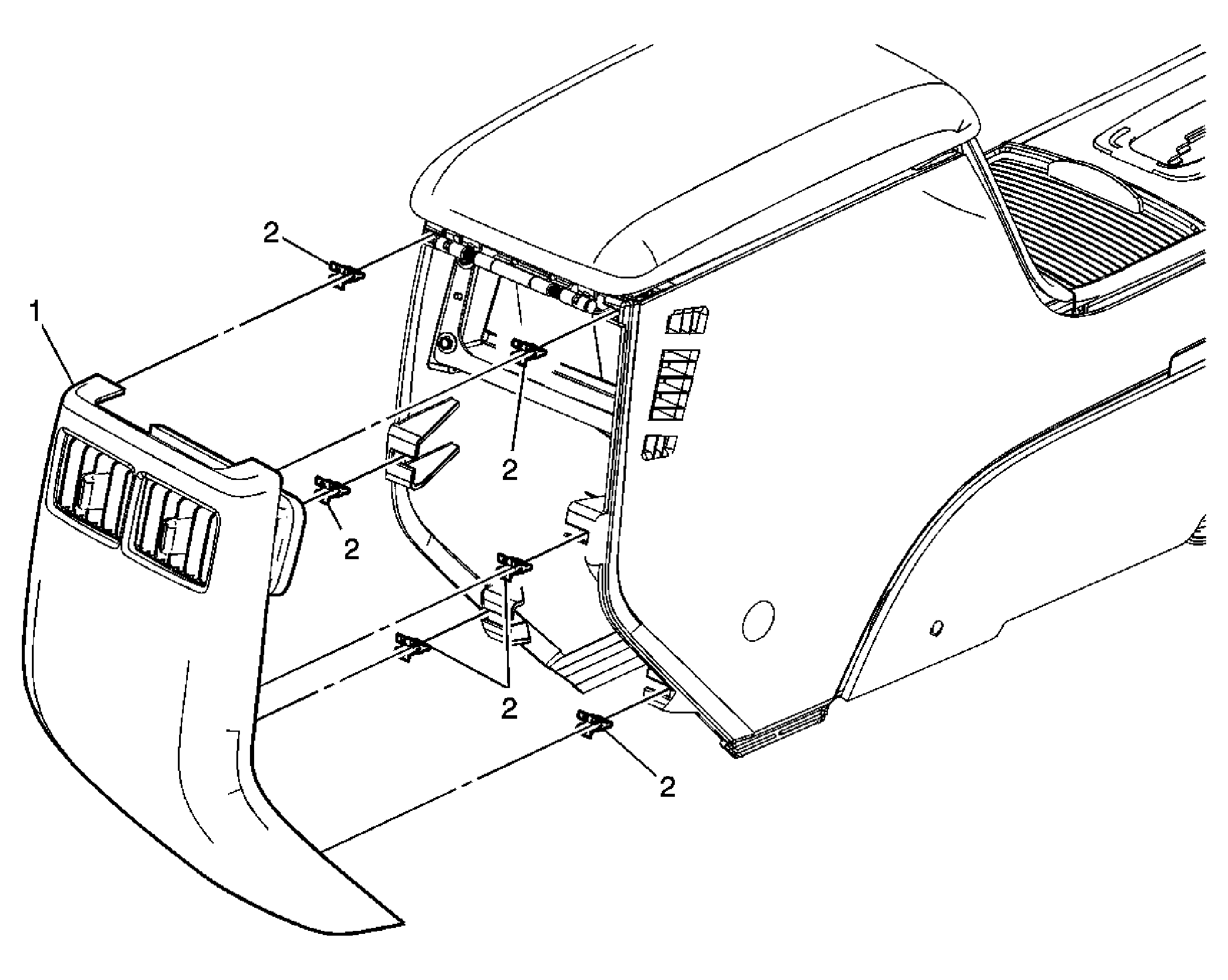

Fig 1: View Of Center Console End Panel
GM1593686Courtesy of GENERAL MOTORS CORP.
Center Console End Panel Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Panel Assembly, Front Floor Console Rear Trim
Tip:
  1. Disconnect the electrical connector, if equipped with a rear HVAC control module.
  2. Remove the rear HVAC control assembly, if equipped. Refer to HVAC Control Assembly Replacement - Auxiliary .
2 Clip, Retainer (Qty: 6)
