Air Suspension Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

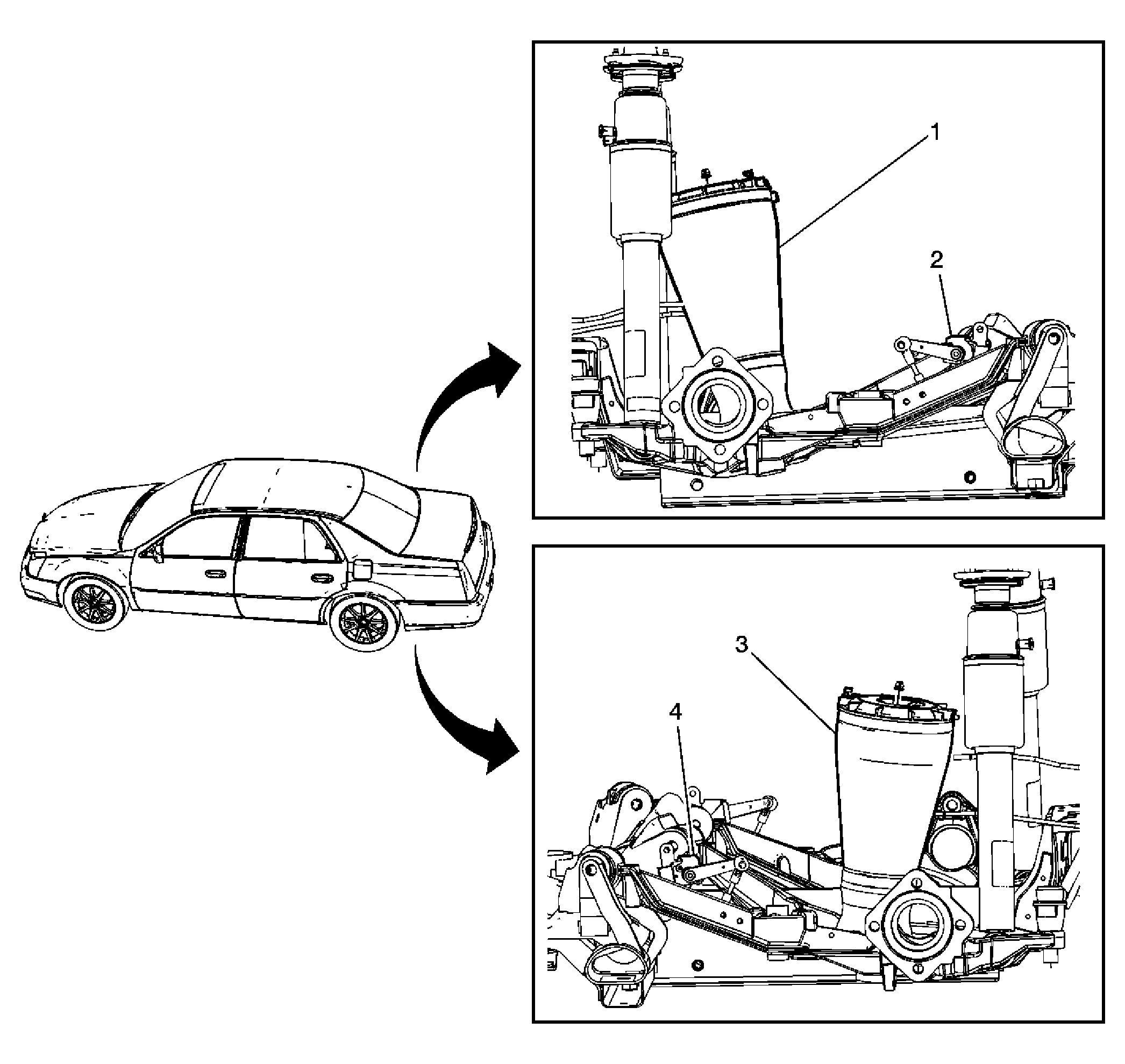

Fig 1: Rear Air Suspension Components
GM1718006Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Spring-RR (F38)
2 Suspension Position Sensor-RR (F38)
3 Air Spring-LR (F38)
4 Suspension Position Sensor-LR (F38)
