Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

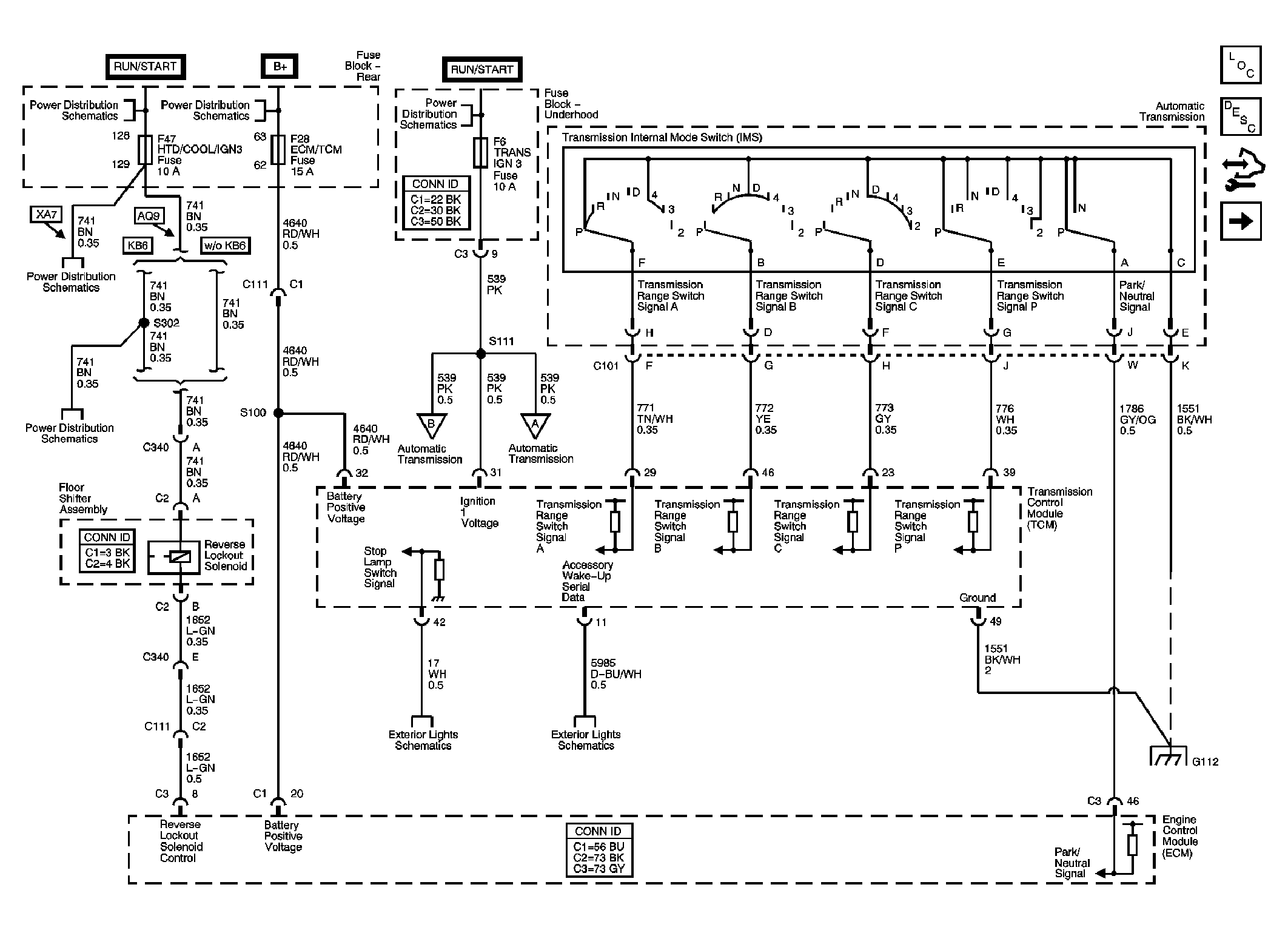

Fig 1: TCM Power Ground
GM1758687Courtesy of GENERAL MOTORS CORP.

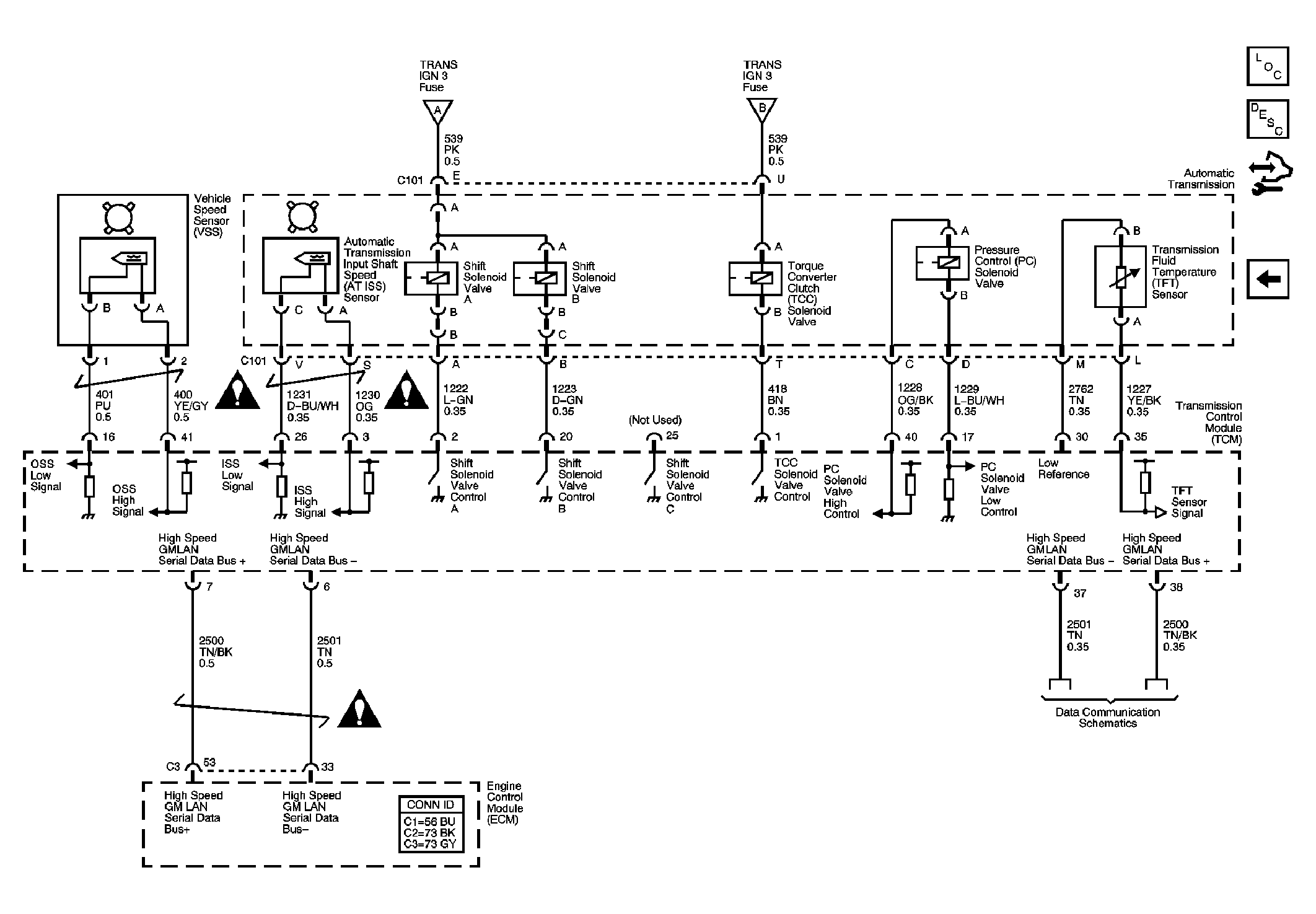

Fig 2: Transmission Solenoids and VSS
GM1758732Courtesy of GENERAL MOTORS CORP.
