Transmission Mount Replacement - Left Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

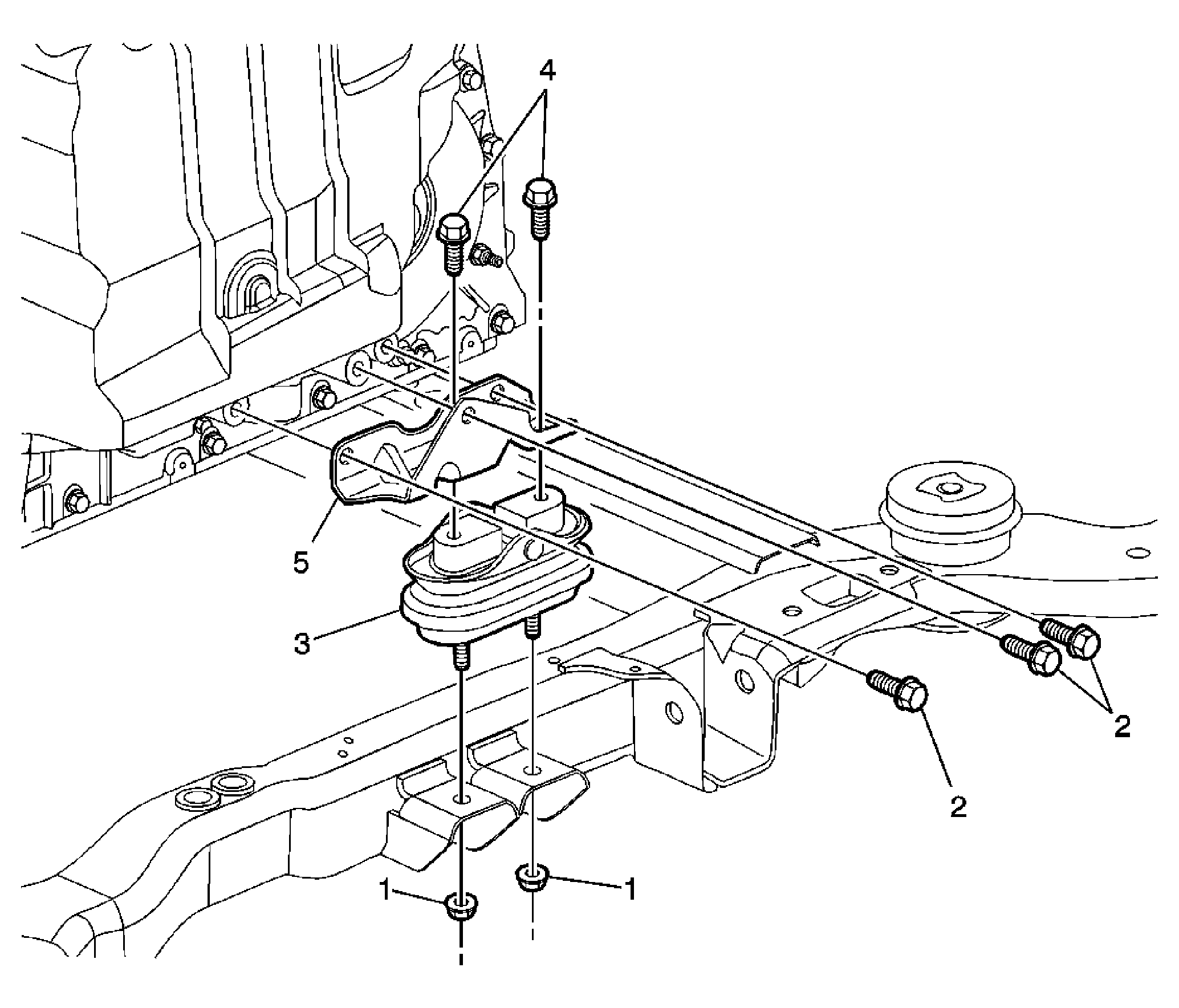

Fig 1: Identifying Left Transmission Mount Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Support the powertrain with a suitable jack.
1	Left Transmission Mount Nuts (Qty: 2) Tighten: 50 N.m (37 lb ft)
2	Left Transmission Mount Bracket Bolts (Qty: 3) Tighten: 50 N.m (37 lb ft)
3	Left Transmission Mount
4	Left Transmission Mount Bolts (Qty: 2) Tighten: 50 N.m (37 lb ft)
5	Left Transmission Mount Bracket
