Transmission Fluid Cooler Hose/Pipe Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

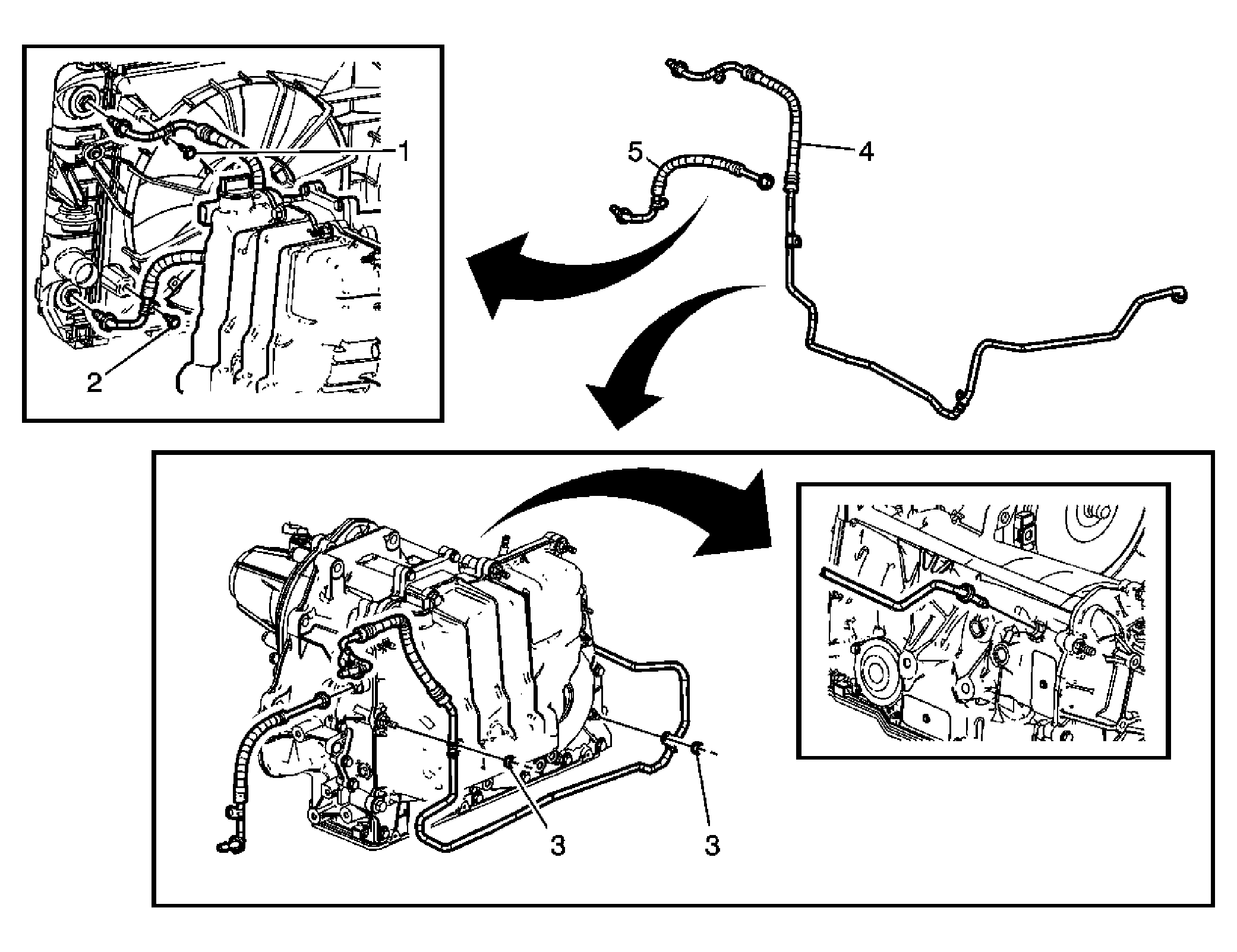

Fig 1: View Of Transmission Fluid Cooler Hoses/Pipes

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Transmission Oil Cooler Pipe/Hose - Upper, Bolt Tip: Disconnect the upper transmission oil cooler line from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Replacement . Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Tighten: 9 N.m (80 lb in)
2	Transmission Oil Cooler Pipe/Hose - Lower, Bolt Tip: Disconnect the lower transmission oil cooler line from the radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Replacement .
3	Transmission Oil Cooler Pipe/Hose - Upper, Nuts (Qty: 2) Tip: Disconnect the upper transmission oil cooler line from the transmission. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Replacement . Tighten: 9 N.m (80 lb in)
4	Transmission Oil Cooler Pipe/Hose - Lower
5	Transmission Oil Cooler Pipe/Hose - Upper
