Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View of Left Right Scavenger Screens
    GM97465Courtesy of GENERAL MOTORS CORP.
  1. Install the new left and right scavenger seals.
  2. Install the new left and right scavenger screens.

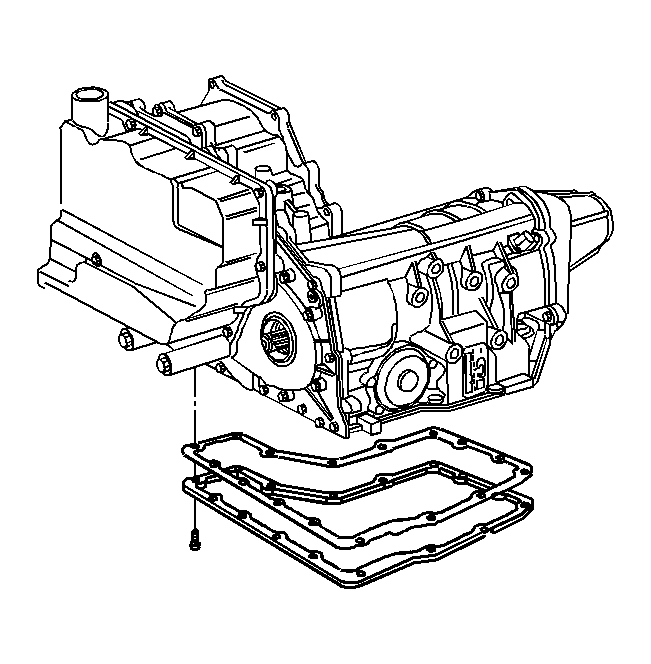

    3. Fig 2: View of Bottom Pan
    GM97463Courtesy of GENERAL MOTORS CORP.
  3. Install the bottom pan, seal, and bolts. Finger-tighten the bolts.
    4. Fig 3: View of Pan Bolts Sequence
    GM15495Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Tighten the pan bolts 3 times to the proper specification, in the sequence shown:

    Tighten:

    1. Tighten the pan bolts to 3 N.m (27 lb in).
    2. Tighten the pan bolts to 6 N.m (53 lb in).
    3. Tighten the pan bolts to 12 N.m (106 lb in).

  5. Lower the vehicle.
  6. Add DEXRON-III transmission fluid as required. Refer to Fluid Capacity Specifications  and Transmission Fluid Checking .
