Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower valve assembly. Refer to Lower Valve Assembly Replacement .
  2. Remove the parking gear. Refer to Parking Gear Replacement .
  3. Move the manual shaft from the park position.

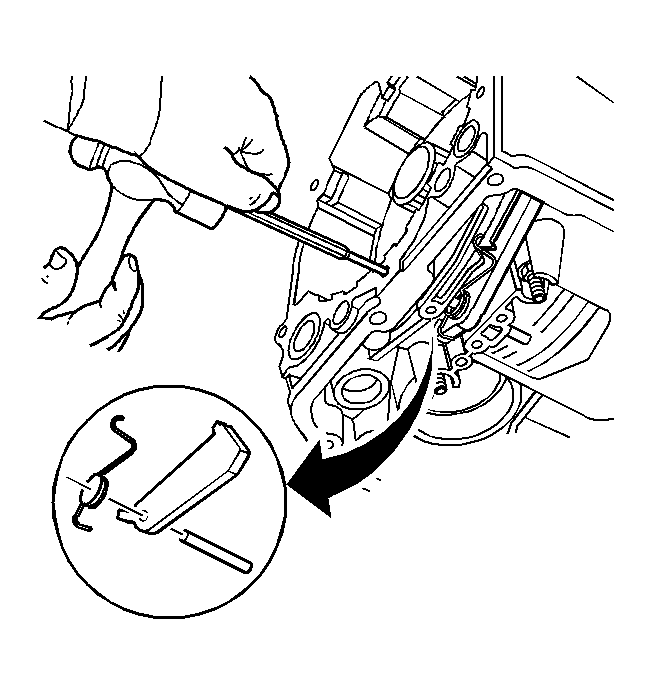

    4. Fig 1: Expanded View of Parking Pawl & Spring
    GM97517Courtesy of GENERAL MOTORS CORP.
  4. Drive out the parking pawl pivot pin using a pin punch. Push down on the spring while driving the pin out.
  5. Remove the parking pawl and the spring.
  6. Inspect the following:
    • Parking pawl tooth for damage
    • Parking pawl spring for over expansion
    • Pivot pin for scorning, excessive wear
