Thrust Bearings Installation

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Drive & Driven Sprocket Thrust Bearing
    GM11986Courtesy of GENERAL MOTORS CORP.
  1. Inspect the drive sprocket thrust bearing (132) and the driven sprocket thrust bearing (440) for damage.

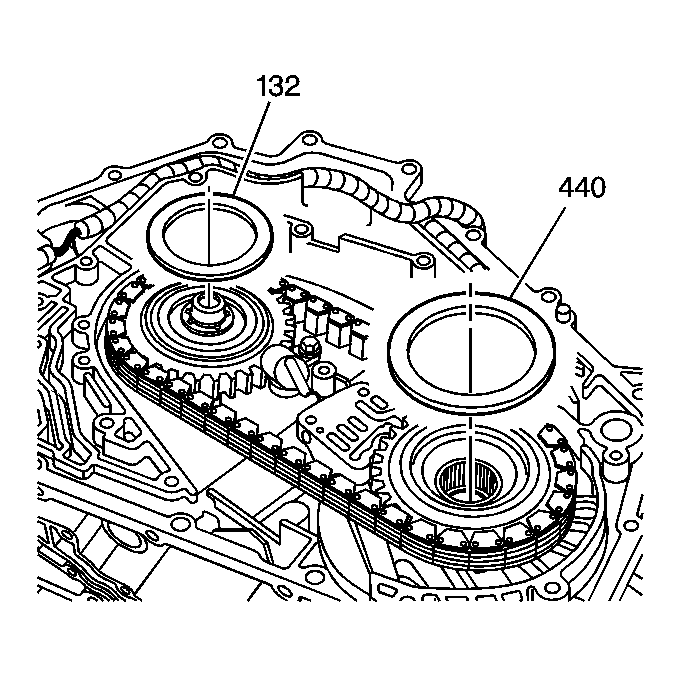

    2. Fig 2: Locating Drive And Driven Sprocket Thrust Bearings
    GM762299Courtesy of GENERAL MOTORS CORP.
  2. Install the drive and driven sprocket thrust bearings (132, 440) onto the sprockets.
