Second Clutch Plates Installation

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Inspection Points On Second Clutch Plates
    GM11967Courtesy of GENERAL MOTORS CORP.
  1. Inspect the second clutch wave plate (431) and all of the steel plates (433) for burning or damage.

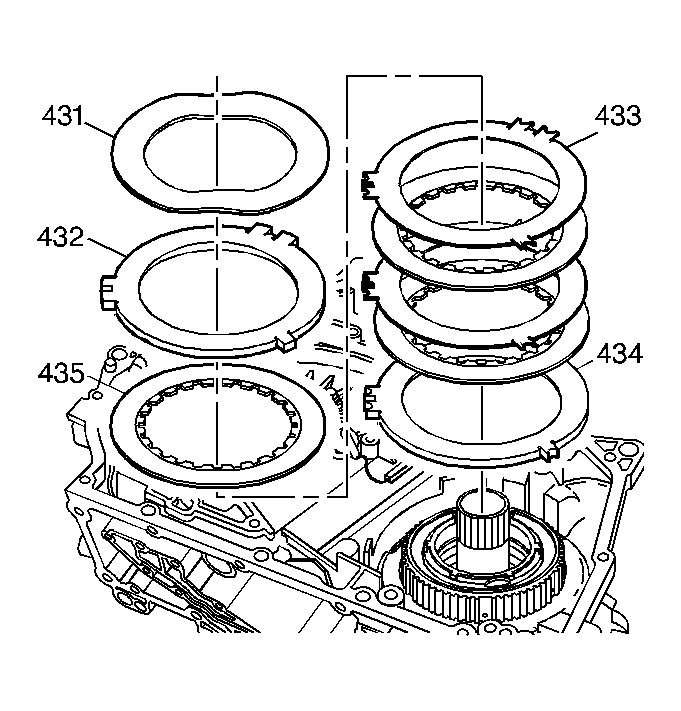

    2. Fig 2: Identifying Second Clutch Plates
    GM11968Courtesy of GENERAL MOTORS CORP.
  2. Install the following parts:
    1. The second clutch backing plate (434) with flat side facing up
    2. The four fiber clutch plates (435)
    3. The four steel clutch plates (433)
    4. The backing plate (432)
    5. The wave plate (431)
