Tools Required

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

J 34741-3  Input Shaft Seal Sizer. See Special Tools .

    Fig 1: Installing J 34741-3 Over The Input Shaft Oil Seal Rings
    GM15455Courtesy of GENERAL MOTORS CORP.
  1. Remove the J 34741-3  . See Special Tools .

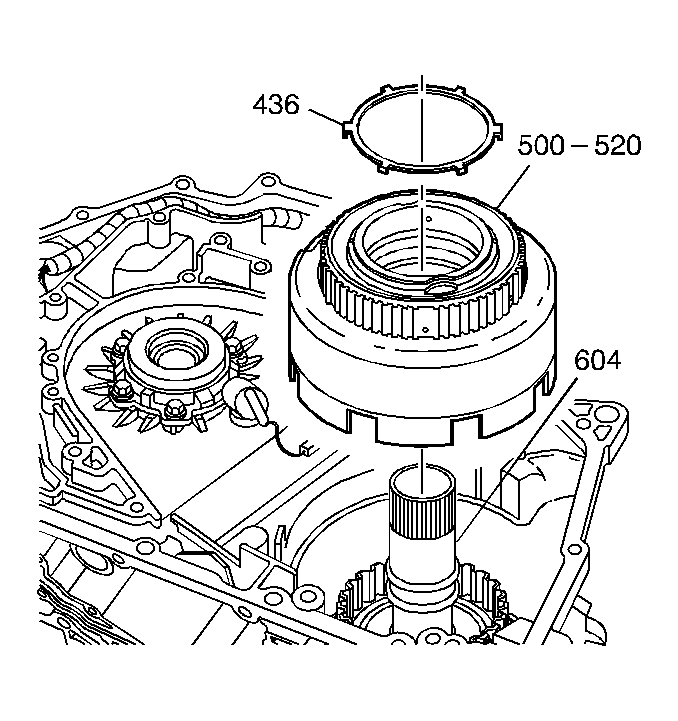

    2. Fig 2: Identifying Reverse Clutch Housing & Second Sprag Assembly
    GM11966Courtesy of GENERAL MOTORS CORP.
  2. Install the reverse clutch housing and the second sprag assembly (500-520) onto the reaction carrier assembly (604). The teeth on the reverse clutch housing must seat into the reaction sun shell. Twist the reverse housing to install and insure proper seating.
  3. Install the thrust washer (436) on top of the reverse clutch housing with the tabs pointing down.
