Parking Pawl Removal

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

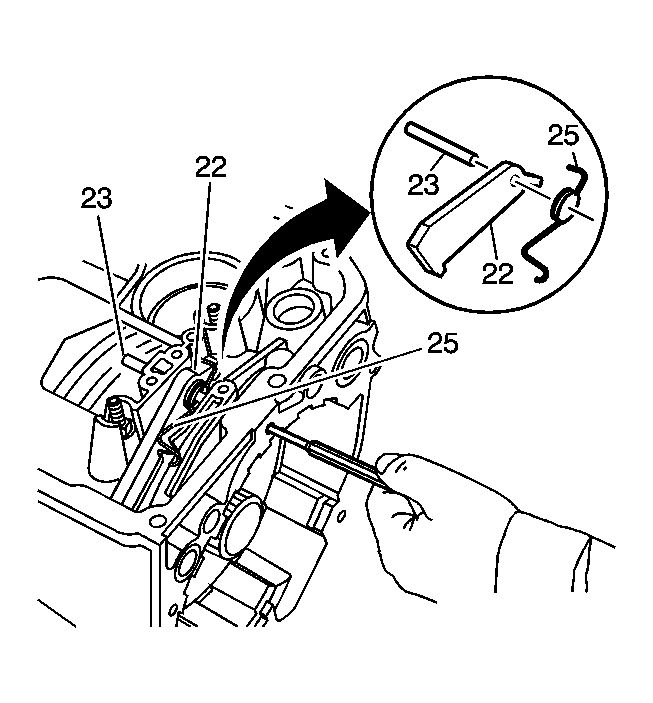

    Fig 1: Expanded View Of Parking Pawl, Spring & Pivot Pin
    GM11869Courtesy of GENERAL MOTORS CORP.
  1. Move the manual shaft out of the Park position.
  2. Push the parking pawl pivot pin (23) towards the side cover with a pin punch. Push down on the spring while driving the pin out. Remove the pivot pin.
  3. Remove the parking pawl (22) and remove the spring (25).
