Manual Link and Wire Harness Connection

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Locating Manual Valve Link & Detent Lever
    GM586268Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Failure to use a new manual valve link retainer may cause the manual valve link assembly to become disconnected.
  1. Install a new manual valve link retainer (915) onto the detent lever (17).
  2. Connect the manual valve link (913) to the detent lever (17).

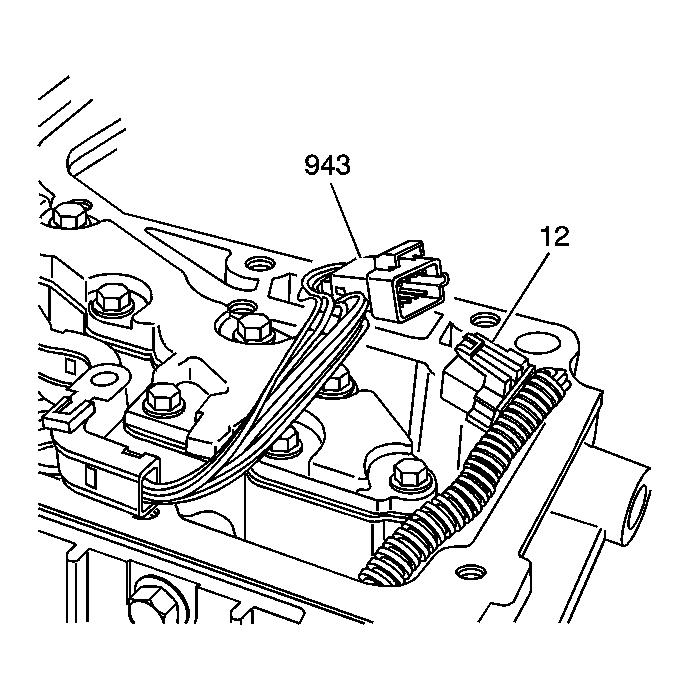

    3. Fig 2: View Of Wire Harness Extension & Upper Control Wire Harness
    GM586271Courtesy of GENERAL MOTORS CORP.
  3. Connect the wire harness extension (943) to the upper control wire harness (12).
  4. Tuck the harness and connectors into the case cavity.
