Final Drive Carrier, Sun and Internal Gear Removal

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

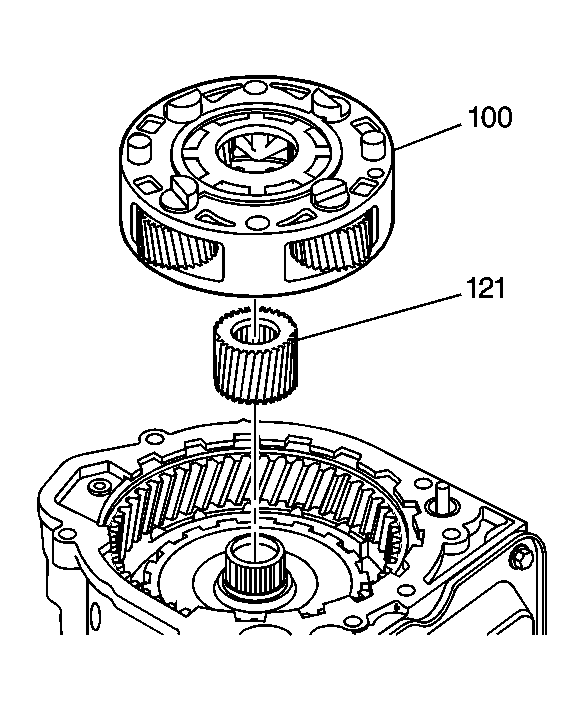

    Fig 1: Identifying Final Drive Sun Gear
    GM11845Courtesy of GENERAL MOTORS CORP.
  1. Rotate the transmission so the final drive carrier (100) faces up.
  2. Remove the final drive carrier and the thrust bearing (100).
  3. Remove the final drive sun gear (121).
    4. Fig 2: View Of Final Drive Internal Gear With Groove Aligned Up
    GM11846Courtesy of GENERAL MOTORS CORP.
  4. Remove the final drive internal gear snap ring (135).
  5. Remove the final drive internal gear (120).
