Case Cover/Turbine Shaft Seal Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

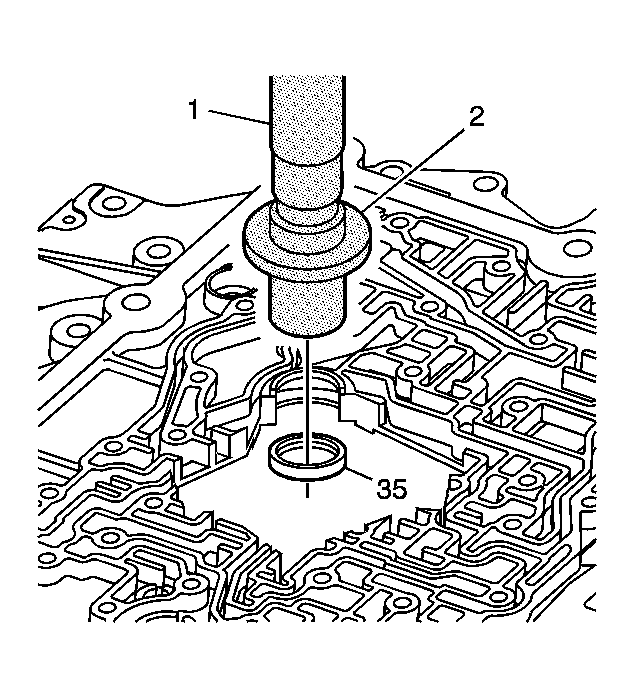

    Fig 1: Removing The Case Cover To Turbine Shaft Seal Using J 7079-2 & J 39062
    GM11988Courtesy of GENERAL MOTORS CORP.
  1. Using J 7079-2  (1) and the remover side of the J 39062  (2), remove the case cover to turbine shaft seal (35). See Special Tools .

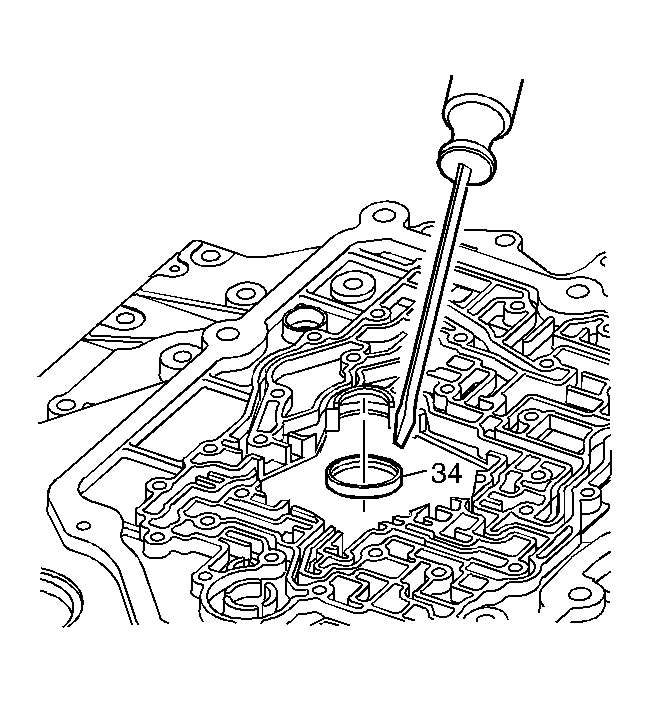

    2. Fig 2: Removing Case Cover To Drive Sprocket Seal
    GM11989Courtesy of GENERAL MOTORS CORP.
  2. Using a small screwdriver, remove the case cover to drive sprocket seal (34) by tapping the seal out through the slots in the case cover.

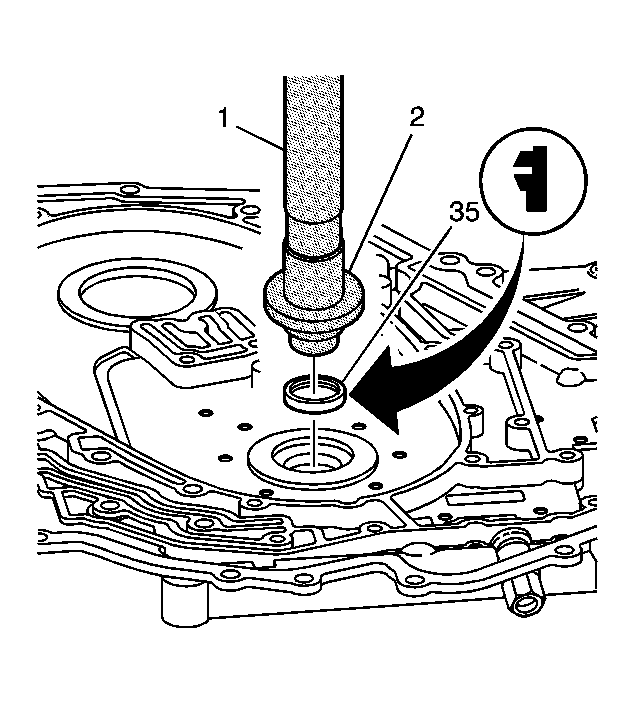

    3. Fig 3: Installing The Case Cover To Turbine Shaft Seal Using J 39062
    GM11991Courtesy of GENERAL MOTORS CORP.
  3. Using J 7079-2  (1) the installer side of the J 39062  (2), install the case cover to turbine shaft seal (35). See Special Tools .

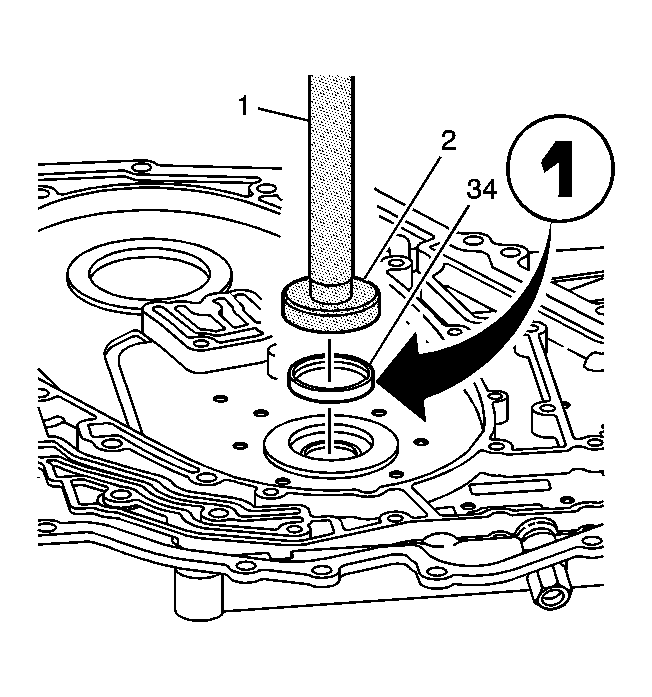

    4. Fig 4: Installing The Case Cover To Drive Sprocket Seal Using J 8092
    GM11992Courtesy of GENERAL MOTORS CORP.
  4. Using J 8092  (1) and J 39648  (2), install the case cover to drive sprocket seal (34). See Special Tools .
