Overdrive Range, 4-3 Downshift - A/T System Hydraulic Diagram

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

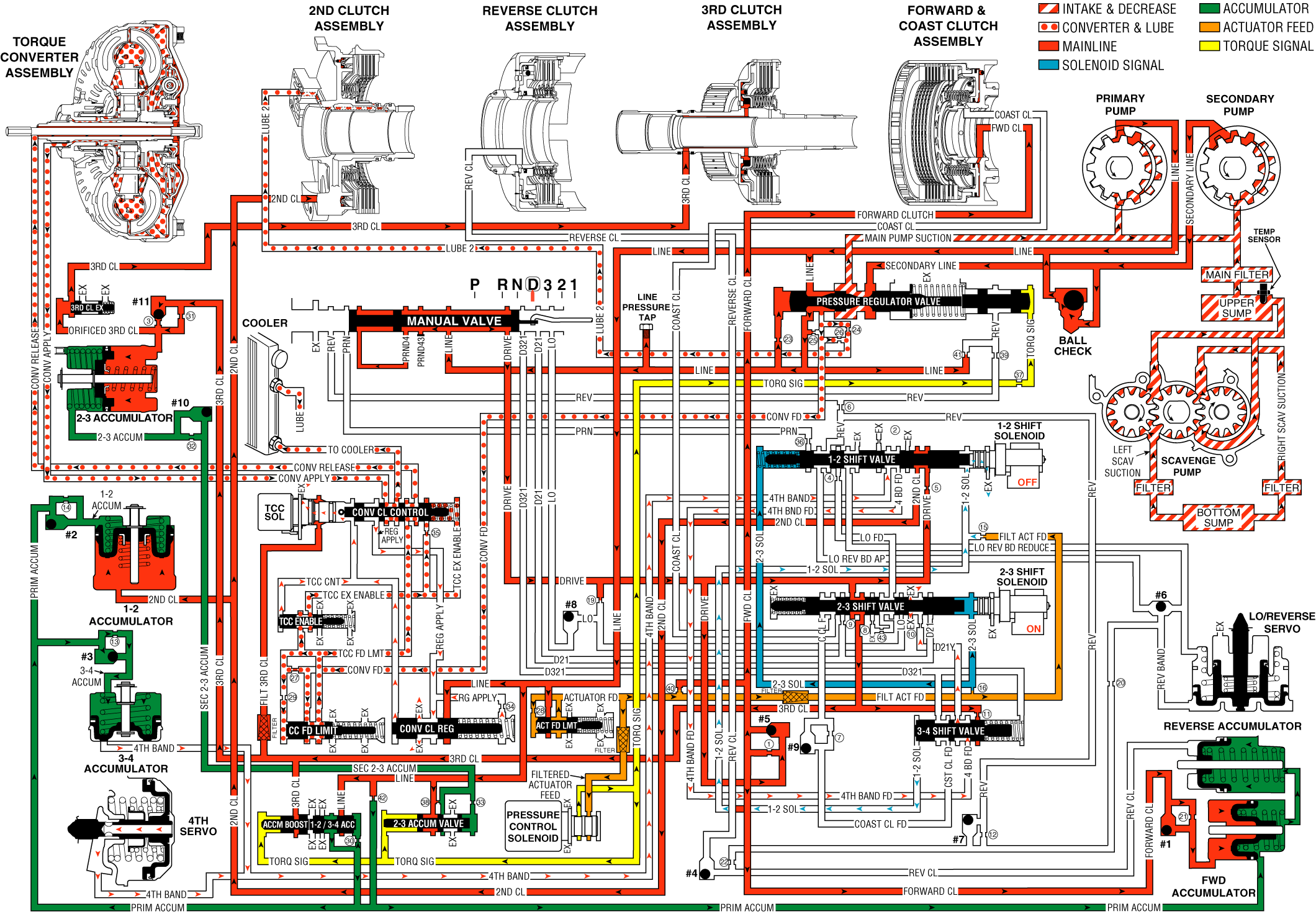

Fig 1: Overdrive Range, 4-3 Downshift Fluid Flow Diagram
GM1217591Courtesy of GENERAL MOTORS CORP.
