Component Location
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

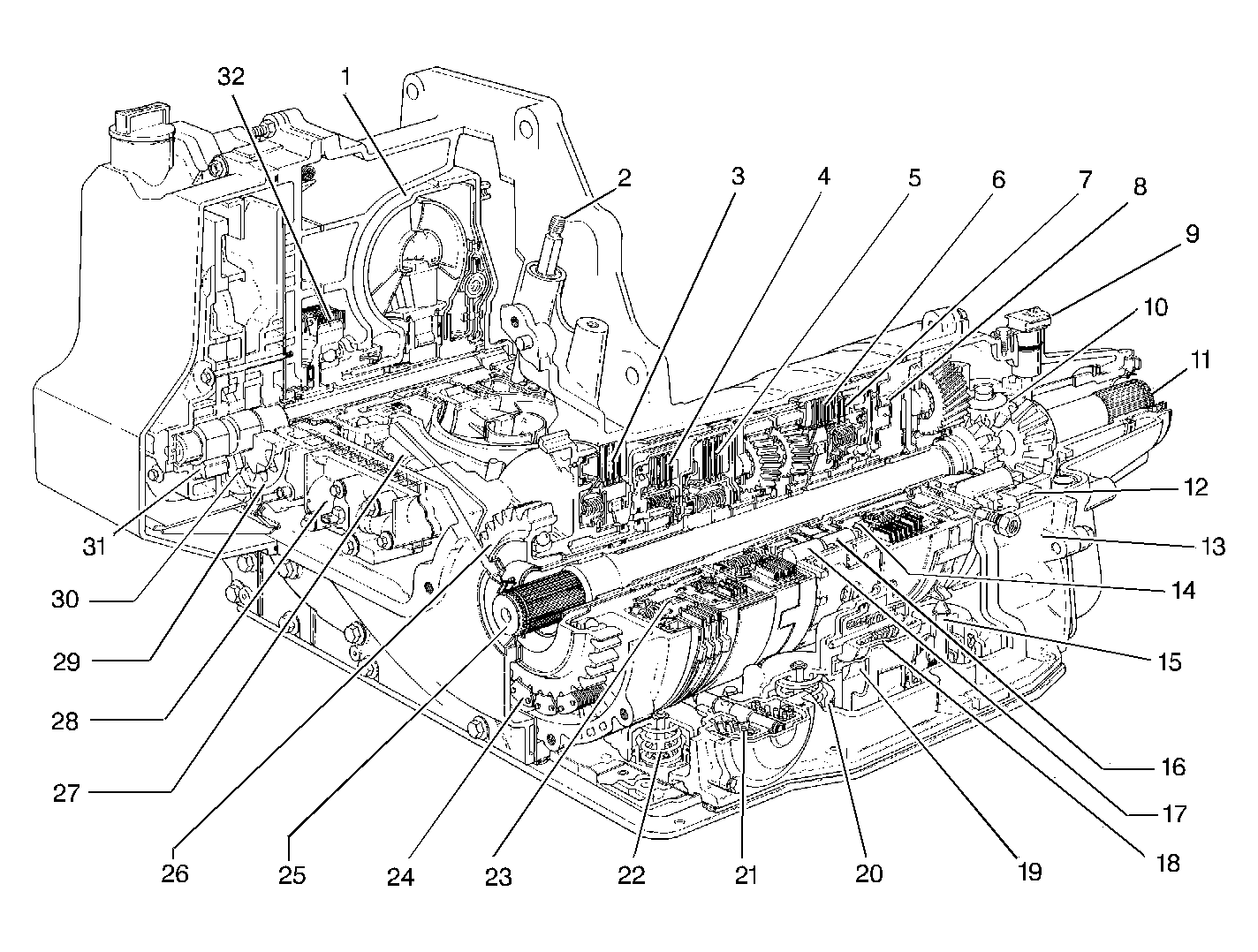

| Callout |
Component Name |
| 1 |
Torque Converter Assembly |
| 2 |
Manual Shaft |
| 3 |
2nd Clutch |
| 4 |
Reverse Clutch |
| 5 |
3rd Clutch |
| 6 |
Forward Clutch |
| 7 |
Coast Clutch |
| 8 |
Low Roller Clutch Assembly |
| 9 |
Output Speed Sensor Assembly |
| 10 |
Differential Assembly |
| 11 |
Output Shaft (Differential Side Gear) |
| 12 |
Final Drive Assembly |
| 13 |
Lube Fitting |
| 14 |
Forward Sprag Clutch Assembly |
| 15 |
Low/Reverse Servo Assembly |
| 16 |
Input Planetary Gear Set |
| 17 |
Reaction Planetary Gear Set |
| 18 |
Reverse Accumulator |
| 19 |
Forward Accumulator |
| 20 |
1-2 Accumulator |
| 21 |
4th Servo |
| 22 |
3-4 Accumulator |
| 23 |
2nd Sprag Clutch Assembly |
| 24 |
Drive Link Assembly |
| 25 |
Output Shaft |
| 26 |
Driven Sprocket |
| 27 |
Input Speed Sensor Assembly |
| 28 |
Upper Control Valve Body Assembly |
| 29 |
Secondary Pump Assembly |
| 30 |
Primary Pump Assembly |
| 31 |
Scavenge Pump Assembly |
| 32 |
Drive Sprocket |
Courtesy of GENERAL MOTORS CORP.

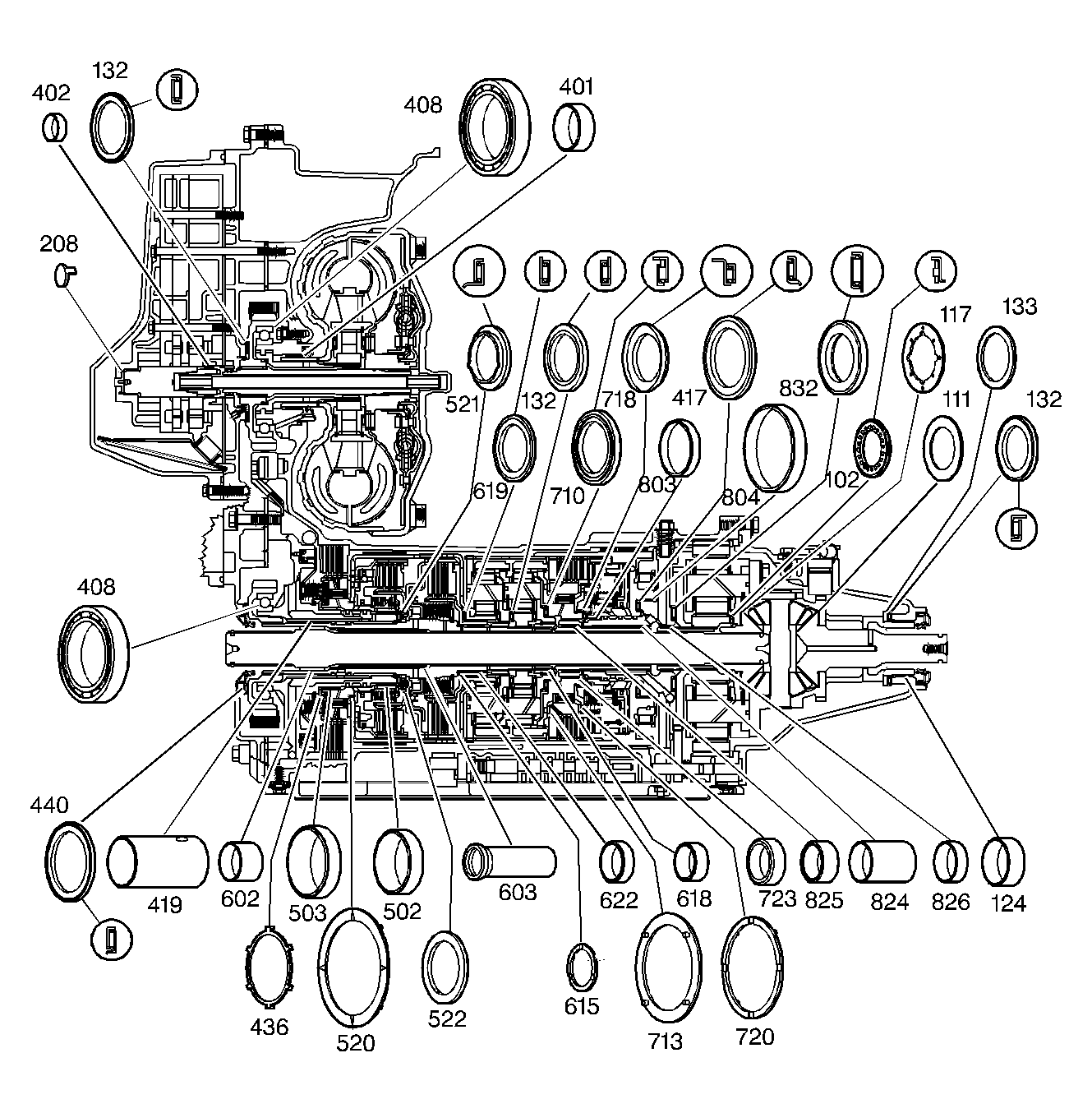

| Callout |
Component Name |
| 102 |
Final Drive Sun Gear/Final Drive Carrier Thrust Bearing |
| 111 |
Right Differential Thrust Washer |
| 117 |
Left Differential Thrust Washer |
| 124 |
Case Extension Bushing |
| 132 |
Thrust Bearing Assembly |
| 132 |
Thrust Bearing Assembly |
| 132 |
Thrust Bearing Assembly |
| 133 |
Differential Carrier/Case Extension Selective Thrust Washer |
| 208 |
Oil Pump Driven Shaft Thrust Washer |
| 401 |
Converter Hub Bushing |
| 402 |
Front Stator Shaft Bushing |
| 408 |
Ball Bearing (2) |
| 417 |
Thrust Bearing |
| 419 |
Oil Transfer Sleeve |
| 436 |
Support/Reverse Clutch Thrust Washer |
| 440 |
Thrust Bearing |
| 502 |
Small Bushing |
| 503 |
Large Bushing |
| 520 |
2nd Clutch Outer Race Washer |
| 521 |
Thrust Bearing |
| 522 |
Driven Sprocket Support Selective Thrust Washer |
| 602 |
Input Shaft Bushing |
| 603 |
Input Shaft/Oil Transfer Sleeve |
| 615 |
Input Shaft/3rd Hub Thrust Washer |
| 618 |
Hub Bushing |
| 619 |
Thrust Bearing Assembly |
| 622 |
Reaction Sun Gear Bushing |
| 710 |
Thrust Bearing Assembly |
| 713 |
Flange to Outer Race Thrust Washer |
| 718 |
Flange/Forward Clutch Housing Thrust Bearing |
| 720 |
Race/Coast Clutch Hub Thrust Washer |
| 723 |
Input Flange Bushing |
| 803 |
Small Housing Bushing |
| 804 |
Large Housing Bushing |
| 824 |
Oil Transfer Sleeve |
| 825 |
Left Support/Sun Shaft Bushing |
| 826 |
Right Support/Sun Shaft Bushing |
| 832 |
Forward Clutch Support/Park Gear Thrust Bearing |
Courtesy of GENERAL MOTORS CORP.

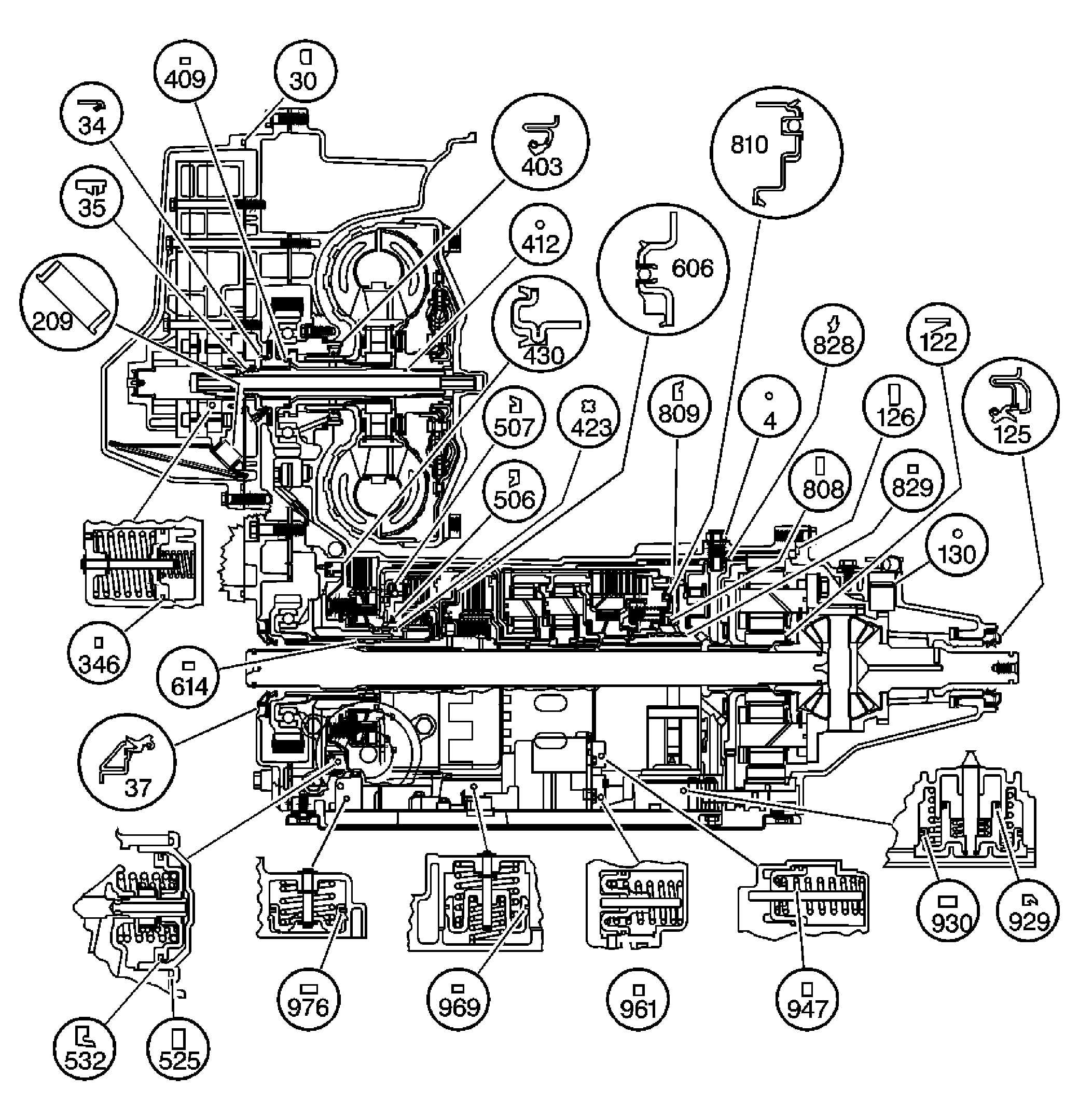

| Callout |
Component Name |
| 4 |
Connector, O-Ring Cooler (Return) |
| 30 |
Gasket, Side Cover to Case Cover |
| 34 |
Seal, Case Cover to Drive Sprocket |
| 35 |
Seal, Case Cover to Turbine Shaft |
| 37 |
Seal, Axle Case Cover |
| 122 |
Seal, Final Drive Sun Gear |
| 125 |
Seal, Axle to Case Extension |
| 126 |
Seal, Case Extension to Case |
| 130 |
Sensor, Speed Output Assembly |
| 209 |
Seal, Filter |
| 346 |
Seal, 2-3 Accumulator Piston |
| 403 |
Seal, Converter Hub Assembly |
| 409 |
Ring, Drive Sprocket Oil Seal |
| 412 |
Seal, O-Ring |
| 423 |
Ring, 4 Lobe Seal (2) |
| 430 |
Piston Assembly, 2nd Clutch |
| 506 |
Seal (Inner) |
| 507 |
Seal (Outer) |
| 525 |
Seal, Servo Cover |
| 532 |
Seal, 4th Servo Piston |
| 606 |
Piston Assembly, 3rd Clutch |
| 614 |
Ring, Oil Seal (2) |
| 808 |
Forward Clutch Piston Seal (Inner) |
| 809 |
Forward Clutch Piston Seal (Outer) |
| 810 |
Piston Assembly, Coast Clutch |
| 828 |
Seal, Cooler Return |
| 829 |
Ring, Oil Seal (Support/Housing) (3) |
| 929 |
Seal, Low/Reverse Servo (Small) |
| 930 |
Seal, Low/Reverse Servo (Large) |
| 947 |
Seal, Reverse Accumulator |
| 961 |
Seal, Forward Accumulator |
| 969 |
Seal, 1-2 Accumulator |
| 976 |
Seal, 3-4 Accumulator |
