Inline, Automatic Transmission Wiring Harness Assembly Side

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

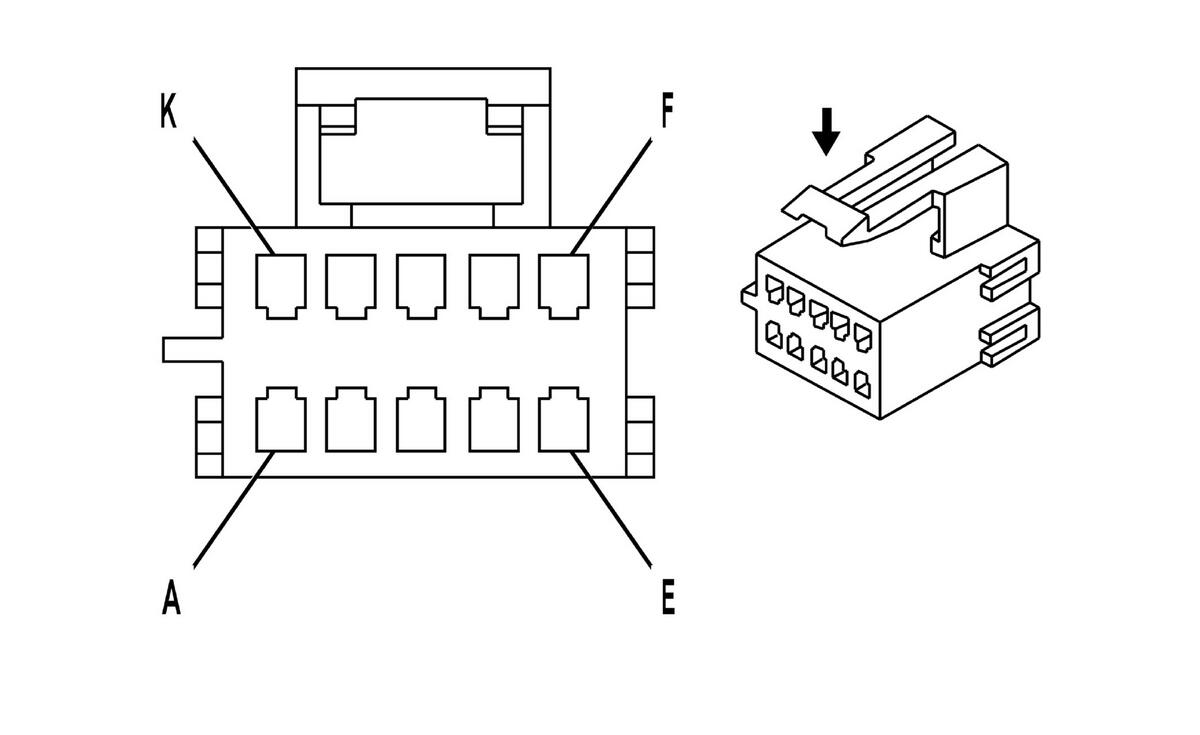

Fig 1: Inline, Automatic Transmission Wiring Harness Assembly Side Connector End View
GM603055Courtesy of GENERAL MOTORS CORP.
Inline, Automatic Transmission Wiring Harness Assembly Side Parts Information

Connector Part Information
  • OEM: 15324054
  • Service: See Catalog
  • Description: Connector 10-Way F Metri-Pack 150 Series (BK)
Inline, Automatic Transmission Wiring Harness Assembly Side Terminal Identification

Pin Wire Color Circuit No. Function
A RD 539 Ignition 1 Voltage
B L-GN 1222 Shift Solenoid Valve Control A
C YE 1223 Shift Solenoid Valve Control B
D BU/WH 772 Transmission Range Switch Signal B
E BK/WH 1551 Ground
F YE/BK 773 Transmission Range Switch Signal C
G GY/WH 776 Transmission Range Switch Signal P
H RD/BK 771 Transmission Range Switch Signal A
J BK 1786 Park/Neutral Signal
K - - Not Used
