Automatic Transmission Electronic Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

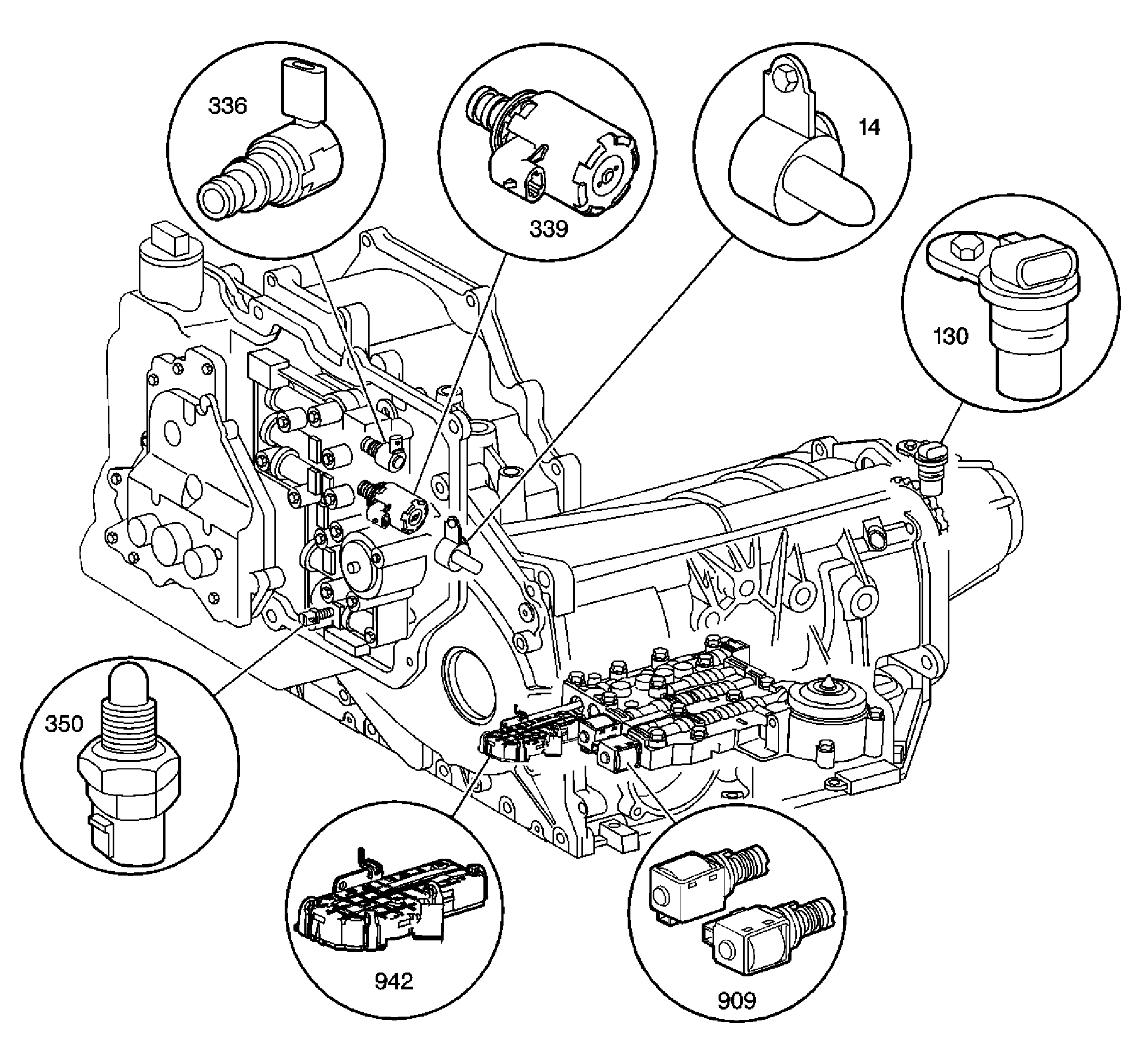

| Callout |
Component Name |
| 14 |
Automatic Transmission Input (Shaft) Speed Sensor (ISS) |
| 130 |
Vehicle Speed Sensor (VSS) |
| 336 |
Torque Converter Clutch (TCC) Solenoid Valve |
| 339 |
Pressure Control Solenoid (PCS) Valve |
| 350 |
Automatic Transmission Fluid Temperature (TFT) Sensor |
| 909 |
1-2 and 2-3 Shift Solenoid (1-2 SS) (2-3 SS) Valves |
| 942 |
Internal Mode Switch (IMS) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Transmission Control Module (TCM) |
| 2 |
Fasteners |
| 3 |
Transmission Control Module (TCM) Bracket |
