Removal Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

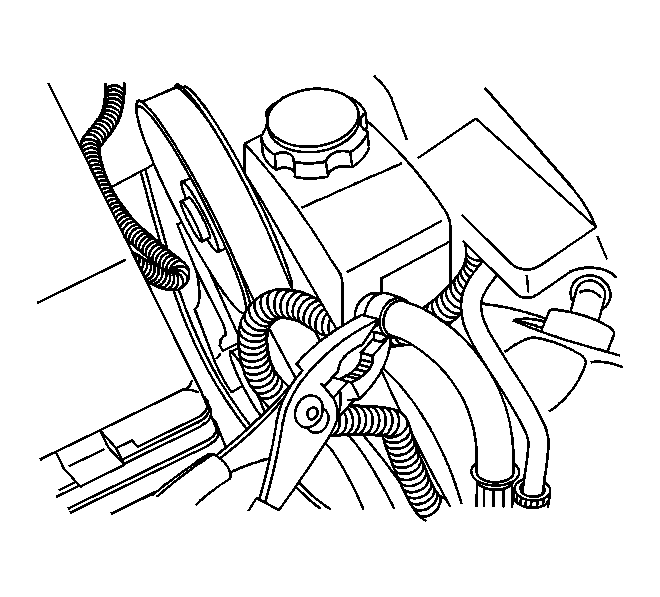

    Fig 1: Identifying Power Steering Return Hose
    GM284266Courtesy of GENERAL MOTORS CORP.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Install a drain pan under the vehicle.
  3. Disconnect the power steering return hose from the power steering reservoir.

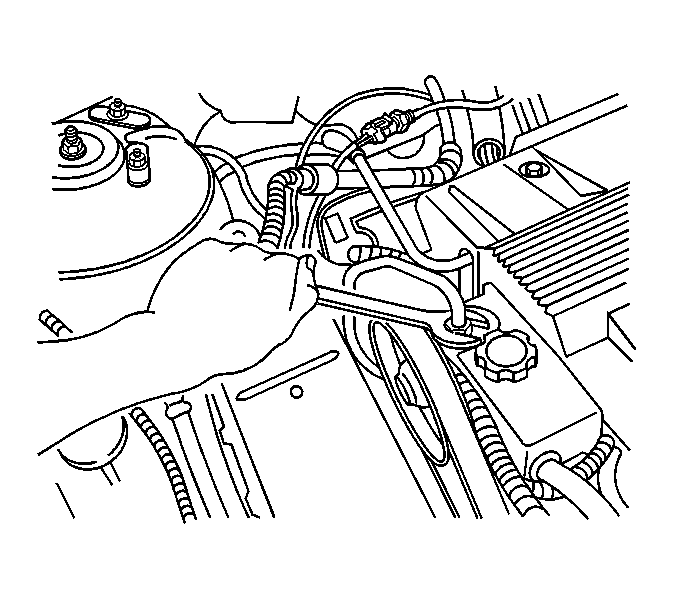

    4. Fig 2: View Of Power Steering Pressure Hose & Power Steering Pump
    GM284268Courtesy of GENERAL MOTORS CORP.
  4. Remove the power steering pressure hose from the power steering pump.

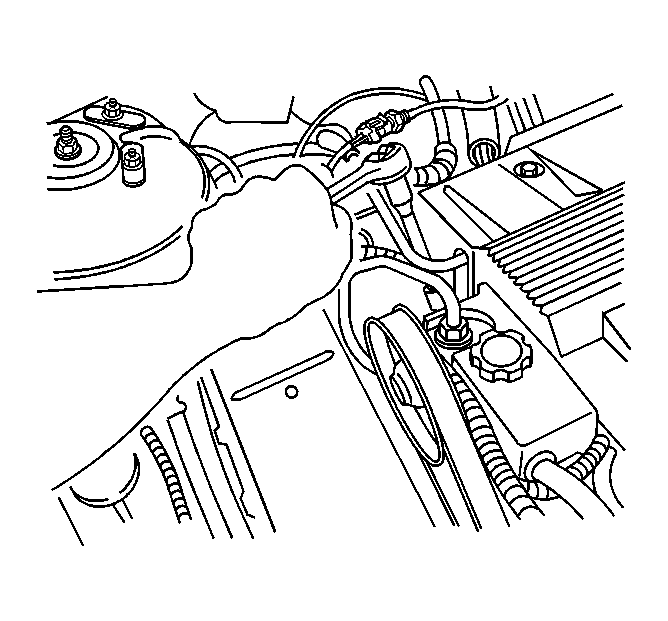

    5. Fig 3: Identifying Power Steering Pump Mounting Bolt
    GM284267Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering pump mounting bolt.
    6. Fig 4: View of Power Steering Pump
    GM105222Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering pump from the vehicle.
  7. Remove the power steering pulley. Refer to Power Steering Pulley Replacement .
  8. Remove the power steering reservoir. Refer to Power Steering Reservoir Replacement - Off Vehicle .
