Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Power Steering Pump Pulley Installer

Courtesy of GENERAL MOTORS CORP.

Using J 25033-C install the power steering pulley to the power steering pump. See Special Tools .

Fig 2: Measuring Axial Tolerance Of Power Steering Pulley On Pump

Courtesy of GENERAL MOTORS CORP.

Ensure that the axial tolerance of the power steering pulley on the power steering pump is within 0.25 mm (0.010 in), plus or minus.
Install the drive belt. Refer to Drive Belt Replacement .

Fig 3: View Of Surge Tank, Nuts & Screw

Courtesy of GENERAL MOTORS CORP.

Install the surge tank (1) to the vehicle.

NOTE: Refer to Fastener Notice.

Install the surge tank retaining bolt (3) and nut (2).
Tighten: Tighten the surge tank retaining bolt (3) and nut (2) to 6 N.m (53 lb in).

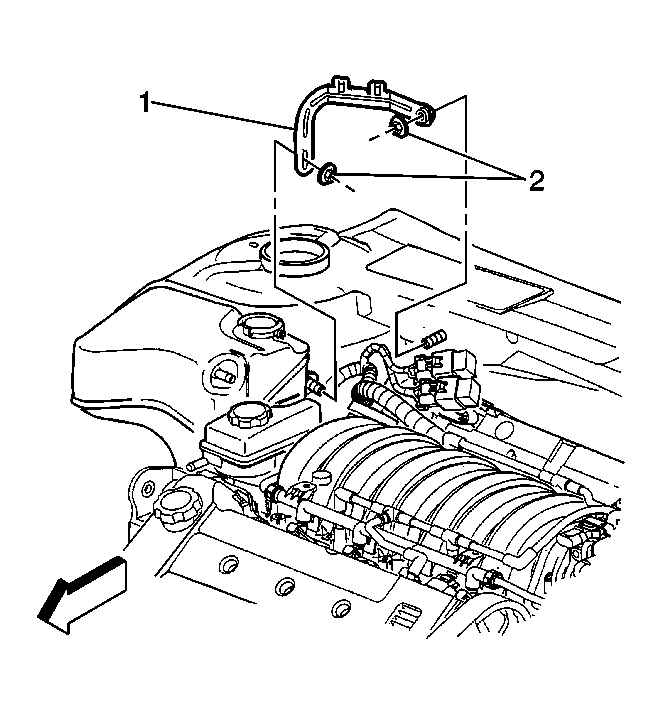

Fig 4: View Of Secondary AIR Relay Bracket & Nuts

Courtesy of GENERAL MOTORS CORP.

Install the secondary AIR relay bracket to the mounting studs.
Install the secondary AIR relay bracket retaining nuts.
Tighten: Tighten the secondary AIR relay bracket retaining nuts (2) to 6 N.m (53 lb in).
