Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Park Brake Cable & Caliper

Courtesy of GENERAL MOTORS CORP.

Install the park brake cable (1) into the bracket on the brake caliper (3).
Slide the park brake cable forward and install to the park brake actuator lever (2).
NOTE: Refer to Fastener Notice .

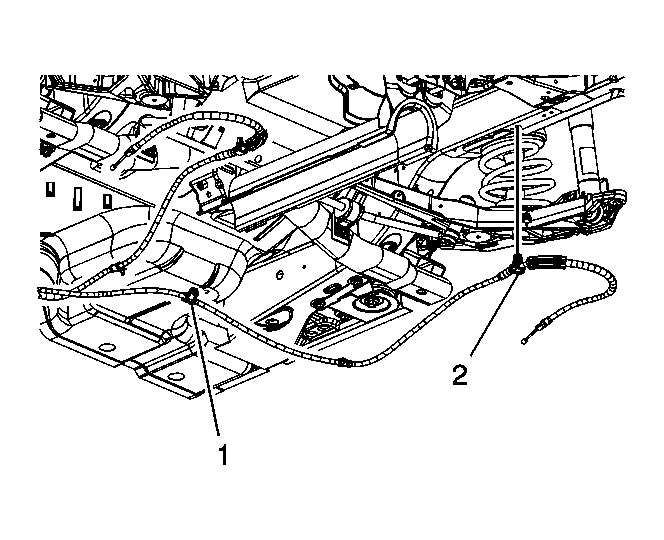

Fig 2: Removing/Installing Retainer Bolts
Courtesy of GENERAL MOTORS CORP.
Install the 2 retaining bolts (1).
Tighten: Tighten the retaining bolts to 6 N.m (53 lb in).
Install the retaining clip (2).

Fig 3: Removing/Installing Rear Park Brake Cable
Courtesy of GENERAL MOTORS CORP.
Install the left park brake cable (2) to the equalizer (1).

Fig 4: Removing/Installing Front Park Brake Cable
Courtesy of GENERAL MOTORS CORP.
Install the right rear brake cable (4) to the equalizer (3).
Install the front brake cable (1) in the connector (2).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
