Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Park Brake Cable & Caliper

Courtesy of GENERAL MOTORS CORP.

Install the park brake cable (1) into the bracket on the brake caliper (3).
Slide the park brake cable forward and install to the park brake actuator lever (2).
NOTE: Refer to Fastener Notice .

Fig 2: Locating Cable Retaining Bolt
Courtesy of GENERAL MOTORS CORP.
Install the retaining bolt (2).
Tighten: Tighten the retaining bolt to 6 N.m (53 lb in).
Install the retaining clip (1).

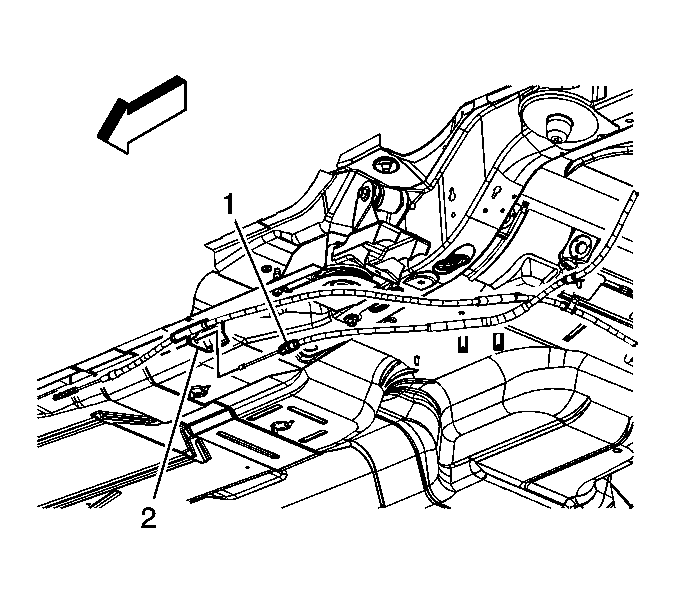

Fig 3: Identifying Left Rear Brake Cable In The Retainer
Courtesy of GENERAL MOTORS CORP.
Install the left rear brake cable in the retainer (1).

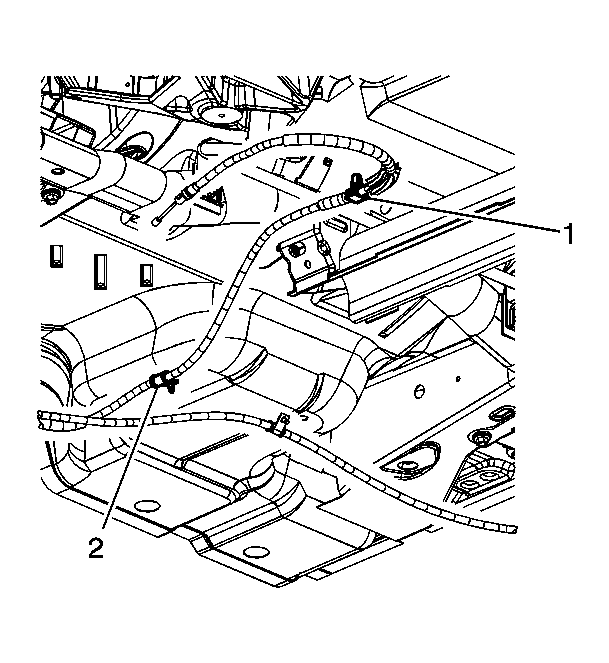

Fig 4: Removing/Installing Left Park Brake Cable
Courtesy of GENERAL MOTORS CORP.
Install the left rear brake cable (1) in the retaining bracket (2).

Fig 5: Removing/Installing Rear Park Brake Cable
Courtesy of GENERAL MOTORS CORP.
Install the left rear brake cable (3) to the equalizer (1).

Fig 6: Identifying Front Brake Cable & Connector
Courtesy of GENERAL MOTORS CORP.
Install the front brake cable (1) in the connector (2).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle. Refer to Lifting and Jacking the Vehicle .
