Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the plug from the brake caliper inlet port, if necessary.

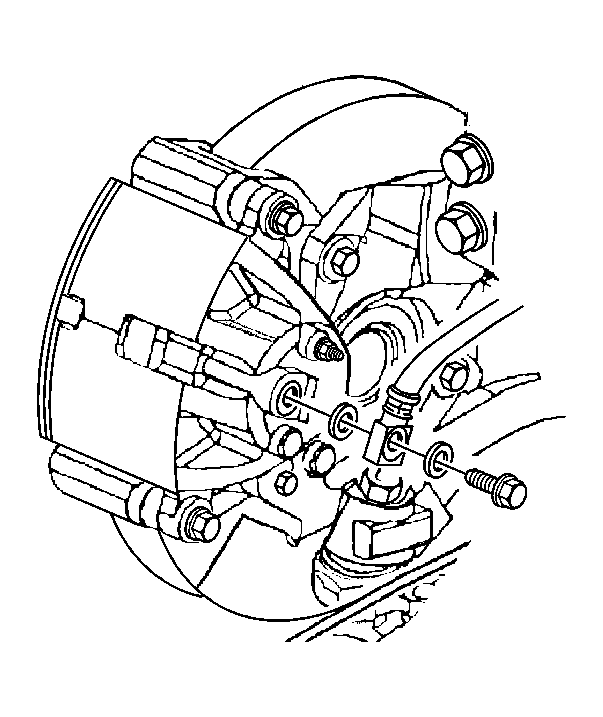

Fig 1: Brake Hose To Caliper View

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Install NEW copper brake hose gaskets.

Assemble the brake hose bolt and the NEW copper brake hose gaskets to the brake hose.

NOTE: Refer to Fastener Notice .

Install the brake hose to caliper bolt.
Tighten:
- Tighten the brake hose to caliper bolt to 40 N.m (30 lb ft) (JL9).
- Tighten the brake hose to caliper bolt to 45 N.m (33 lb ft) (J55).

Fig 2: Removing/Installing Brake Hose

Courtesy of GENERAL MOTORS CORP.

NOTE: Make sure the brake hose is not twisted or kinked after installation. Damage to the hose could result.

Install the brake hose to the brake hose bracket.
Install the brake hose retainer to the brake hose.

Fig 3: Removing/Installing Brake Pipe Fitting To/From Brake Hose

Courtesy of GENERAL MOTORS CORP.

Remove the cap from the exposed brake pipe fitting end.
Install the brake pipe fitting to the brake hose.
Tighten: Tighten the brake pipe fitting to 15 N.m (11 lb ft).

Fig 4: Locating Brake Hose Retainer Bolt

Courtesy of GENERAL MOTORS CORP.

Install the hose bracket and bolt to the strut assembly.
Tighten: Tighten the bolt to 17 N.m (13 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) or Hydraulic Brake System Bleeding (Pressure) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
