Hydraulic Brake Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

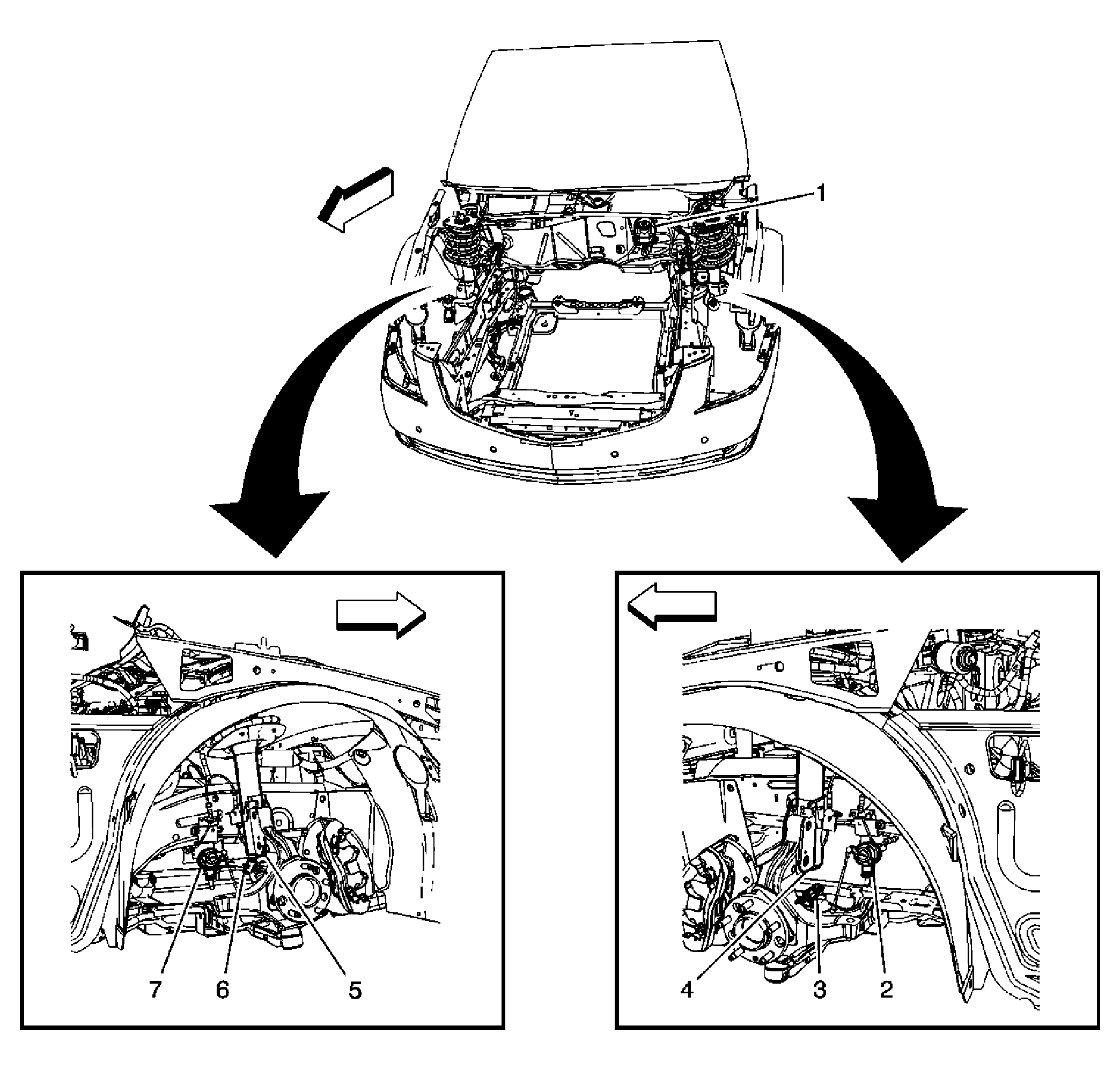

| Callout |
Component Name |
| 1 |
Brake Fluid Switch |
| 2 |
Suspension Position Sensor - LF |
| 3 |
Wheel Speed Sensors (WSS) - LF |
| 4 |
Suspension Damper - LF |
| 5 |
Suspension Damper - RF |
| 6 |
Wheel Speed Sensors (WSS) - RF |
| 7 |
Suspension Position Sensor - RF |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Park Brake Switch |
| 2 |
Instrument Cluster |
| 3 |
Brake Pedal Position Sensor |
| 4 |
Accelerator Pedal Position (APP) Sensor |
