Sunroof Component Views
WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Sunshade - Left Rear (DC5) |
| 2 |
Rear Park Assist Indicator (UFR) |
| 3 |
Courtesy Lamp - Right Rear (V4U) |
| 4 |
Sunshade - Right Rear (DC5) |
| 5 |
Garage Door Opener Transmitter (UG1) |
| 6 |
Noise Compensation Microphone (UQA) |
| 7 |
Courtesy Lamp - Right Front (V4U) |
| 8 |
Sunshade - Right Front |
| 9 |
Sunshade Switch (DE9) |
| 10 |
Inflatable Restraint I/P Module Indicator |
| 11 |
Inside Rearview Mirror (ISRVM) |
| 12 |
Onstar Button Assembly (UE1) |
| 13 |
Sunroof Switch (CF5) |
| 14 |
Sunshade - Left Front (- V4U) |
| 15 |
Courtesy Lamp - Left Front (V4U) |
| 16 |
Cellular Microphone (UE1/U3Q/U3R/U3U) |
| 17 |
Courtesy Lamp - Left Rear (V4U) |
Courtesy of GENERAL MOTORS CORP.

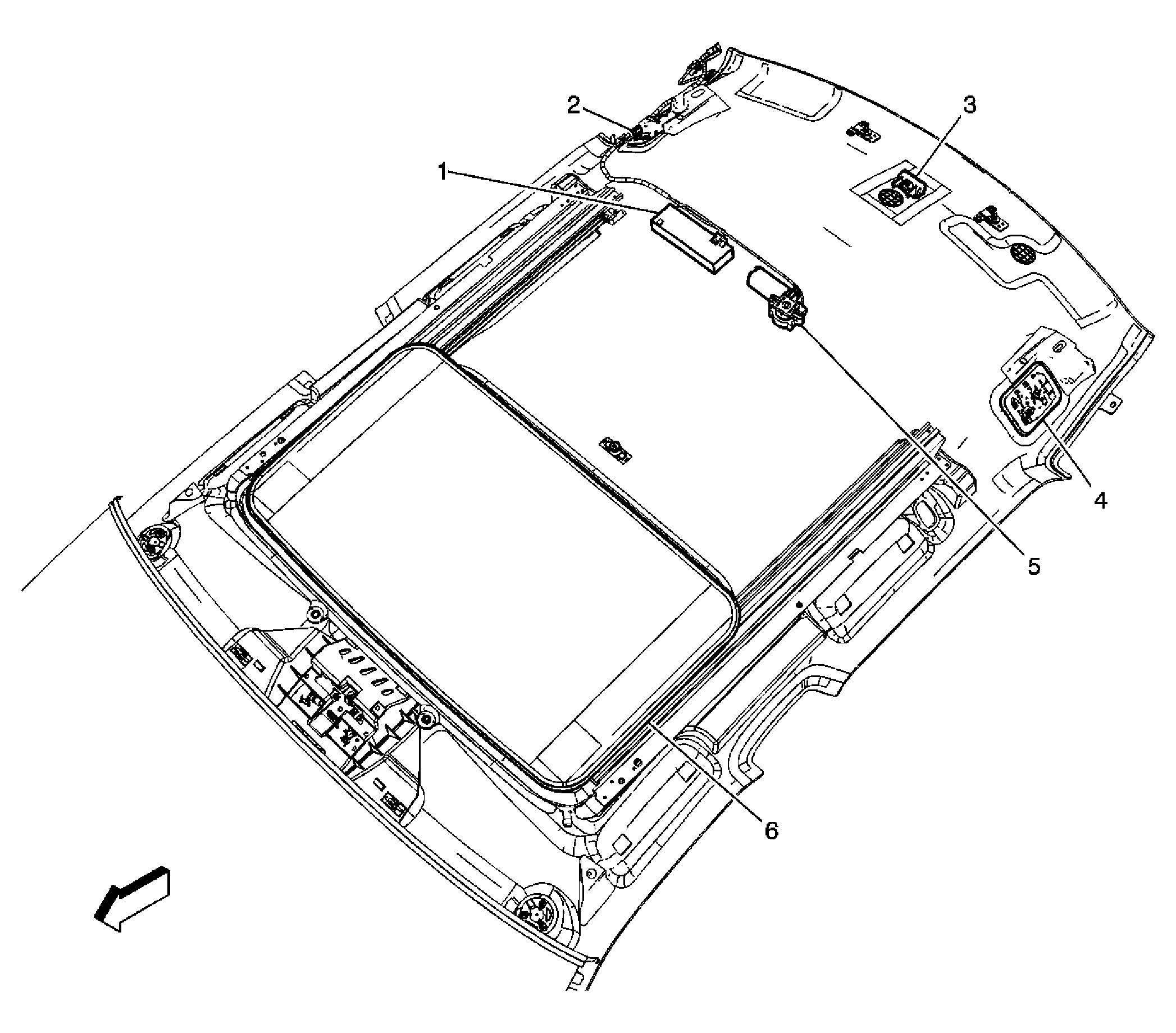

| Callout |
Component Name |
| 1 |
Sunroof Control Module (CF5) |
| 2 |
Courtesy Lamp - RR (w/o V4U) |
| 3 |
Rear Park Assist Indicator |
| 4 |
Courtesy Lamp - LR (w/o V4U) |
| 5 |
Sunroof Motor (CF5) |
| 6 |
Sunroof Assembly |
