Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

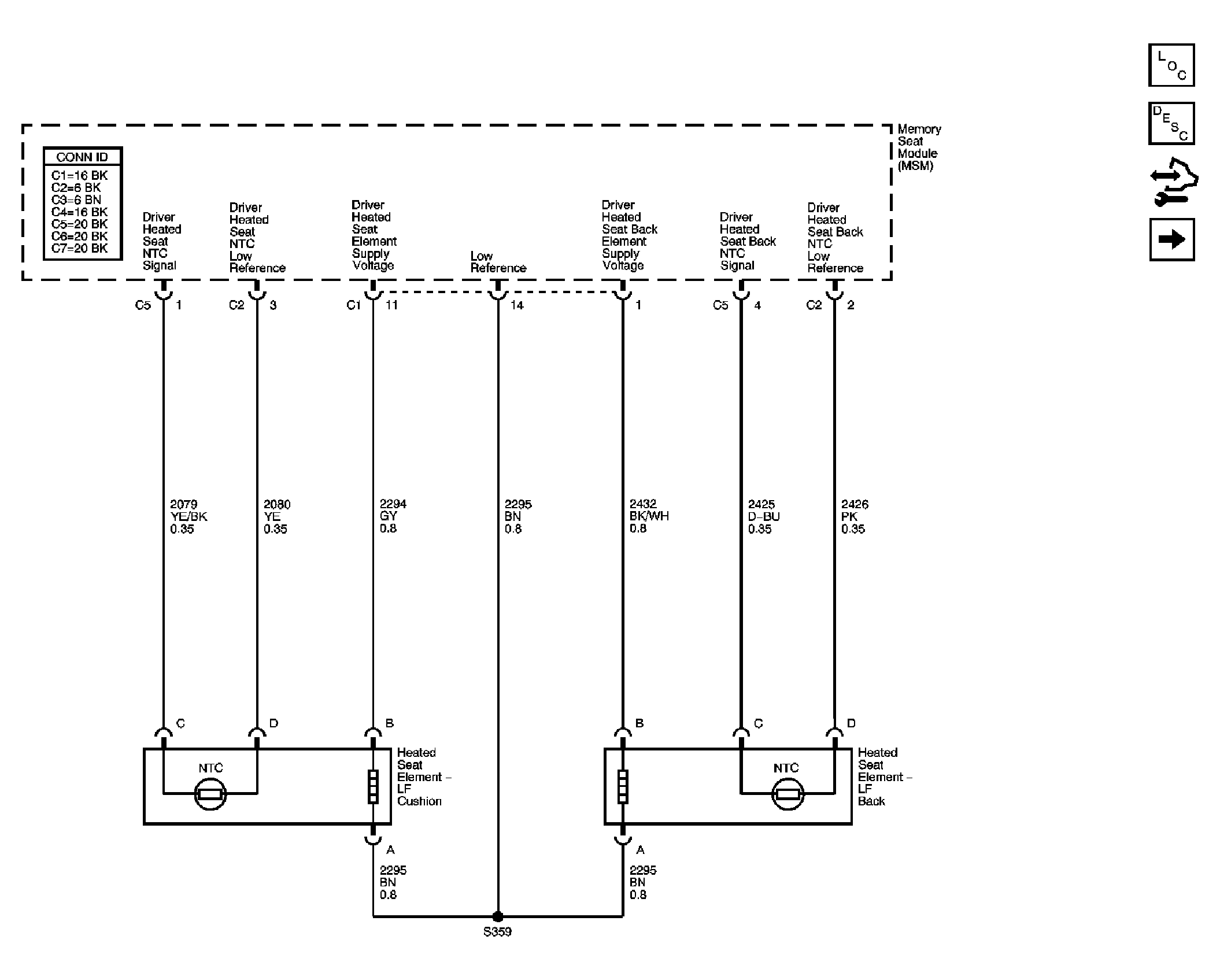

Fig 1: Driver Heated Seat Schematics - KA1

Courtesy of GENERAL MOTORS CORP.

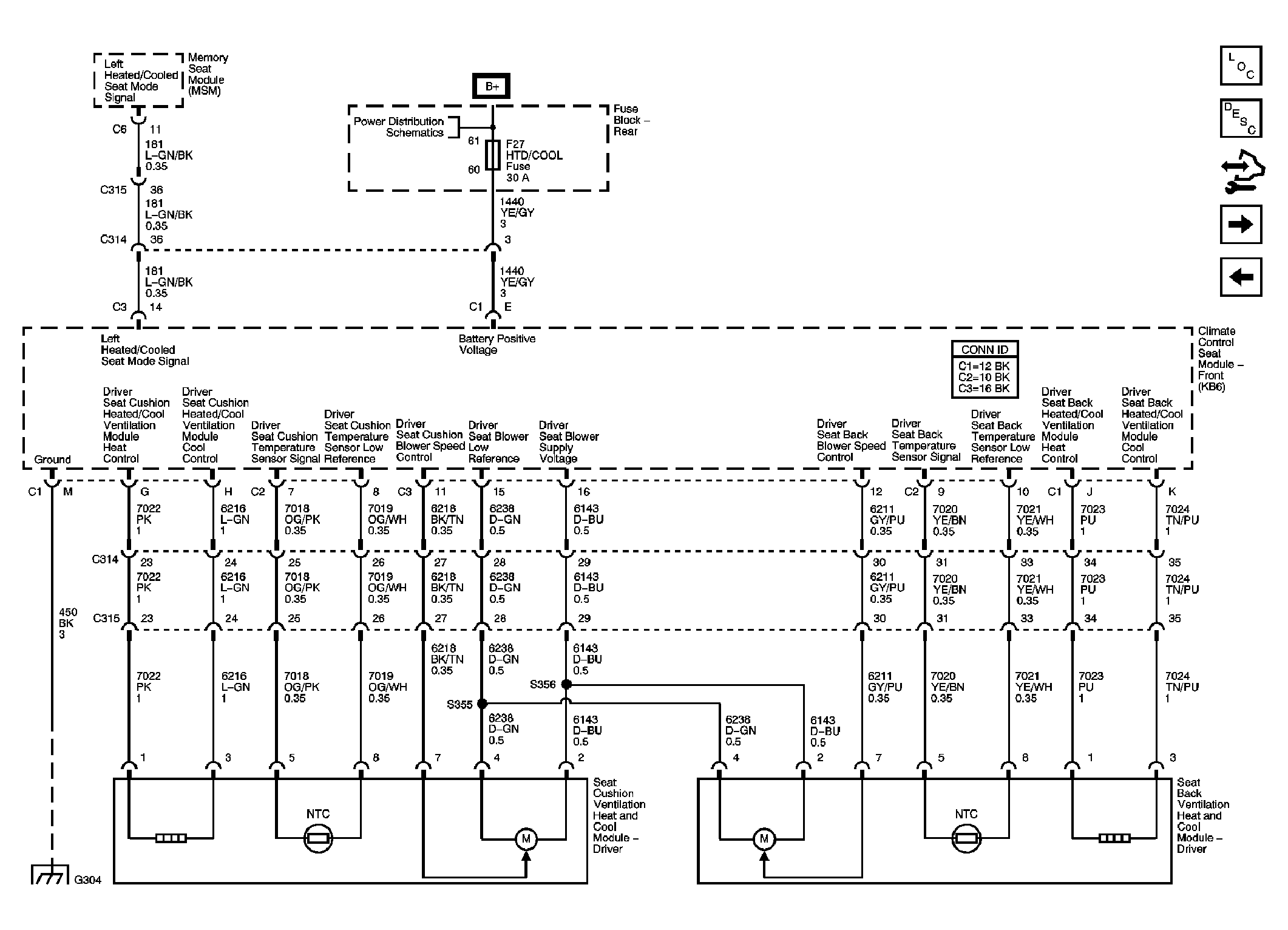

Fig 2: Driver Heated and Cooled Seat Schematics - KB6

Courtesy of GENERAL MOTORS CORP.

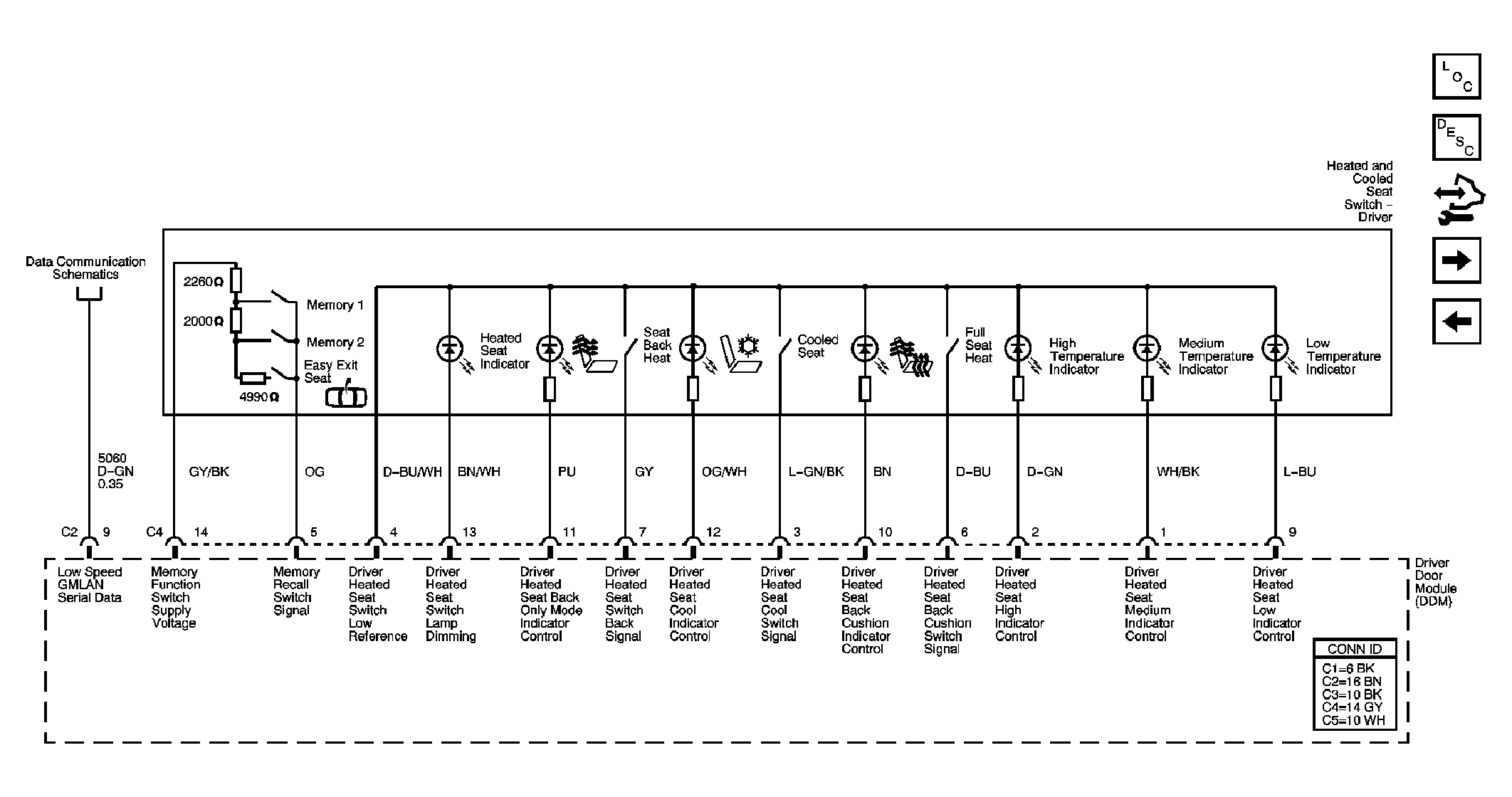

Fig 3: Driver Heated/Cooled Seat Switch Schematics - KA1/KB6

Courtesy of GENERAL MOTORS CORP.

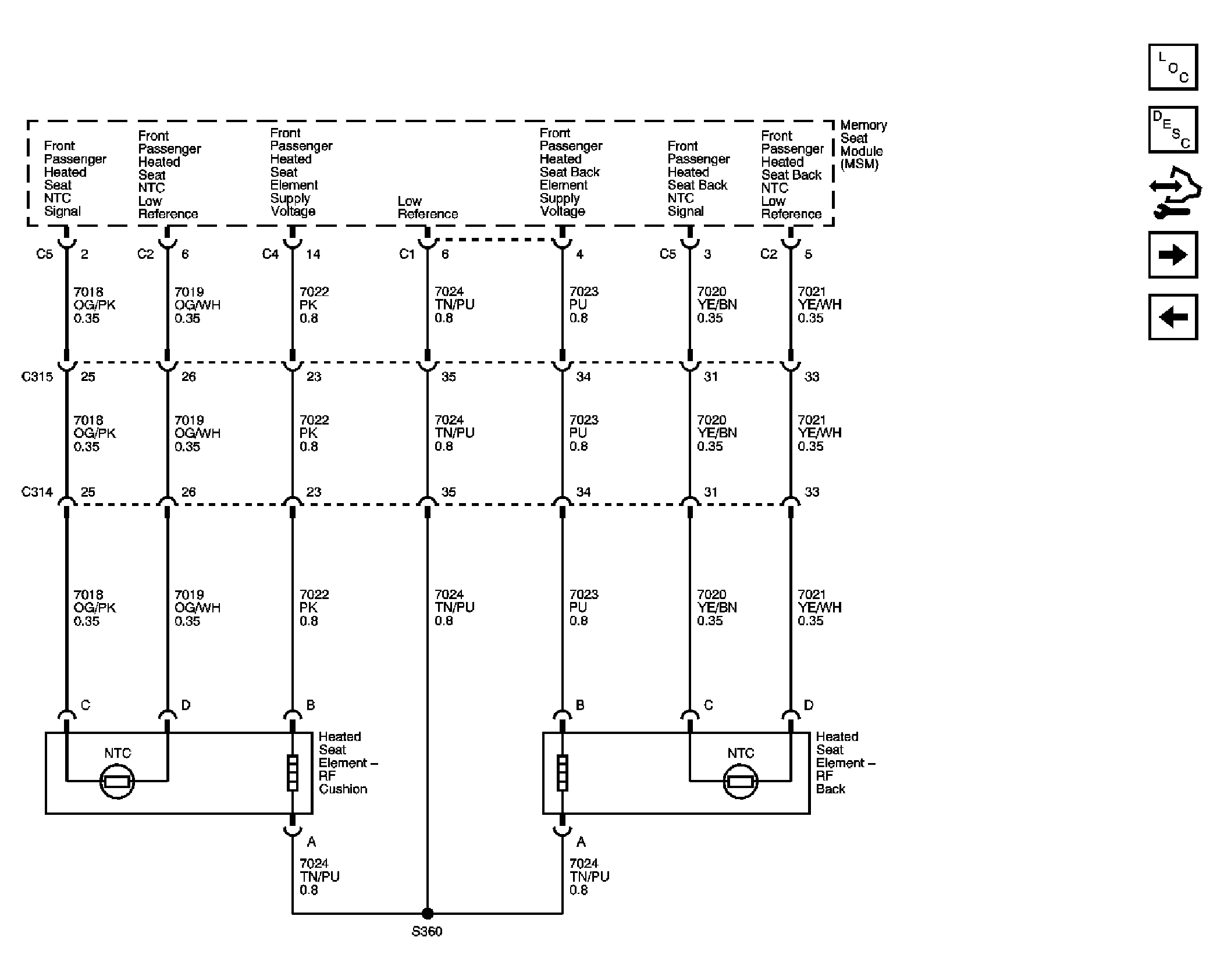

Fig 4: Passenger Heated Seat Schematics - KA1

Courtesy of GENERAL MOTORS CORP.

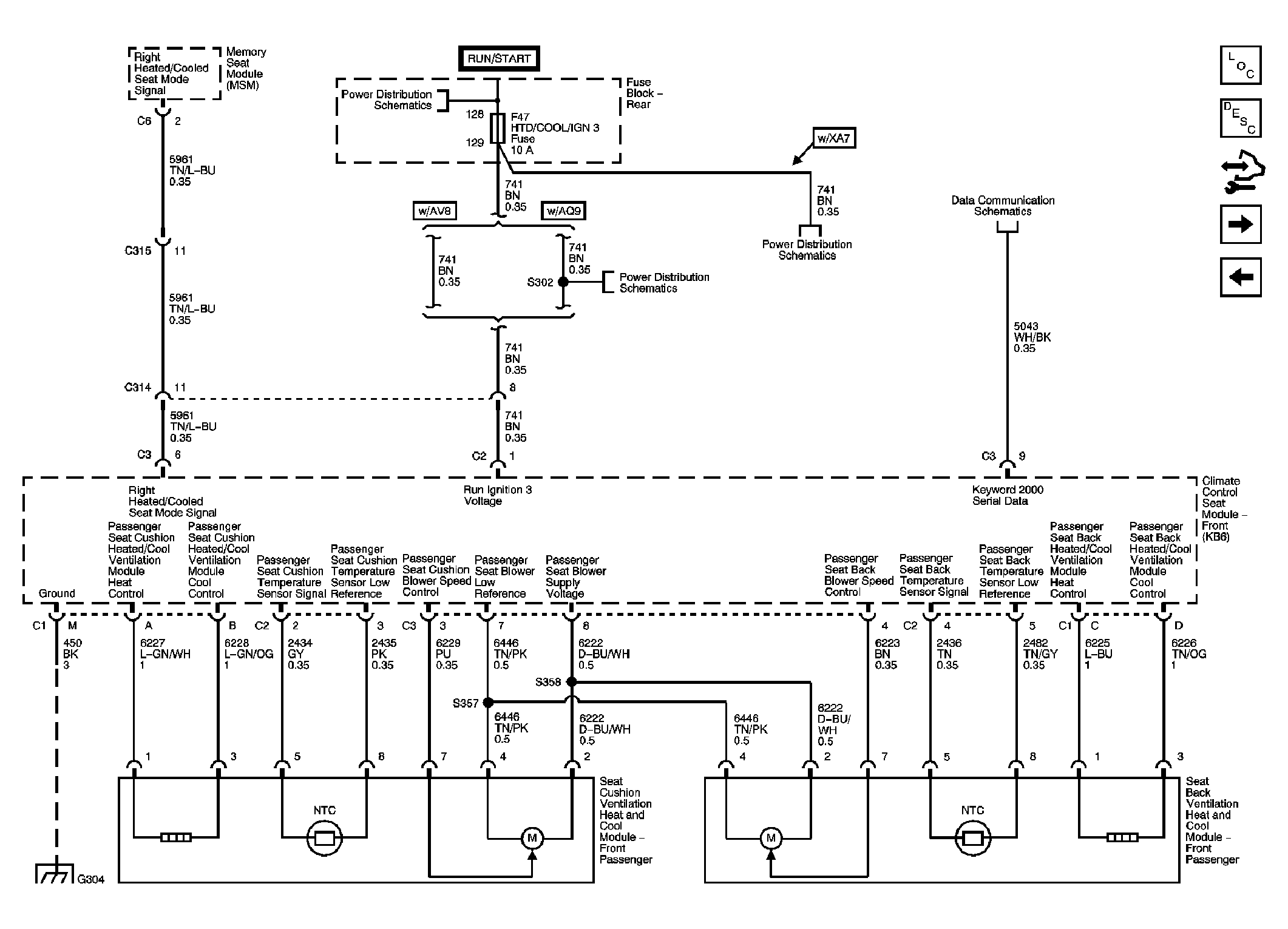

Fig 5: Passenger Heated and Cooled Seat Schematics - KB6

Courtesy of GENERAL MOTORS CORP.

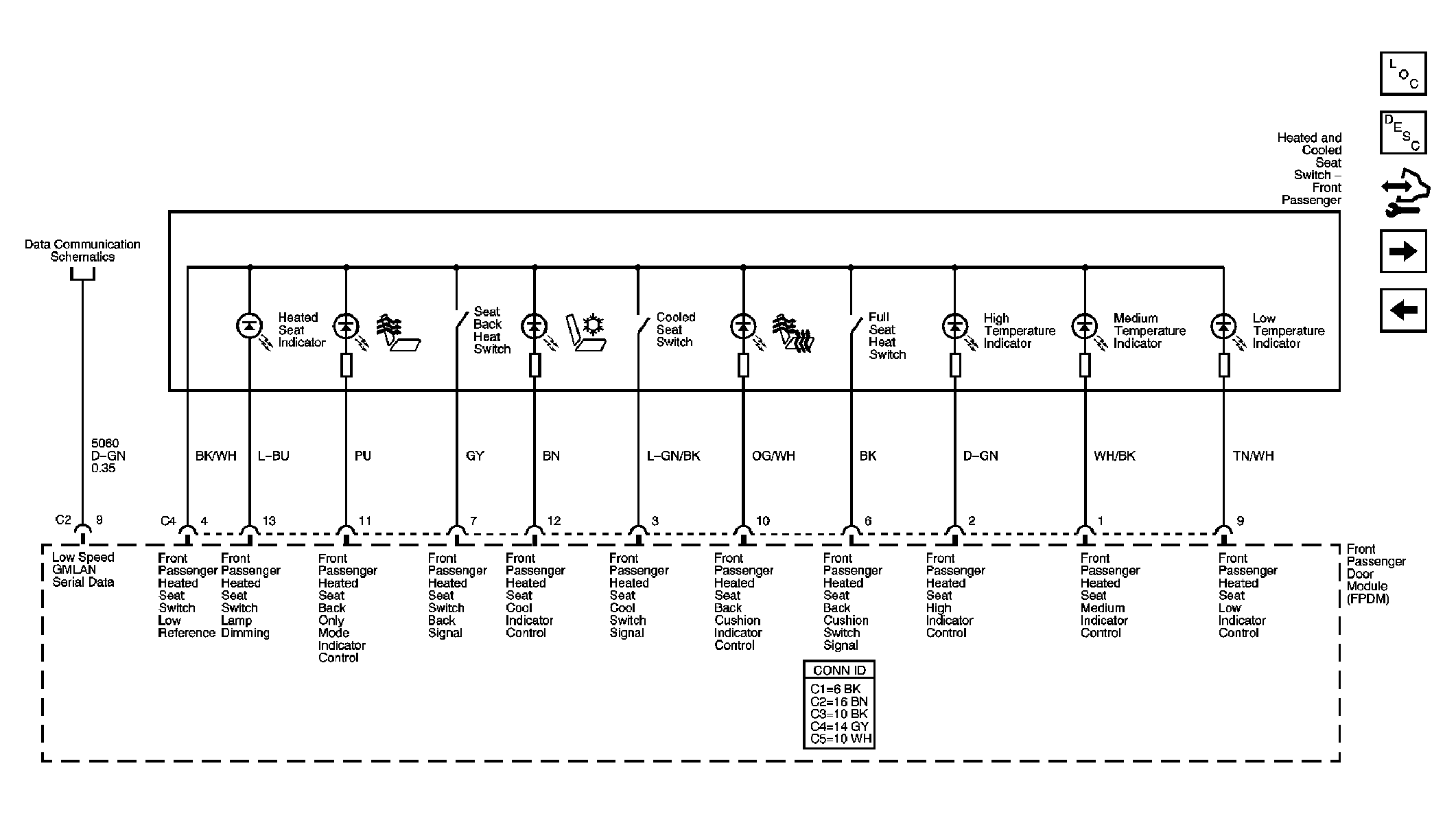

Fig 6: Passenger Heated/Cooled Seat Switch Schematics - KA1/KB6

Courtesy of GENERAL MOTORS CORP.

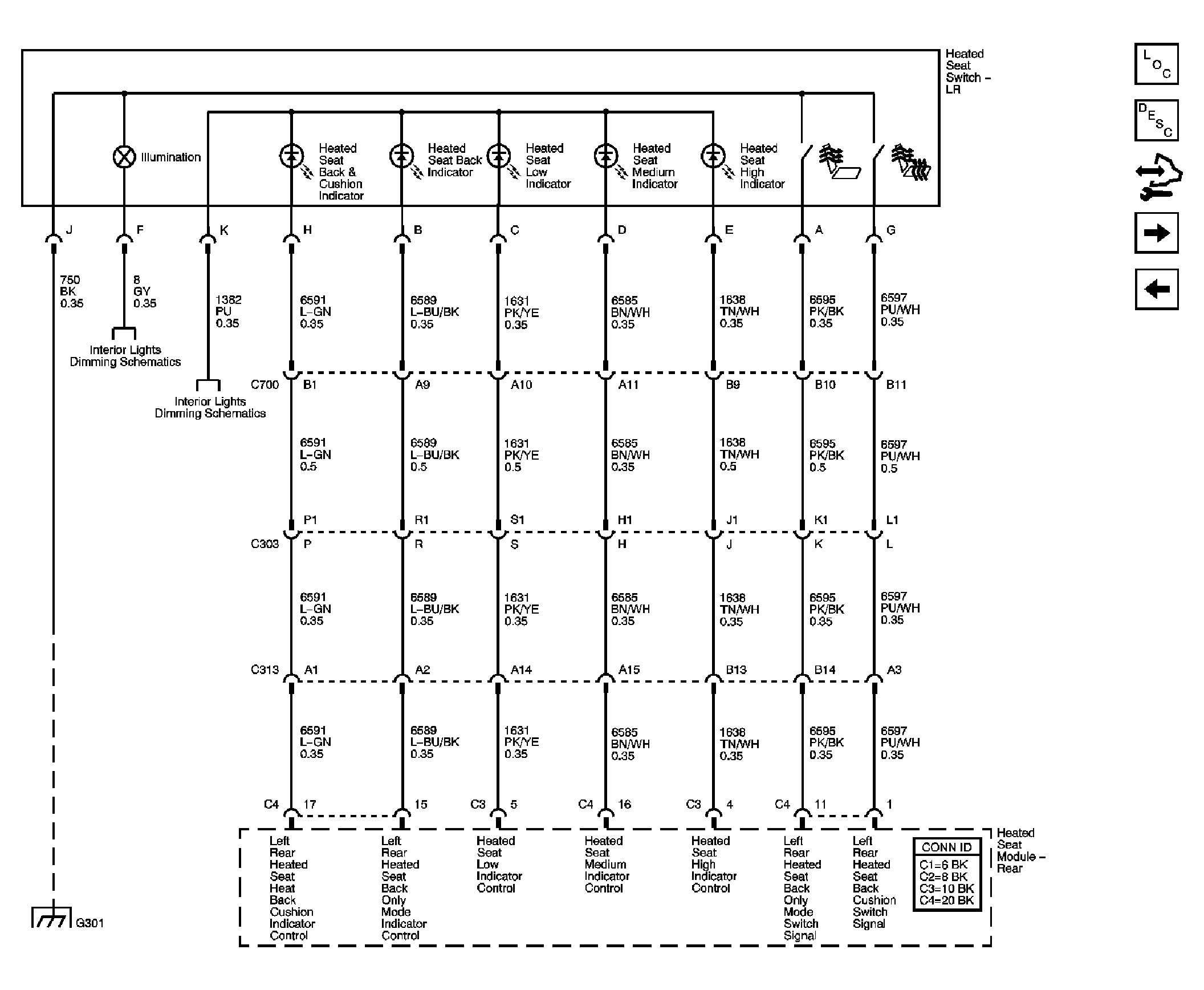

Fig 7: Left Rear Heated Seat Switch Schematics - w/KA6

Courtesy of GENERAL MOTORS CORP.

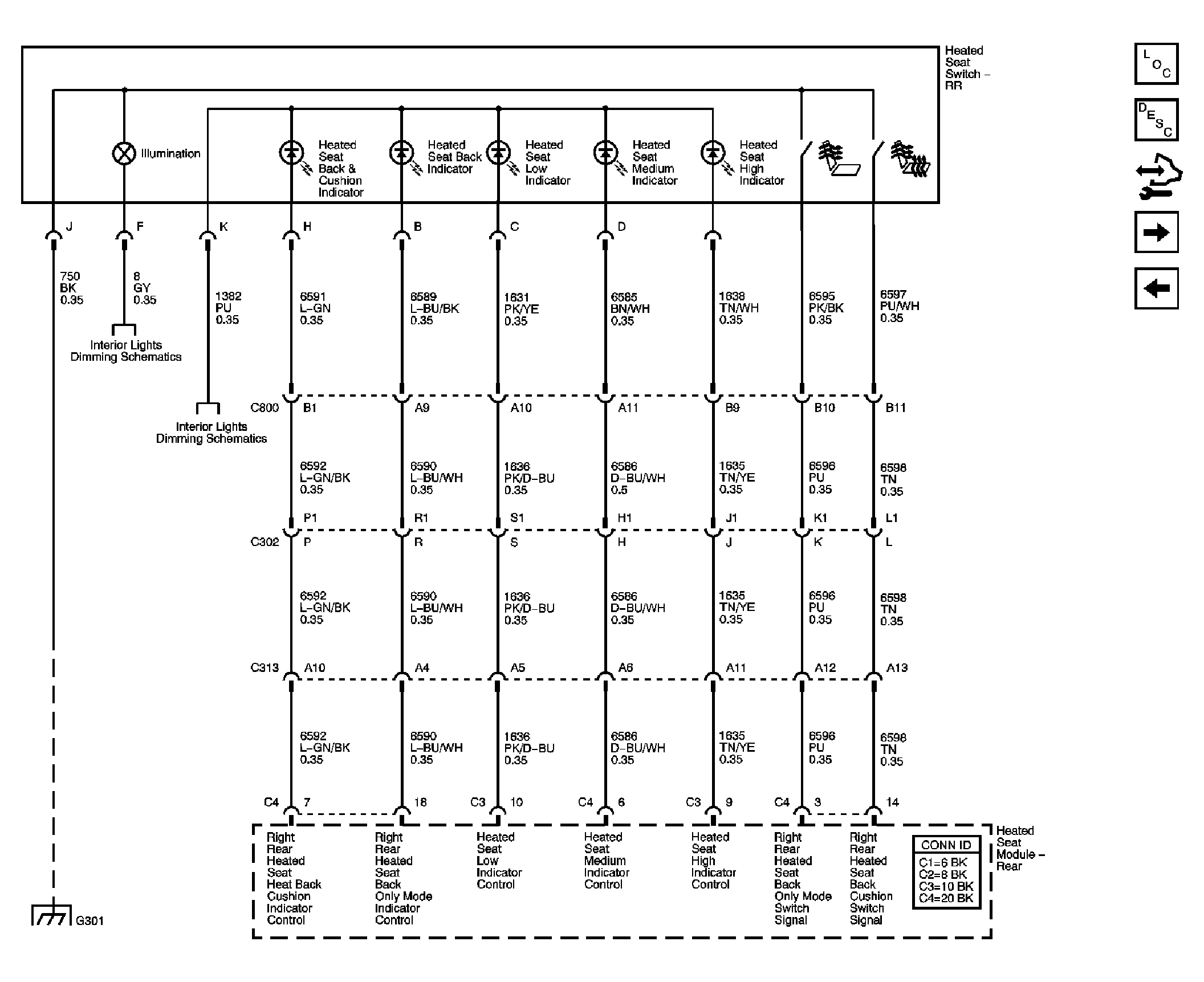

Fig 8: Right Rear Heated Seat Switch Schematics - w/KA6

Courtesy of GENERAL MOTORS CORP.

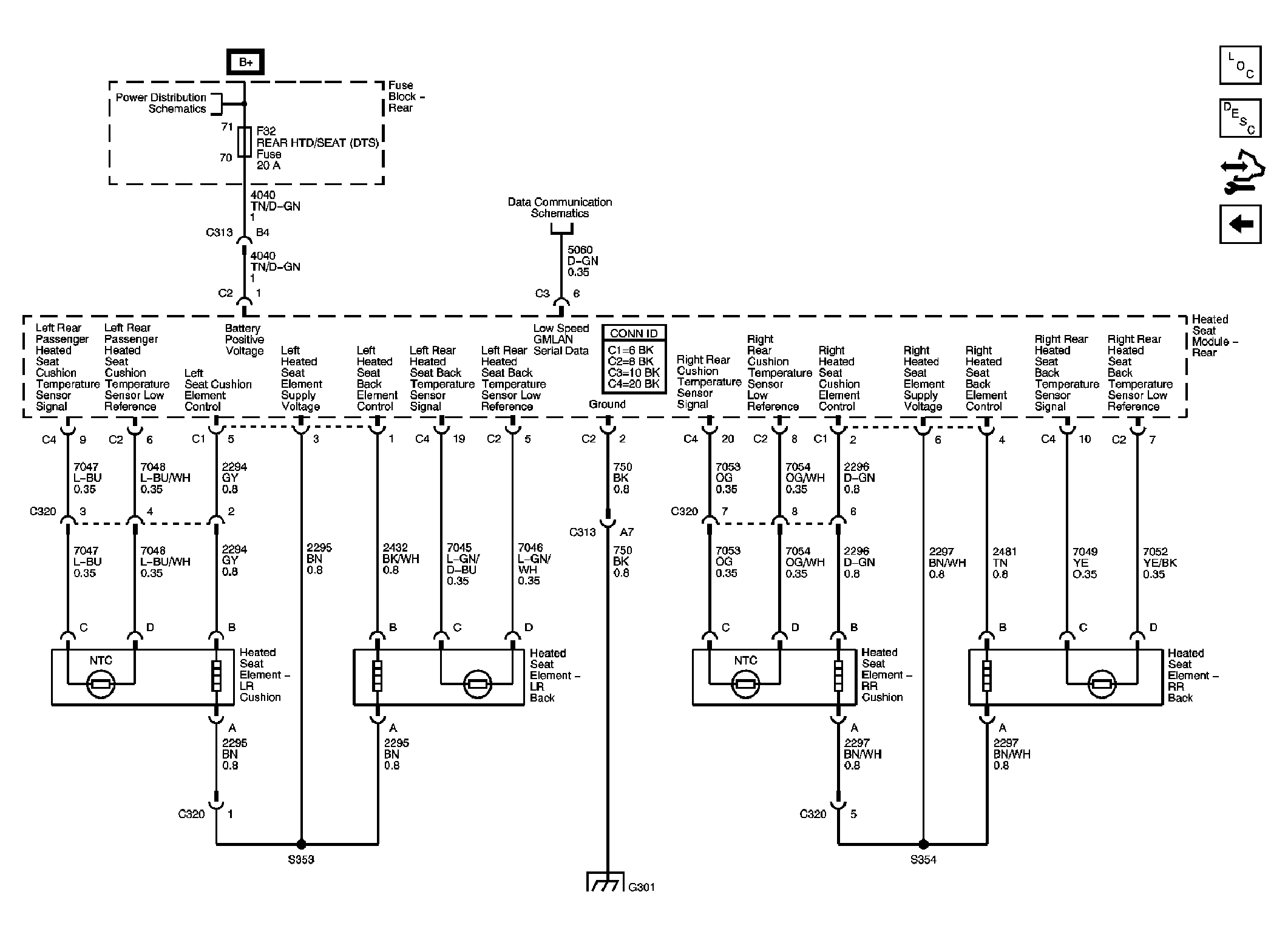

Fig 9: Heated Seat Elements Schematics - w/KA6

Courtesy of GENERAL MOTORS CORP.
