Seat Back Ventilation Duct Replacement

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

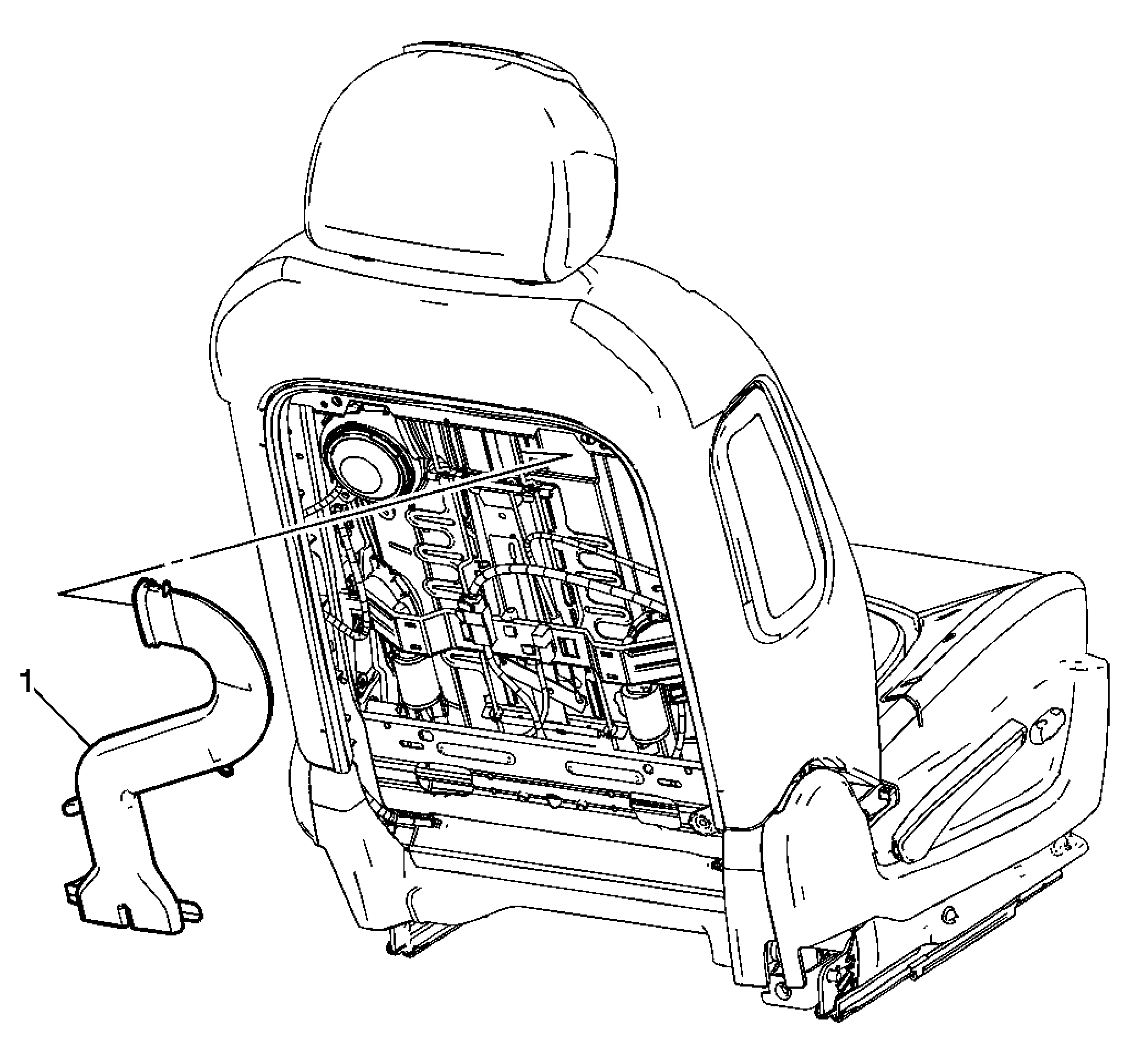

Fig 1: Duct Replacement - Ventilation - Seat Back
GM1596317Courtesy of GENERAL MOTORS CORP.
Duct Replacement - Ventilation - Seat Back

Callout Component Name
Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the front seat back cushion rear finish panel. Refer to Front Seat Back Panel Replacement .
1 Duct, Seat Back Ventilation
