Heated Seat Switch Replacement - Rear

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

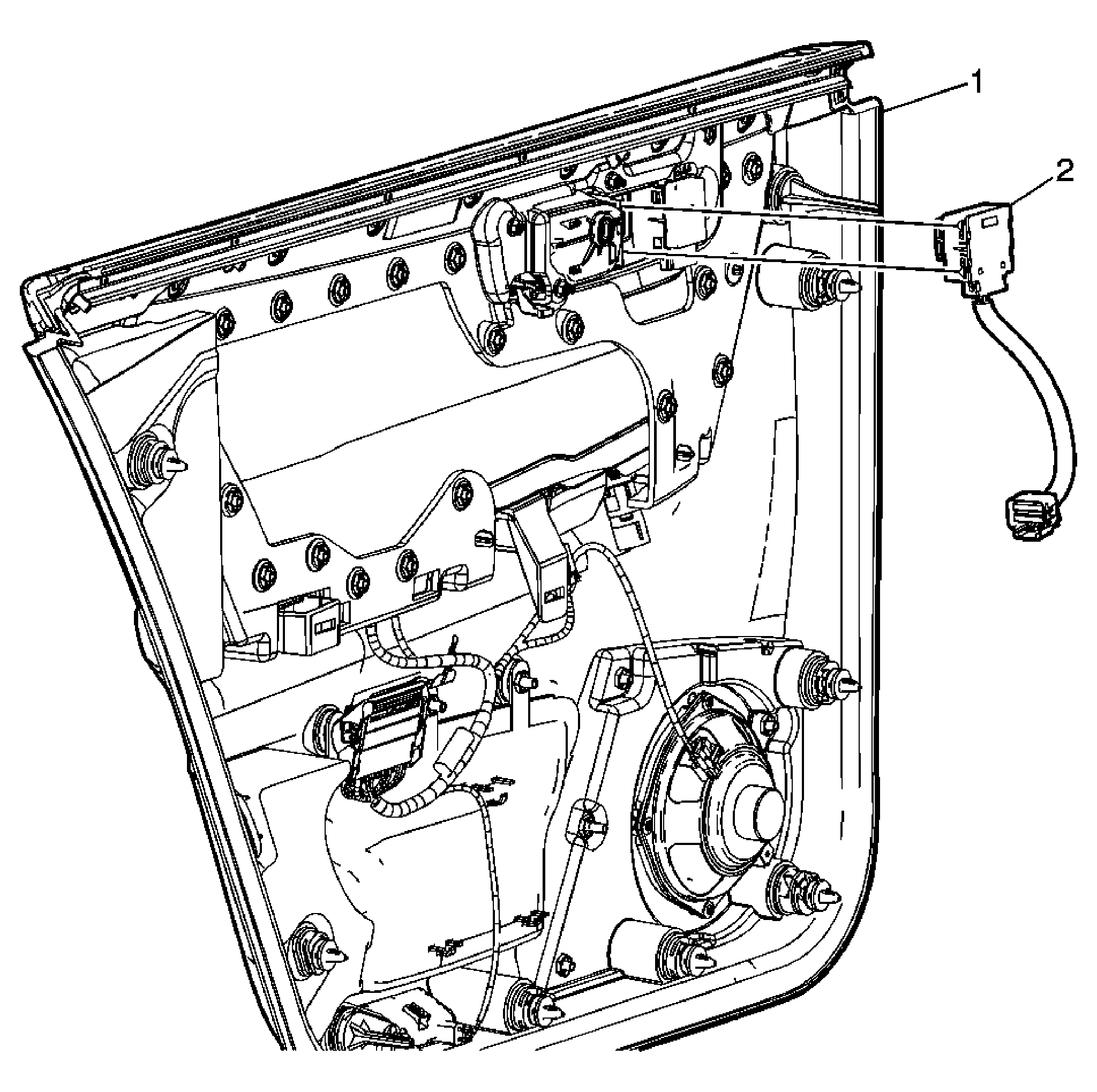

Fig 1: Heated Seat Switch Replacement - Rear
GM1571702Courtesy of GENERAL MOTORS CORP.
Heated Seat Switch Replacement - Rear

Callout Component Name
Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the rear side door trim panel. Refer to Rear Side Door Trim Panel Replacement .
1 Trim Assembly, Rear Side Door
2 Switch, Rear Seat Heater
Tip:  Disconnect the electrical connector.
