Passenger Seat Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

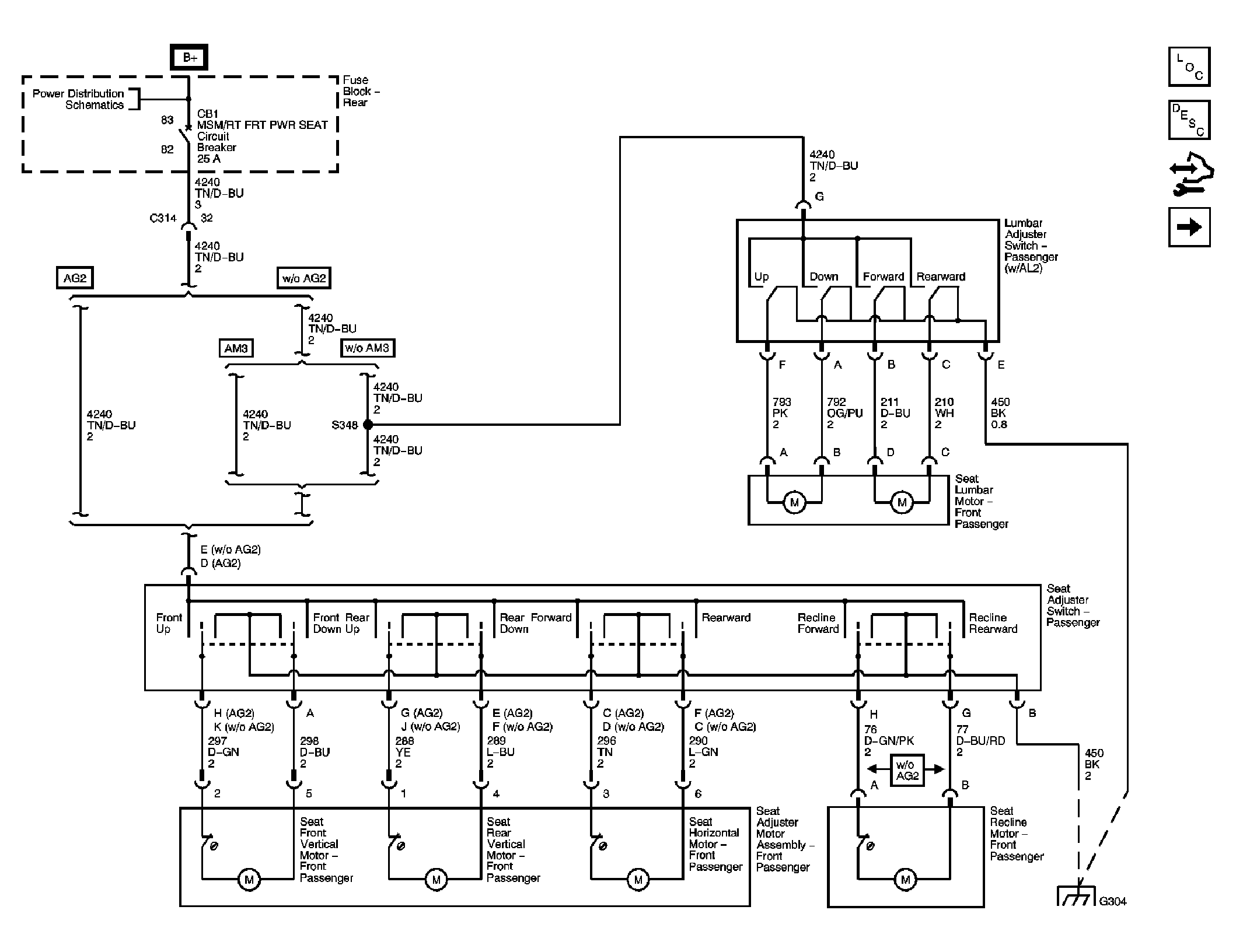

Fig 1: Passenger Seat Schematic w/o A45
GM1759401Courtesy of GENERAL MOTORS CORP.

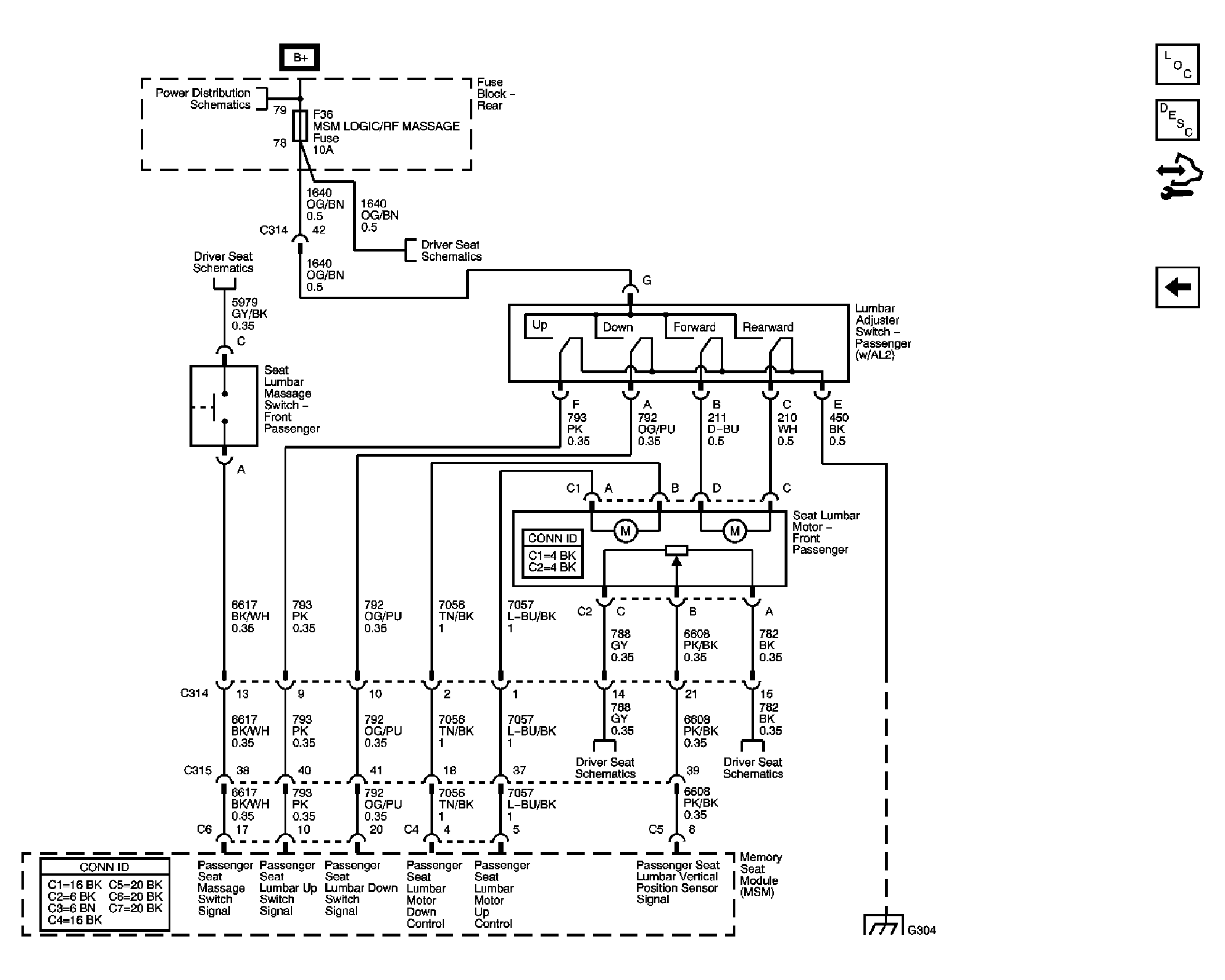

Fig 2: Passenger Seat Schematic w/AM3
GM1759404Courtesy of GENERAL MOTORS CORP.
